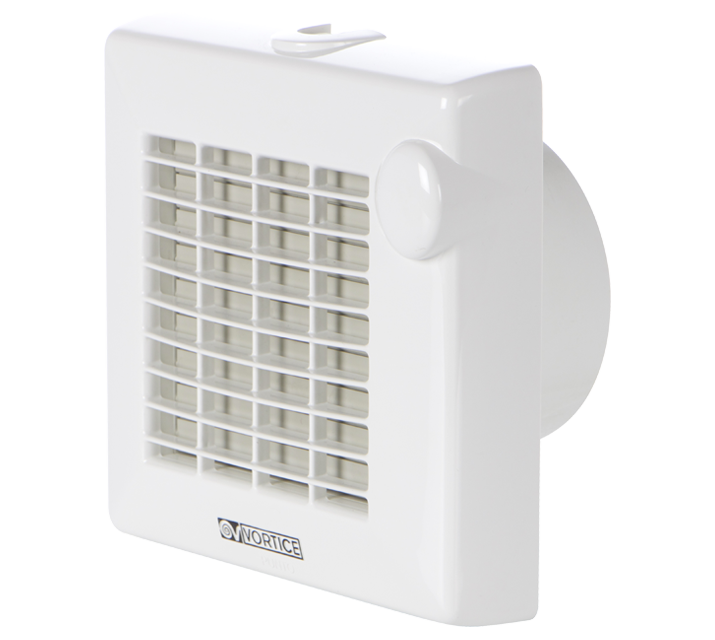

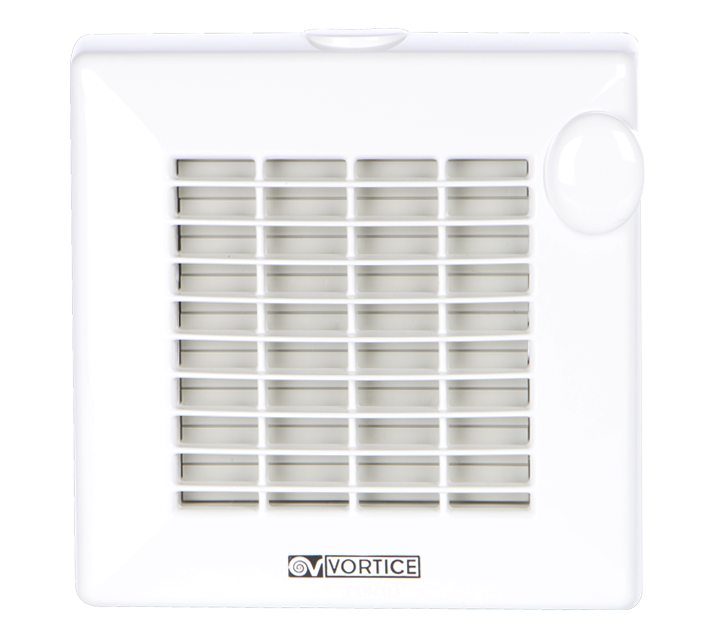

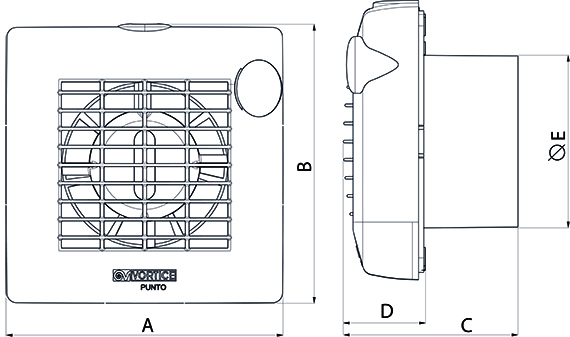

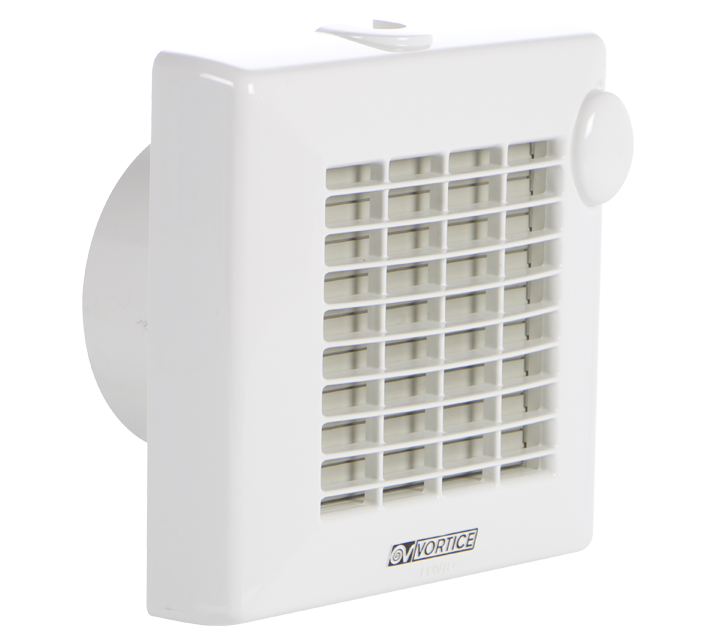

M 100/4" AT HCS LL

Description

• Material: UV resistant plastic (prevents ageing caused by exposure to sunlight).
• Nominal diameter 100 mm.

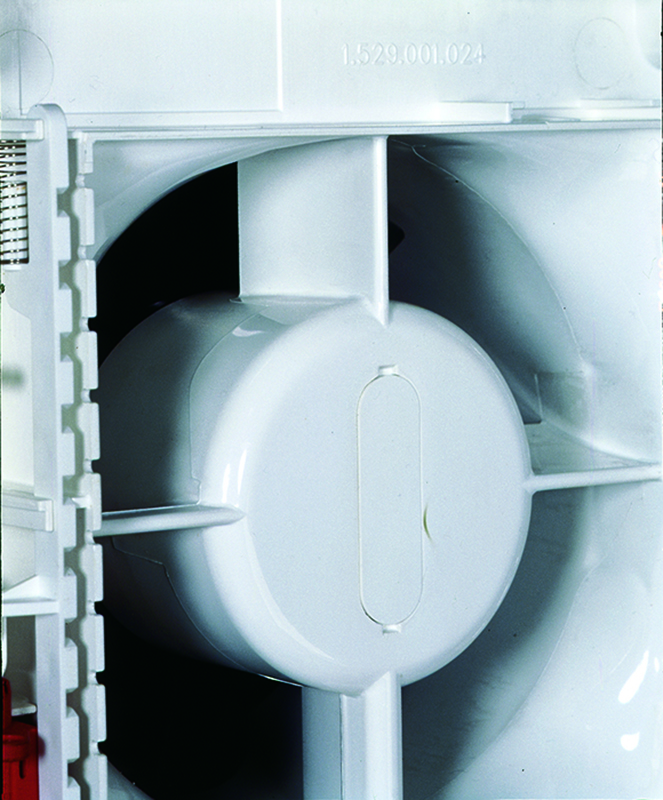

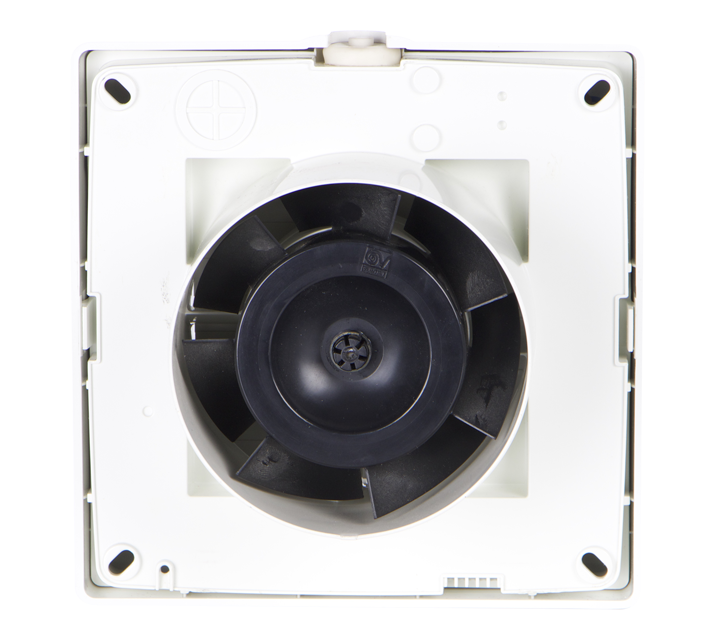

• Motor protected against thermal overload, with shaft turning in ball bearings (LL),coupled to screw type thermoplastic impeller with wing profile blades.
• Maximum air flow: 90 m3/h.

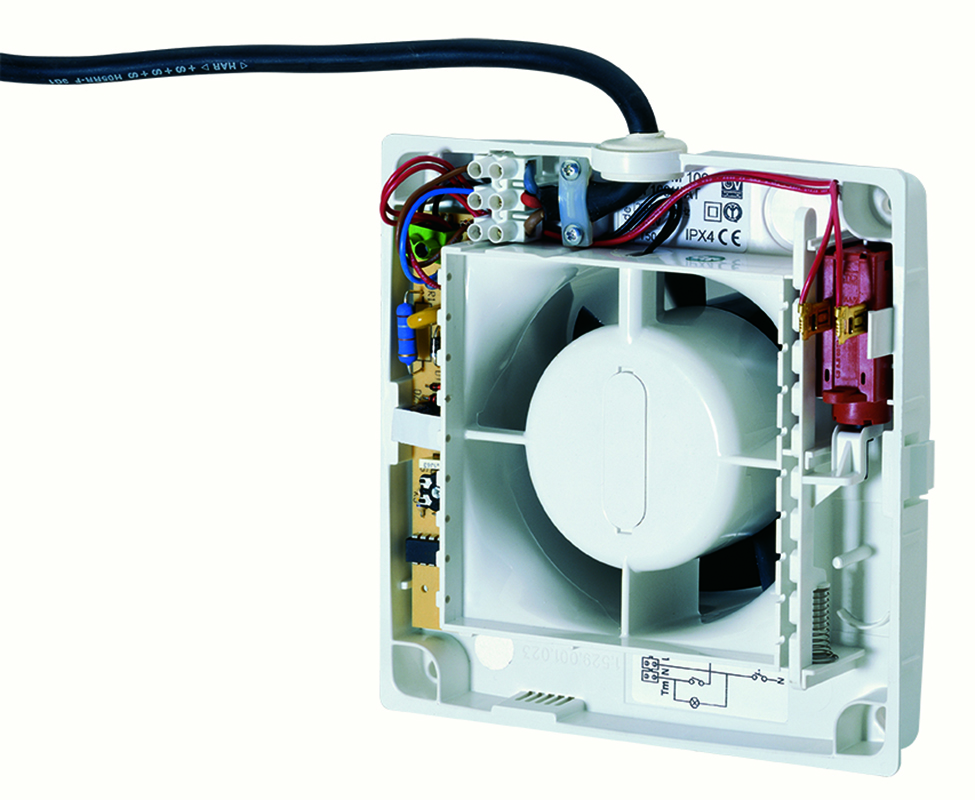

• Electronic pcb with humidostat function piloted by RH sensor (4 preset thresholds: 60%, 70%, 80%, 90%, selectable during installation), designed to switch on the fan automatically. The pcb incorporates an electronic timer that shuts off the motor automatically when relative humidity returns below the threshold value. The timer setting is selectable during installation in the range 3’-20’ (default setting 3’).

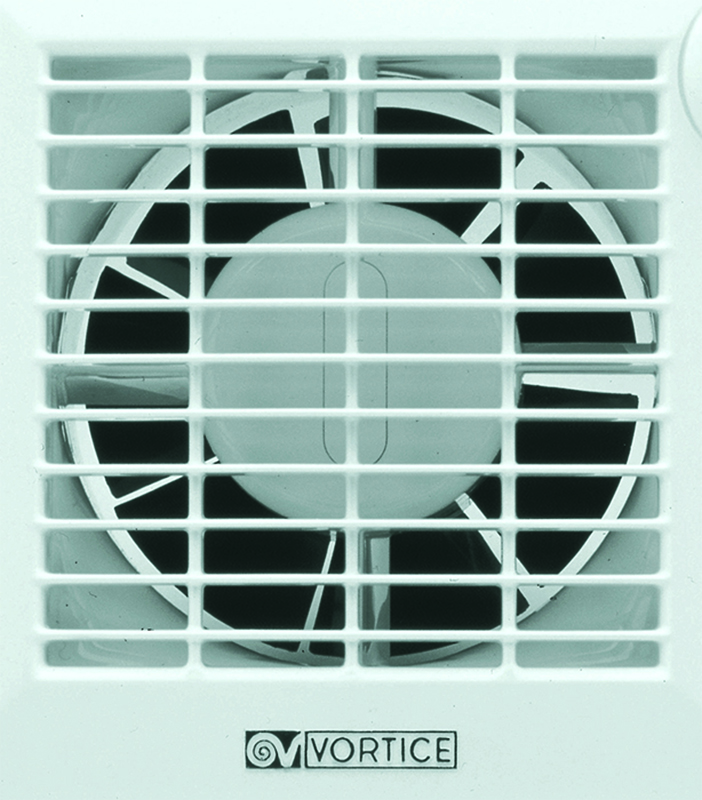

• Equipped with system by which the louvres of the grille are opened and closed automatically.

Read full descriptionClose description

Certifications

CE
Download
EAC
CB TEST CERTIFICATE

Technical Data Sheet

Frequency (Hz)

50
Insulation class

II°
IP

X4
Max absorbed current (A)

0,1
Max absorbed power (W)

18
Max ambient temperature for continuous operation (°C)

50
Nominal diameter (mm)

100
Ø Discharge hole (mm)

99

Voltage (V)

220-240
Weight (Kg)

0,6

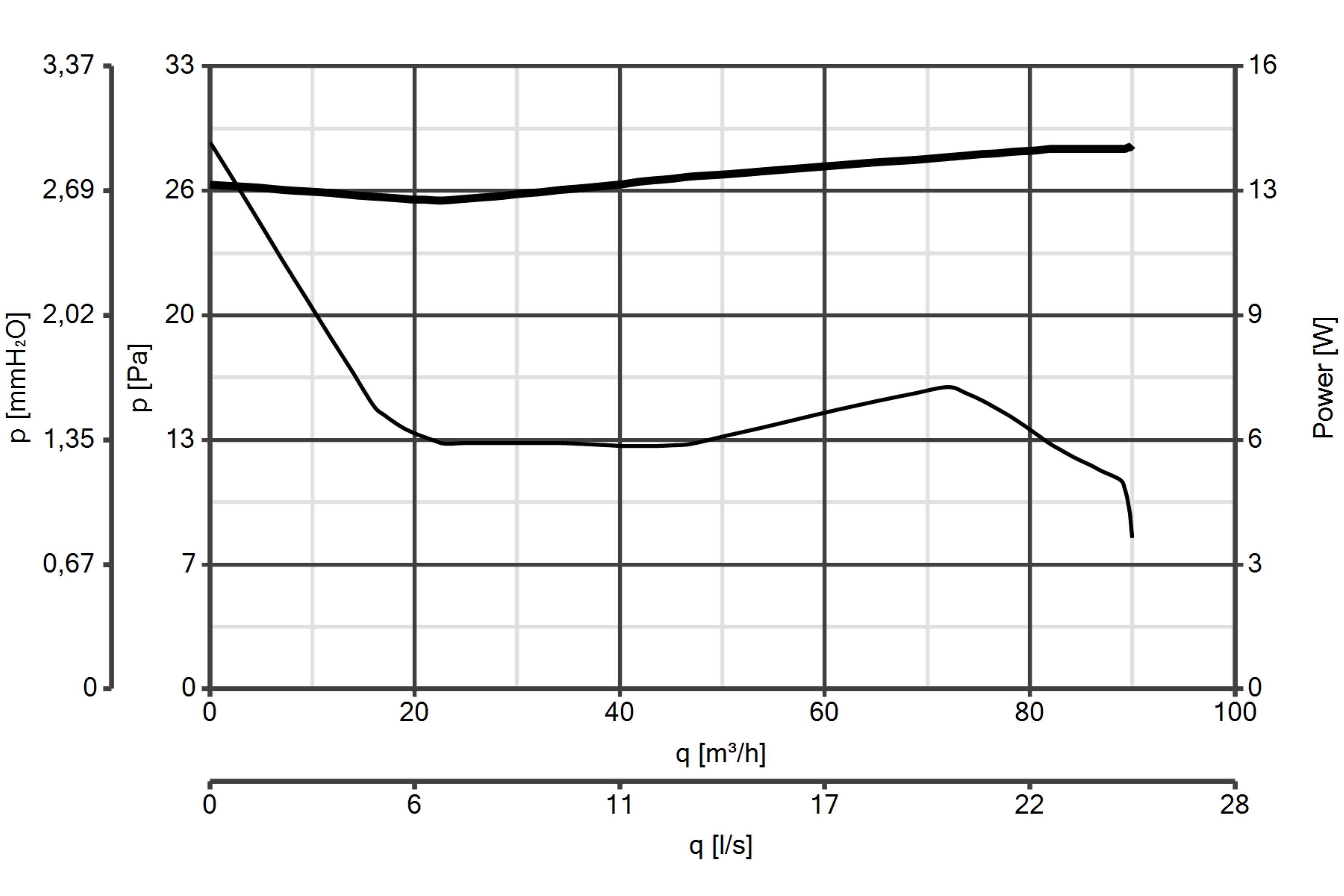

Max airflow (l/s)

25
Max airflow (m³/h)

90
Max pressure (mmH2O)

3
Max pressure (Pa)

29
RPM

2300
Sound pressure Lp [dB (A)] at 3 m

37,5

Supplier's name or trade mark

Vortice
Specific Energy Consumption (SEC) class in temperate climate zone

NA
Specific Energy Consumption (SEC) class in temperate climate zone [kWh/m2y]

-6,6
Specific Energy Consumption class SEC in cold climate zone [kWh/m2y]

-20,0
Specific Energy Consumption class SEC in warm climate zone [kWh/m2y]

1,0
Declared type

UVR-U: unidirezionale
Type of drive

NA
Type of heat recovery system HRS

assente
Thermal efficiency of heat recovery at reference airflow [%]

NA
Max airflow [m3/h]

89
Fan drive electric power input, including any motor control equipment, at maximum flow rate [W]

13,7
Sound power LWA [dB(A)]

58
Reference airflow [m3/s]

0,0173
Reference ? pressure [Pa]

15
SPI [W/(m3/h)]

0,21348
Control factor CTRL

1
Control type

manuale
Max internal leakage rate [%]

NA
Max external leakage rate [%]

NA
Mixing rate

NA
Position and description of visual filter warning

NA
Airflow sensitivity to pressure variations at + 20 Pa and – 20 Pa

NA
Indoor/outdoor air tightness [m3/h]

NA
Annual electricity consumption (AEC) [kWh electricity/y]

294
AHS temperate annual energy saved [kWh primary energy/y]

1397
AHS cold annual energy saved [kWh primary energy/y]

2732
AHS warm annual energy saved [kWh primary energy/y]

632
