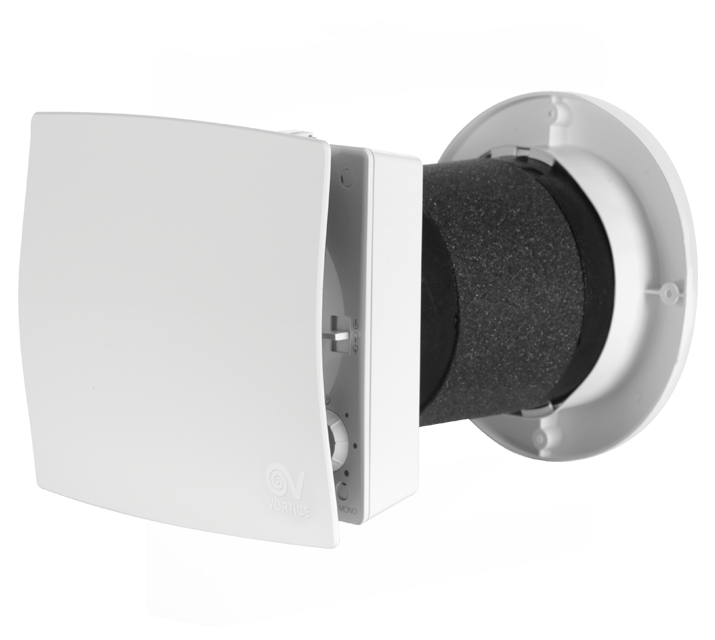

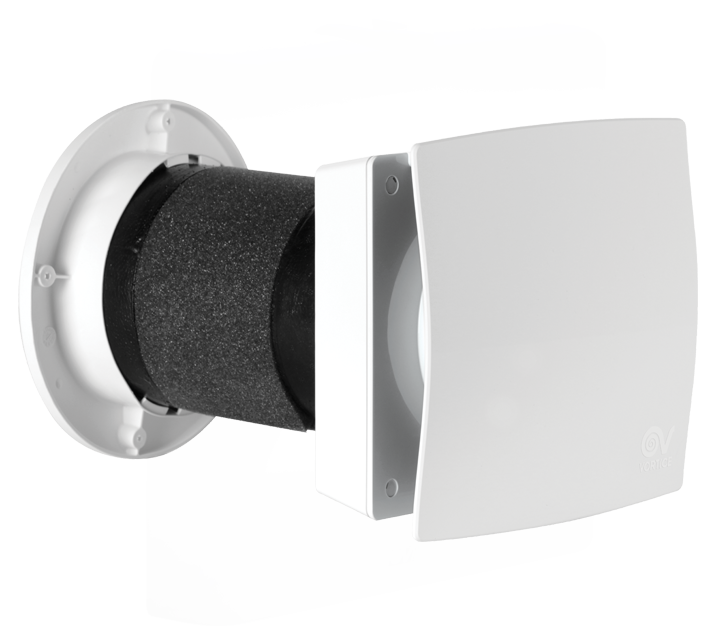

Description
• Plastic (PPE) enclosure
• Inner panel in plastic polymer (ABS), lined with insulating material.
• Low voltage ball bearing EC (brushless) motor.
• 5 speeds corresponding to differents airflows levels: 10 m3/h; 16 m3/h; 22 m3/h; 30 m3/h and 40 m3/h.

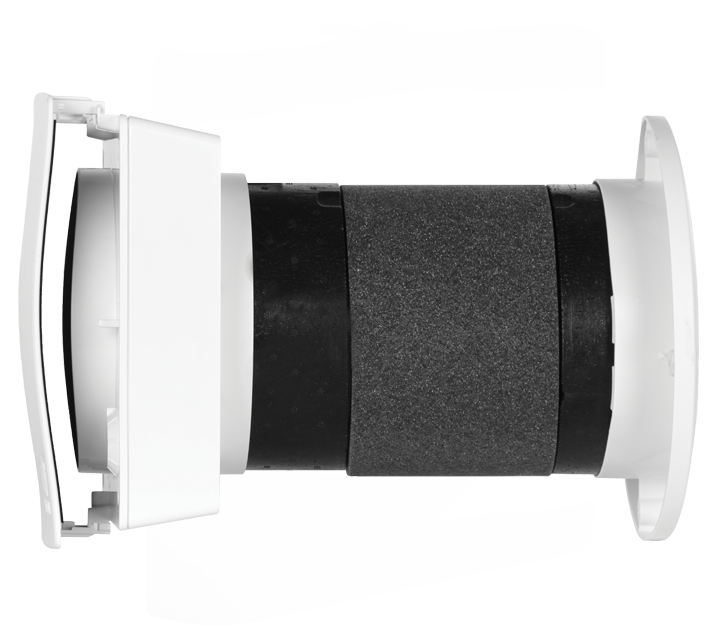

• High efficiency ceramic heat exchanger.

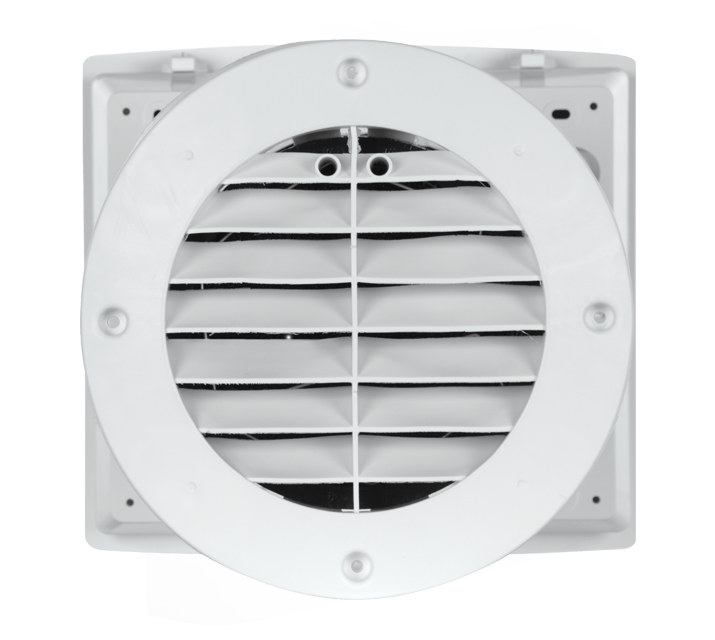

• Rubber made grille, with easy mount from inside.
• Mesh to be inserted at installation in the duct together with the external grille
• Nominal hole diameter: 160 mm
• Integrated washable G3 filter, easily accessible for maintenance.
• On-board commands for switching on/off and selection of operation mode.
• Compatible with wall wiring connection
• Electronic board with integrated power supply.
• Filter status indicator LED.
• 3 operation modes:
o Ventilation with heat recovery;
o Extraction;
o Intake.
• Possibility of automatic ventilation controlled by (optional) sensors.
• Inner panel in plastic polymer (ABS), lined with insulating material.
• Low voltage ball bearing EC (brushless) motor.
• 5 speeds corresponding to differents airflows levels: 10 m3/h; 16 m3/h; 22 m3/h; 30 m3/h and 40 m3/h.
• High efficiency ceramic heat exchanger.
• Rubber made grille, with easy mount from inside.
• Mesh to be inserted at installation in the duct together with the external grille
• Nominal hole diameter: 160 mm
• Integrated washable G3 filter, easily accessible for maintenance.
• On-board commands for switching on/off and selection of operation mode.
• Compatible with wall wiring connection
• Electronic board with integrated power supply.
• Filter status indicator LED.
• 3 operation modes:
o Ventilation with heat recovery;
o Extraction;
o Intake.
• Possibility of automatic ventilation controlled by (optional) sensors.
Technical Data Sheet
-
Filter classG3
-
Frequency (Hz)50
-
Insulation classII°
-
IPX4
-
Max absorbed current (A)0.05
-
Max absorbed current at Max speed (A)0.05
-
Max absorbed current at Min speed (A)0.015
-
Max absorbed power (W)5.0
-
Max absorbed power at Max speed (W)5.0
-
Nominal diameter (mm)160
-
Power absorbed at 1st speed (W)1.0
-
Voltage (V)220-240
-
Weight (Kg)2.55
-
Airflow at 1st speed (l/s)2.77
-
Airflow at 1st speed (m³/h)10.0
-
Max airflow (l/s)11.3
-
Max airflow (m³/h)41
-
Max airflow at Max speed (l/s)11.3
-
Max airflow at Max speed (m³/h)41
-
Max pressure (mmH2O)4.1
-
Max pressure (Pa)40.6
-
Max pressure at Max speed (mmH20)4.1
-
Max pressure at Max speed (Pa)40.6
-
Max thermal efficiency (%)90
-
Pressure at 1st speed (mmH20)0.635
-
Pressure at 1st speed (Pa)6.22
-
Sound pressure at 3m at Max speed calculated in free field Lp [dB(A)]23.6
-
Sound pressure at 3m at Min speed calculated in free field Lp [dB(A)]<16
-

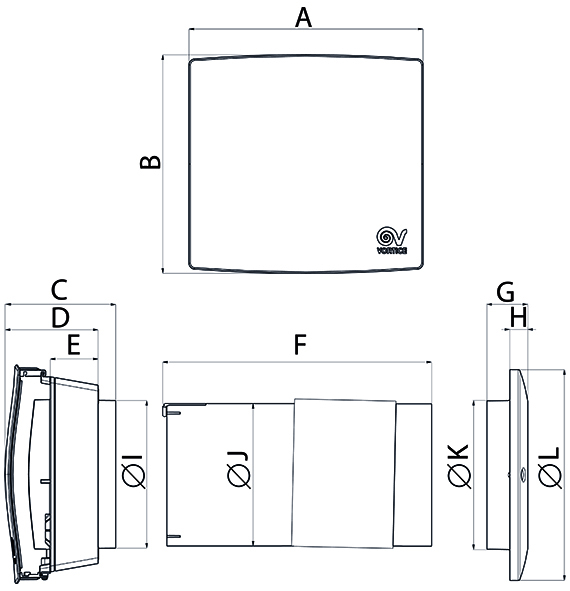

Size A (mm)240
-
Size B (mm)224
-
Size C (mm)113
-
Size D (mm)95
-
Size E (mm)49
-
Size F (mm)275
-
Size G (mm)42
-
Size H (mm)18
-
Size I (mm)ø 151
-
Size J (mm)ø 146
-
Size K (mm)ø 153
-
Size L (mm)ø 216
