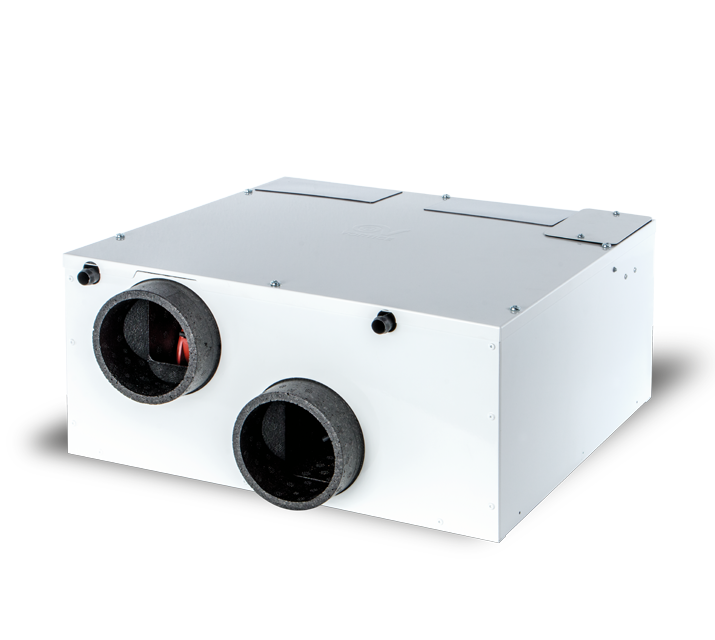

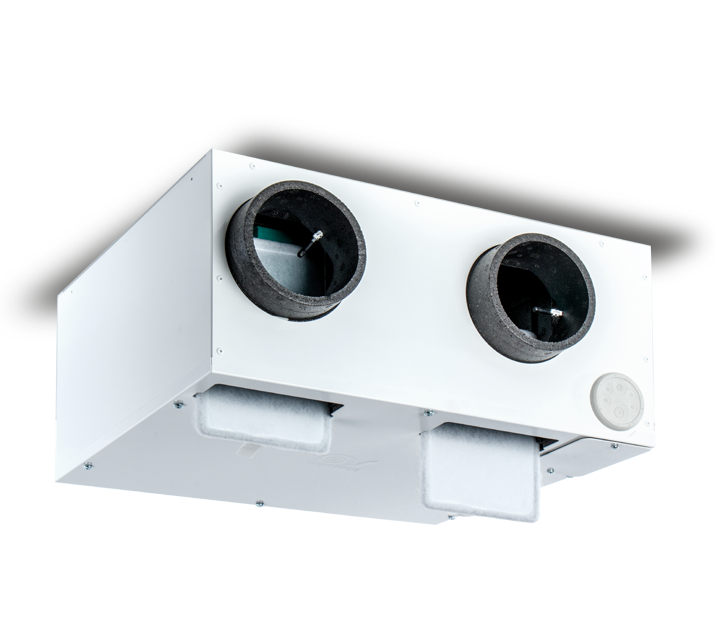

VORT INVISIBLE MINI TOP

• Casing made of white painted sheet steel, integrating holes for galvanized steel sheet fixing brackets, supplied as standard and necessary for ceiling installation; internal components made of expanded polypropylene (EPP).
• Inlet and outlet ports for duct connection compatible with nominal diameters of 100 mm and 125 mm.
• 2 x EC brushless motors, each coupled to a forward curved centrifugal impeller; 3 independently adjustable speeds controlled by advance electronic suite also capable of malfunctions monitoring.
• High-efficiency, plastic (PS) made counter-flow heat exchanger.
• Automatic mechanical by-pass, 100% filtered.
• Relative Humidity sensor for the automatic speed regulation.
• Automatic defrosting to prevent icing on the heat exchanger.
• 2 x ISO COARSE 45% (G3) filters, respectively on extraction and supply ports, supplied as standard.
ISO COARSE 65% (G4) for extraction port, ePM10 50% (M5), ePM1 55% (F7) and ePM1 80% (F9) filters for supply, available as optional.
• Wired remote control with LCD display for:
• Product settings.
• Product start/stop.
• The manual speed selection, among those previously set.
• The setting of the "BOOST ROOM LIGHT" function: if connected to the switching on of the light in the bathroom the product will automatically switch to Vmax.
• The display of the selected operating speed.
• The display of by-pass automatic activation.
• The display of defrosting procedure status.
• The display of pre-heater automatic activation (available as optional), if installed.
• The setting of automatic operation at Vmax, if combined with a presence sensor (PIR).
• The display of clogged filters status.
• The display of possible error codes.
• Plastic made condensate collection vessel equipped with overflow protection sensor.
