Description

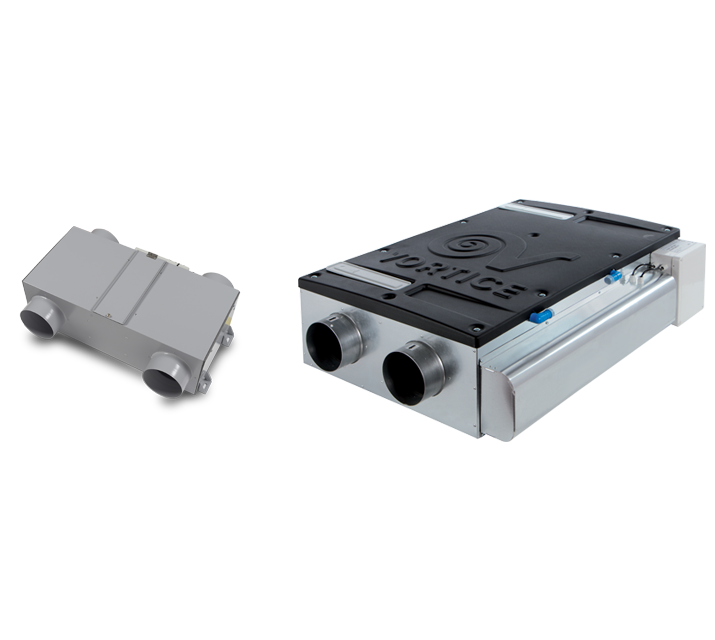

• When used as a traditional Heat Recovery Unit, recommended operating mode when the house is occupied, VORT HA PHANTOM 200 grants the effective, quiet, low cost indoor ventilation, reducing relative humidity and CO2 concentrations. When instead operated as air purifier, suggested running mode when the house is unoccupied thanks to its patented filtering system, VORT HA PHANTOM 200 dramatically reduces concentration of live bacteria, NOX, VOC and CO, at the same time halving usual operating costs. .
• VORT HA PHANTOM 200 BP is equipped with:
o 2 M5 filters effective against PM10 usually present in fresh outdoor air (the F7 filter, available as optional, on supply grants an even more effective action).
o A patented filter effective against bacteria, NOX, VOC and CO.
• Noise levels, consumptions and performances remain the same of stand alone VORT HRI PHANTOM 350 BP.
Read full descriptionClose description

Technical Data Sheet

  • Frequency (Hz)
    50
  • Max absorbed current (A)
    1,4
  • Max absorbed power (W)
    165
  • Max ambient temperature for continuous operation (°C)
    50
  • Nominal diameter (mm)
    150
  • Voltage (V)
    230
  • Weight (Kg)
    44
  • Breakout sound power LWA [dB(A)]
    51,0
  • Breakout sound pressure at 3m at Max speed calculated in free field Lp [dB(A)]
    30,5
  • Max airflow (l/s)
    97,0
  • Max airflow (m³/h)
    350
  • Max pressure (mmH2O)
    58,0
  • Max pressure (Pa)
    568
  • Sound power at exhaust inlet LWA [dB(A)]
    37,8
  • Sound power at supply outlet LWA [dB(A)]
    37,2
  • Sound pressure at 3m at extraction at Max speed calculated in free field Lp [dB(A)]
    17,3
  • Sound pressure at 3m at supply at Max speed calculated in free field Lp [dB(A)]
    16,7
  • Size A (mm)
    714
  • Size B (mm)
    238
  • Size C (mm)
    499
  • Size D (mm)
    740
  • Size E (mm)
    288
  • Size F (mm)
    1287
