Technical Data Sheet

  • Absorbed current at 230 V (A)
    0,82
  • Frequency (Hz)
    50
  • Insulation class
  • IP
    X2
  • Max absorbed power (W)
    110
  • Nominal diameter (mm)
    125
  • Voltage (V)
    230
  • Weight (Kg)
    16,6
  • Breakout sound power LWA [dB(A)]
    53,2
  • Breakout sound pressure at 3m at Max speed calculated in free field Lp [dB(A)]
    32,6
  • Max airflow (l/s)
    64
  • Max airflow (m³/h)
    230
  • Max pressure (mmH2O)
    27
  • Max pressure (Pa)
    265
  • RPM
    2800
  • Sound power at exhaust inlet LWA [dB(A)]
    49,2
  • Sound power at supply outlet LWA [dB(A)]
    68,3
  • Sound pressure at 3m at extraction at Max speed calculated in free field Lp [dB(A)]
    28,6
  • Sound pressure at 3m at supply at Max speed calculated in free field Lp [dB(A)]
    47,7

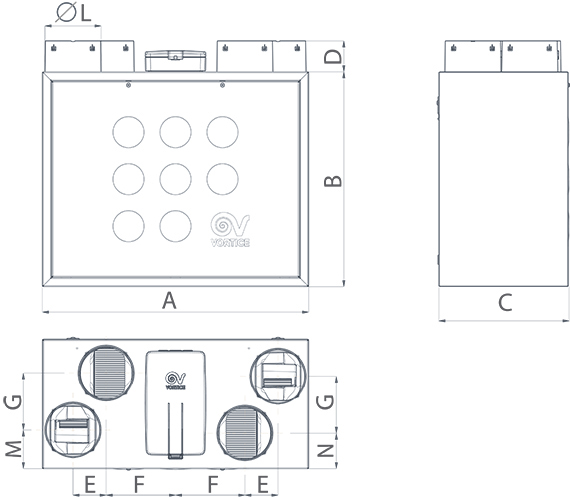

  • Size A (mm)
    595
  • Size B (mm)
    480
  • Size C (mm)
    292
  • Size D (mm)
    69
  • Size E (mm)
    74
  • Size F (mm)
    155
  • Size G (mm)
    127
  • Size L (mm)
    Ø 125
  • Size M (mm)
    86,5
  • Size N (mm)
    79,5
