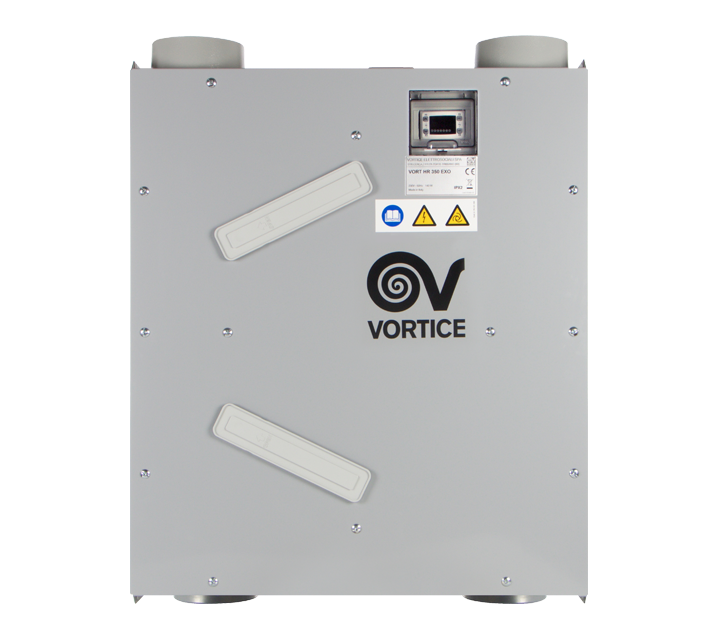

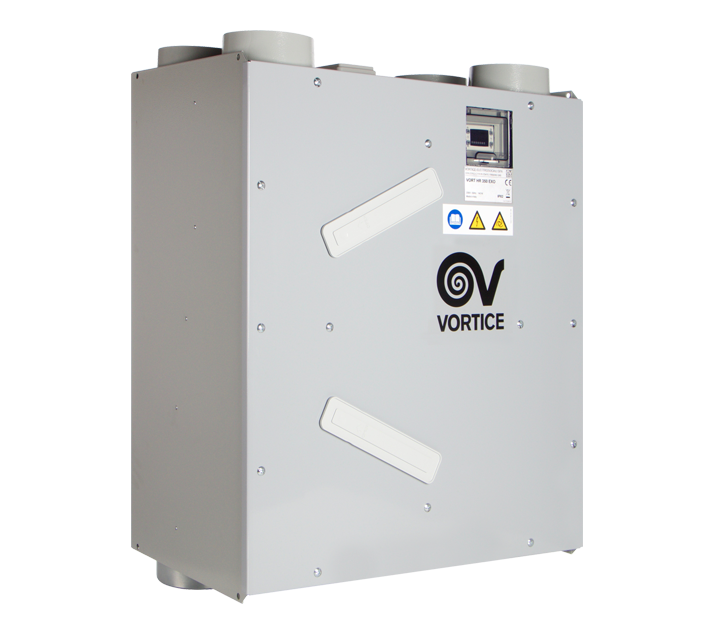

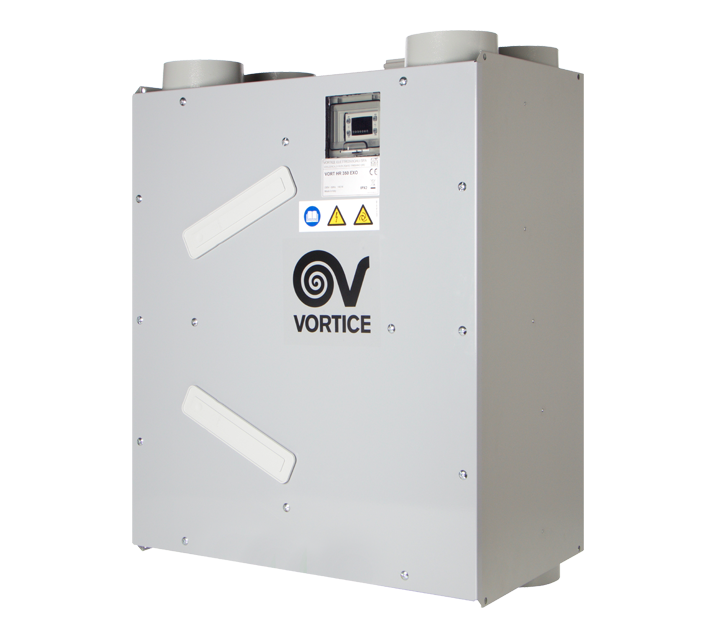

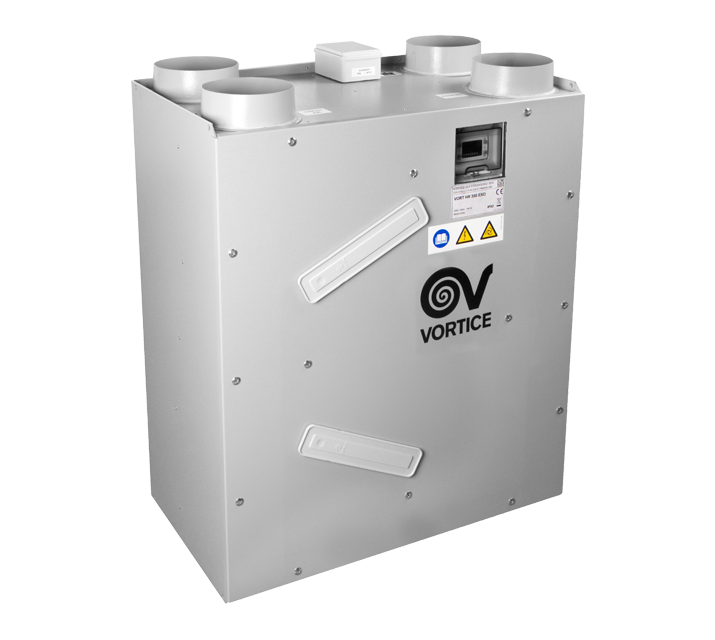

VORT HR 350 EXO

Description

• Zinc-coated pressed steel enclosure; interior lined with sound-absorbent and fire-resistant material (DIN 13501)
• Duct connection ports of nominal diameter 150 mm.
• 2 x EC brushless motor with shaft turning in ball bearings, each coupled to a backward curved centrifugal impeller; 3 speeds, selectable independently at the moment of installation.
• Air flow settable between 115 m3/h and 350 m3/h.
• Ultra high-efficiency counter-flow type heat exchanger fashioned from moulded plastic (PS).
• Automatically activated system designed to prevent icing of the heat exchanger.
• 2 x F5 filter (alternatively, option of F7 filter on outlet duct)
• Blocked filter status monitoring system
• Brackets for wall-mounted installation

Read full descriptionClose description

Frequency (Hz)

50
Insulation class

I°
IP

X2
Max absorbed current (A)

1,2
Max absorbed power (W)

140
Max ambient temperature for continuous operation (°C)

50
Voltage (V)

230
Weight (Kg)

38
Breakout sound power LWA [dB(A)]

56,5

Breakout sound pressure at 3m at Max speed calculated in free field Lp [dB(A)]

36,0
Max airflow (l/s)

97,2
Max airflow (m³/h)

350
Max pressure (mmH2O)

40
Max pressure (Pa)

392
Sound power at exhaust inlet LWA [dB(A)]

31,2
Sound power at supply outlet LWA [dB(A)]

53,9
Sound pressure at 3m at extraction at Max speed calculated in free field Lp [dB(A)]

10,7
Sound pressure at 3m at supply at Max speed calculated in free field Lp [dB(A)]

33,4

Ø (mm)

150

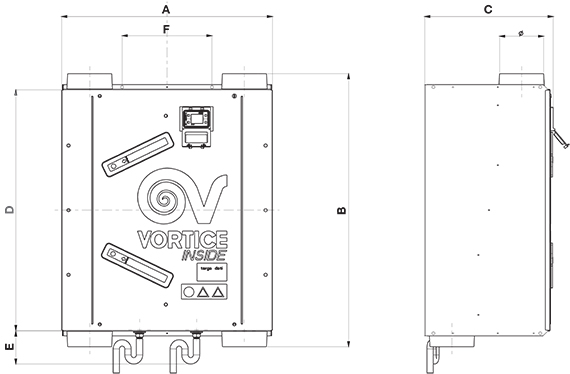

Size A (mm)

704
Size B (mm)

913
Size C (mm)

429
Size D (mm)

804
Size E (mm)

100
Size F (mm)

300
