Description
• Material: plastic resin able to withstand aging induced by exposure to sunlight (UV-resistant), and formulated with an antistatic compound to prevent accumulation of dust.
• Nominal diameter 400 mm
• 3 speed asynchronous motor with thermal overload protection and shaft turning in self-aligning and self-lubricating bushings, coupled to oscillating mechanism generating movement through an angle of approx 90° maximum
• Motor housing equipped with hinge and clamp knob for adjustment of tilt angle.
• On/off switch and speed selector (rotary control incorporated into rear of motor housing)
• Equipped with stretch spiral power cord including plug.
• Maximum air flow 4,000 m3/h
• IMQ SAFETY and IMQ PERFORMANCE certifications
• Nominal diameter 400 mm
• 3 speed asynchronous motor with thermal overload protection and shaft turning in self-aligning and self-lubricating bushings, coupled to oscillating mechanism generating movement through an angle of approx 90° maximum
• Motor housing equipped with hinge and clamp knob for adjustment of tilt angle.
• On/off switch and speed selector (rotary control incorporated into rear of motor housing)
• Equipped with stretch spiral power cord including plug.
• Maximum air flow 4,000 m3/h
• IMQ SAFETY and IMQ PERFORMANCE certifications
Technical Data Sheet
-
Frequency (Hz)50-60
-
Insulation classII°
-
Max absorbed current (A)0,19
-
Max absorbed power (W)40
-
Max absorbed power at Max speed (W)40
-
Voltage (V)220-240
-
Weight (Kg)5,4
-
giri_minuto1145
-
Max airflow (m³/h)4000
-
Max airflow (m³/min)66,67
-
Max flow speed (m/s)1,61
-
RPM1145
-
Service value (m³/min)/W1,667
-
Sound power Lw [dB(A)]57,2
-

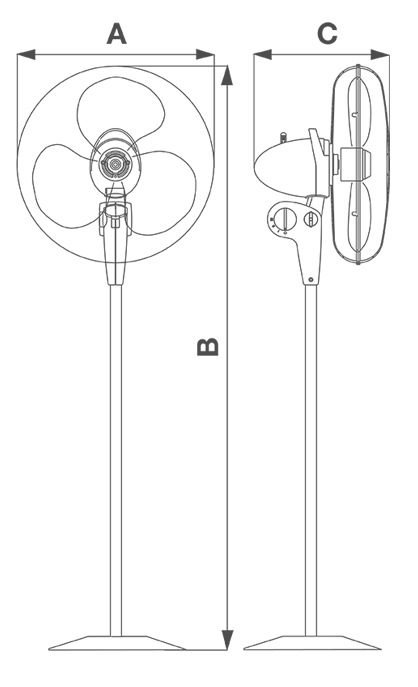

Size A (mm)Ø 458
-
Size B (mm)min 1480 max 1993
-
Size C (mm)420
