Description

• Steel rim, green painted.
• Front and rear grids made of steel wire, grey painted.
• Steel tubular support, grey painted, including 4 rubber anti-vibrations feets.
• Nominal diameter: 500 mm.
• 3 speed electric induction motor with starting capacitor, thermally insulated and equipped with high efficiency long lasting ball bearings.
• Control unit including a rotary switch, near the rear grid, allowing the product switching on/off and the speed selection.
• Two thermoplastic resin knobs, black colour, allowing a 360° horizontal regulation and product locking.
• Supply cord, length 190 cm, equipped with plug (shuko).
Read full descriptionClose description
Accessorio_5
Accessorio_6
Accessorio_7

Technical Data Sheet

  • Frequency (Hz)
    50
  • Insulation class
  • Max absorbed current at Max speed (A)
    0,48
  • Max absorbed current at Min speed (A)
    0,38
  • Max absorbed power at Max speed (W)
    110
  • Power absorbed at 1st speed (W)
    85
  • Voltage (V)
    220-240
  • Weight (Kg)
    6,5
  • Max airflow (m³/h)
    8100
  • Max airflow (m³/min)
    135
  • Max flow speed (m/s)
    3,43
  • RPM
    1210
  • Service value (m³/min)/W
    1,227
  • Sound power at Min speed LWA [dB(A)]
    62,6
  • Sound power at Min speed LWA [dB(A)]
    67,5
  • Sound pressure at 3m at Max speed calculated in free field Lp [dB(A)]
    49,9
  • Sound pressure at 3m at Min speed calculated in free field Lp [dB(A)]
    45,1

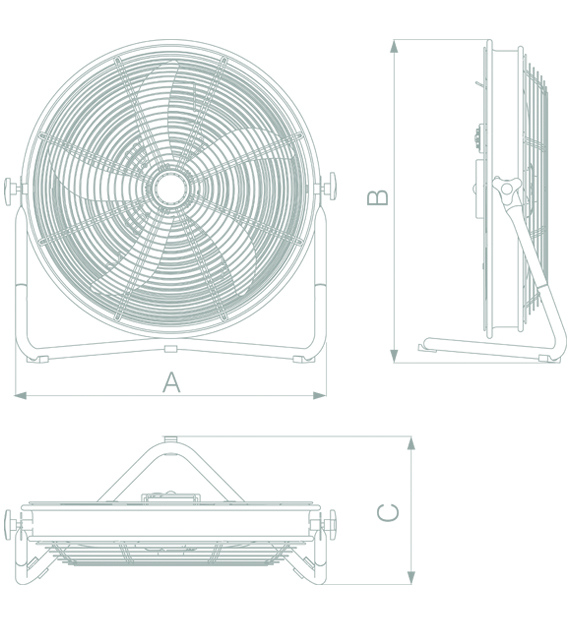

  • Size A (mm)
    650
  • Size B (mm)
    610
  • Size C (mm)
    280
Accessorio_8
