Code 21620

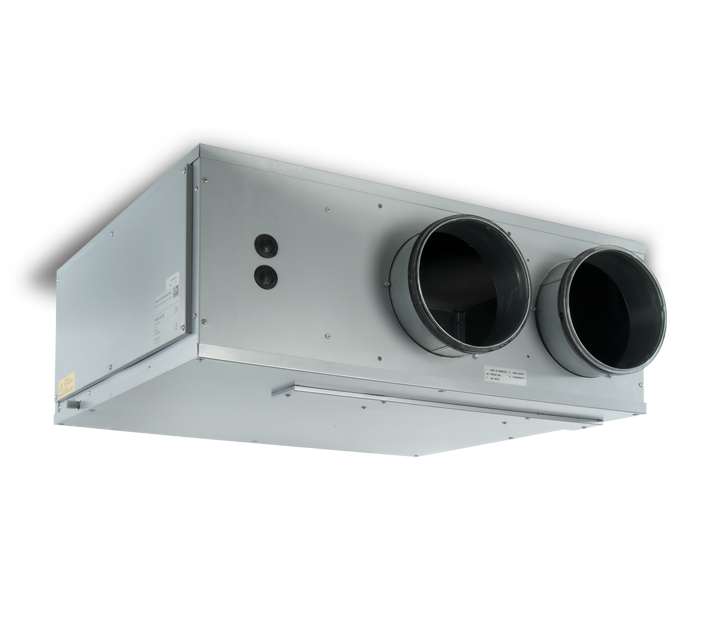

HRDS 30 R DC
Documentation
70_EN_21620_Libretti_Istruzioni_5571084197__29-04-2019_151475
70_EN_21620_Libretti_Istruzioni_5671084456__23-02-2024_183778
Prodotti
ACCESSORIES AND COMPONENTS
Description
Read full description
Close description
Technical Data Sheet
Technical and performance data

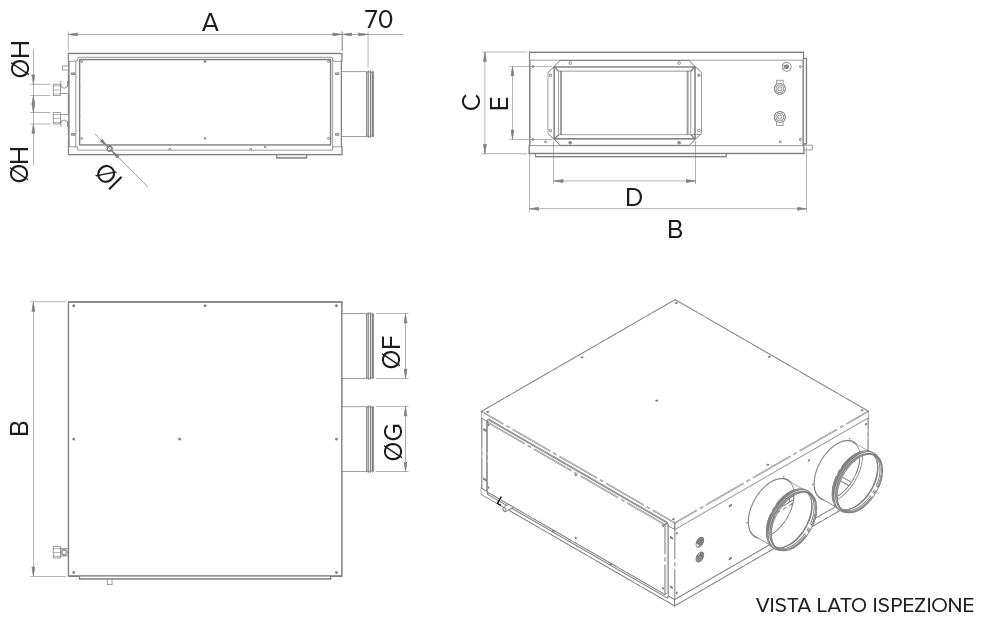

Dimensions
Cooling capacity provided by the compressor (kW)
0,93
Cooling capacity provided by the water coil (kW)
0,53
IP
20
Max absorbed current (A)
3,2
Nominal absorbed power of recirculation fan (kW)
0,1
Number of poles
1
Thermal power at pump side (W)
620
Voltage (V)
230
Weight (Kg)
42
Dehumidification capacity (l/24 hr)
22
Max airflow (m³/h)
300
Nominal pressure drop of hydraulic circuit (kPa)
4,5
Outdoor air nominal airflow (m³/ h) :
130
Pressure loss on VMC side (Pa) :
31
Sound pressure Lp [dB (A)] at 3 m
37
Water flow rate (m³/h) :
0,15
Size A (mm)
690
Size B (mm)
690
Size C (mm)
270
Size D (mm)
350
Size E (mm)
180
Size F (mm)
Ø 160
Size G (mm)
Ø 160
Size H (mm)
Ø 12,7
Size I (mm)
Ø 12
Interested?
If you are interested in this product, contact us or locate your nearest Vortice dealer.
Contact us
Find agency
Documentation
You can see all the documentation relating to this product: price list, information booklet and wiring diagram.
Documentation
70_EN_21620_Libretti_Istruzioni_5571084197__29-04-2019_151475
70_EN_21620_Libretti_Istruzioni_5671084456__23-02-2024_183778
