Description
Technical Data Sheet
-
Cooling capacity provided by the compressor (kW)1,55
-
Cooling capacity provided by the water coil (kW)1,25
-
IP20
-
Max absorbed current (A)4,7
-
Nominal absorbed power of recirculation fan (kW)0,1
-
Number of poles1
-
Thermal power at pump side (W)1300
-
Voltage (V)230
-
Weight (Kg)48
-
Dehumidification capacity (l/24 hr)40
-
Max airflow (m³/h)500
-
Nominal pressure drop of hydraulic circuit (kPa)9,0
-
Pressure loss on VMC side (Pa) :38
-
Sound pressure Lp [dB (A)] at 3 m39
-
Water flow rate (m³/h) :0,3
-

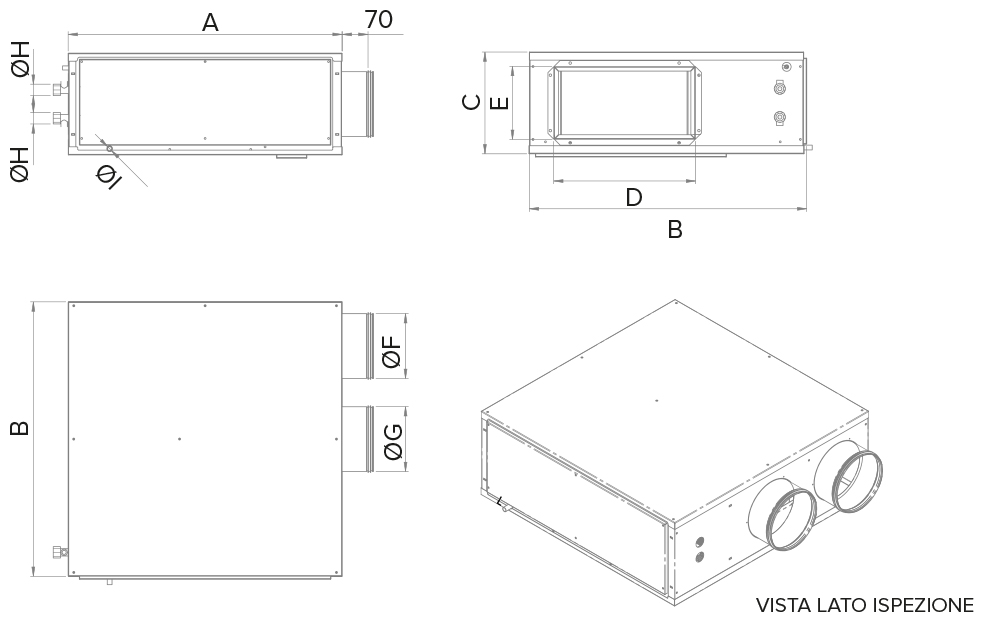

Size A (mm)680
-
Size B (mm)800
-
Size C (mm)320
-
Size D (mm)520
-
Size E (mm)250
-
Size F (mm)Ø 200
-
Size H (mm)Ø 12,7
-
Size I (mm)Ø 12
