Description
• Front casing moulded in self-extinguishing ABS thermoplastic resin rated V2, painted finish;
• Rear casing moulded in self-extinguishing polypropylene rated V0, incorporating the air inlet grille
• Air outlet grille made of self-extinguishing glass-fibre reinforced nylon rated V0.
• Shaded pole induction motor with shaft turning in self-lubricating bushings, coupled to a tangential impeller manufactured from pressed aluminium.
• Heating element with two pre-selectable output settings (1000 / 2000 W), protected by manually resettable thermal overload limiter.
• Rotary switch with 3 positions: OFF/1000/2000 W
• Manually adjustable room thermostat with antifreeze function guaranteeing automatic activation of the heater whenever ambient temperature drops below 5 °C.
• Programmable digital timer offering a variety of daily and weekly settings.
• Warning light indicating when the appliance is in operation.
• Power cord with moulded Schuko euro plug.
• Built-in recoil cord winder.
• Positionable vertically for floor-standing operation or on a tabletop, using the foot on the rear casing.
• IMQ safety certification.
• Rear casing moulded in self-extinguishing polypropylene rated V0, incorporating the air inlet grille
• Air outlet grille made of self-extinguishing glass-fibre reinforced nylon rated V0.
• Shaded pole induction motor with shaft turning in self-lubricating bushings, coupled to a tangential impeller manufactured from pressed aluminium.
• Heating element with two pre-selectable output settings (1000 / 2000 W), protected by manually resettable thermal overload limiter.
• Rotary switch with 3 positions: OFF/1000/2000 W
• Manually adjustable room thermostat with antifreeze function guaranteeing automatic activation of the heater whenever ambient temperature drops below 5 °C.
• Programmable digital timer offering a variety of daily and weekly settings.
• Warning light indicating when the appliance is in operation.
• Power cord with moulded Schuko euro plug.
• Built-in recoil cord winder.
• Positionable vertically for floor-standing operation or on a tabletop, using the foot on the rear casing.
• IMQ safety certification.
Technical Data Sheet
-
Frequency (Hz)50
-
Insulation classII°
-
IPX1
-
Max absorbed current (A)8,7
-
Max absorbed power (W)2000
-
Voltage (V)230
-
Weight (Kg)1,8
-
Adaptive starting controlNO
-
Appliances with stand-by modeno
-
Auxiliary electricity consumption at Min heating output - elmin (kW)0,02
-
Auxiliary electricity consumption at nominal heating output - elmax (kW)0,02
-
Auxiliary electricity consumption in stand-by - elSB (kW)0,02
-
Continuous thermal power - Pmax, C (kW)2
-
Control with black globe thermometerNO
-
Control with operating time limitationNO
-
Control with remote optionNO
-
Min thermal power - PMin (kW)1
-
Nominal thermal power - Pnom (kW)2
-
Pilot flame storage appliancesno
-
Room temperature control with open window detectionNO
-
Room temperature control with presence detectionNO
-
Seasonal energy efficiency (%)36
-
Single phase heating output without room temperature controlNO
-
Thermal power with electronic control of the room temperatureNO
-
Thermal power with electronic control of the room temperature and daily timerNO
-
Thermal power with electronic control of the room temperature and weekly timerNO
-
Thermal power with room temperature control by mechanical thermostatSI
-
Thermal power with two or more manual phases without room temperature controlNO
-

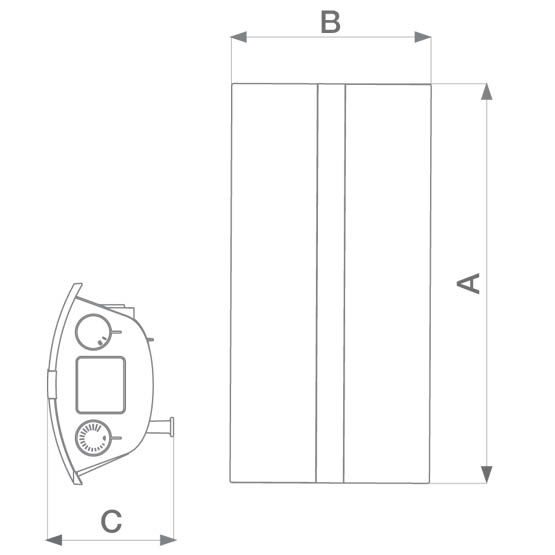

Size A (mm)410
-
Size B (mm)200
-
Size C (mm)110
Interested?
If you are interested in this product, contact us or locate your nearest Vortice dealer.
Documentation
You can see all the documentation relating to this product: price list, information booklet and wiring diagram.
