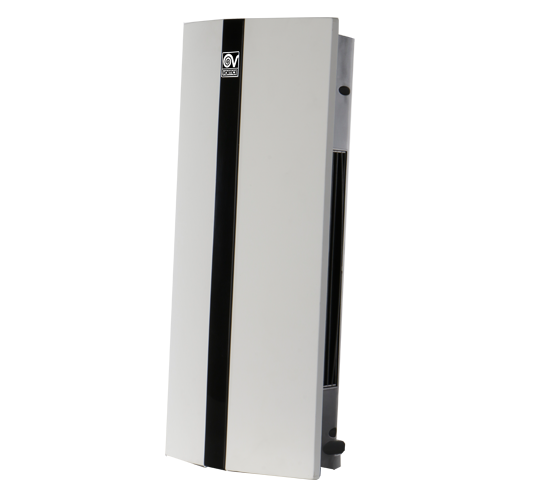

Description

• Front casing moulded in self-extinguishing ABS thermoplastic resin rated V2, painted finish;
• Rear casing moulded in self-extinguishing polypropylene rated V0, incorporating the air inlet grille
• Air outlet grille made of self-extinguishing glass-fibre reinforced nylon rated V0.
• Shaded pole induction motor with shaft turning in self-lubricating bushings, coupled to a tangential impeller manufactured from pressed aluminium.
• Heating element with two pre-selectable output settings (1000 / 2000 W), protected by manually resettable thermal overload limiter.
• Rotary switch with 3 positions: OFF/1000/2000 W
• Manually adjustable room thermostat with antifreeze function guaranteeing automatic activation of the heater whenever ambient temperature drops below 5 °C.
• Warning light indicating when the appliance is in operation.
• Power cord with moulded Schuko euro plug.
• Built-in recoil cord winder.
• Positionable vertically for floor-standing operation or on a tabletop, using the foot on the rear casing.
• IMQ safety certification.
Read full descriptionClose description
Accessorio_2
Accessorio_3

Technical Data Sheet

  • Frequency (Hz)
    50
  • Insulation class
    II°
  • IP
    X1
  • Max absorbed current (A)
    8,7
  • Max absorbed power (W)
    2000
  • Voltage (V)
    230
  • Weight (Kg)
    1,8

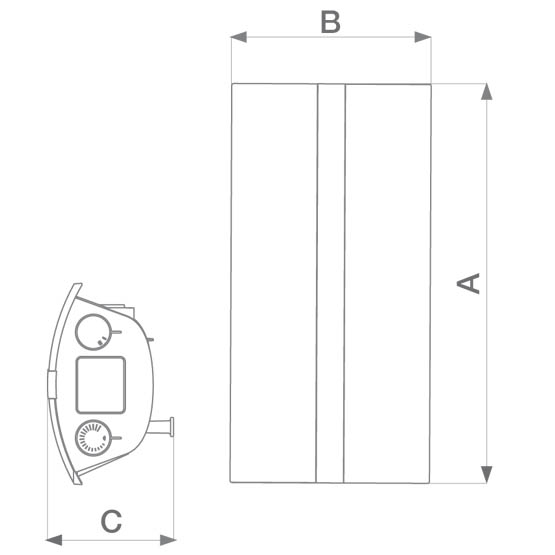

  • Size A (mm)
    410
  • Size B (mm)
    200
  • Size C (mm)
    110
Accessorio_4
Interested?
If you are interested in this product, contact us or locate your nearest Vortice dealer.
Documentation
You can see all the documentation relating to this product: price list, information booklet and wiring diagram.
