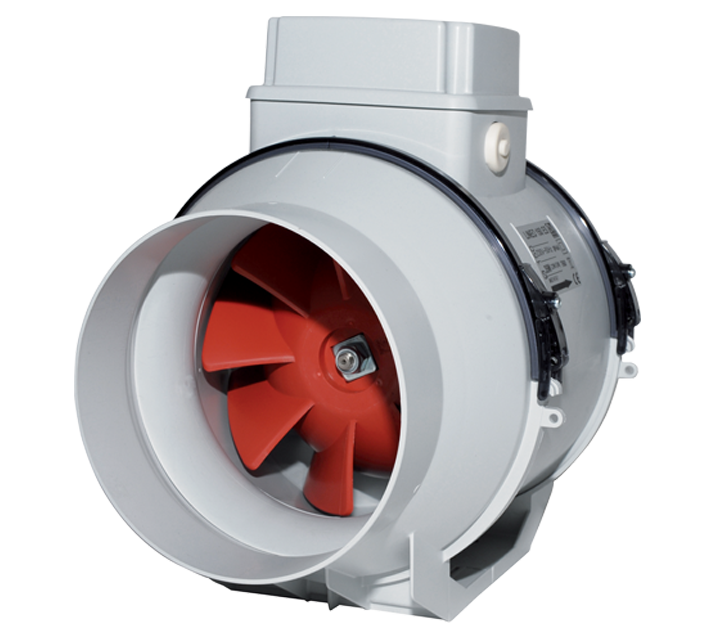

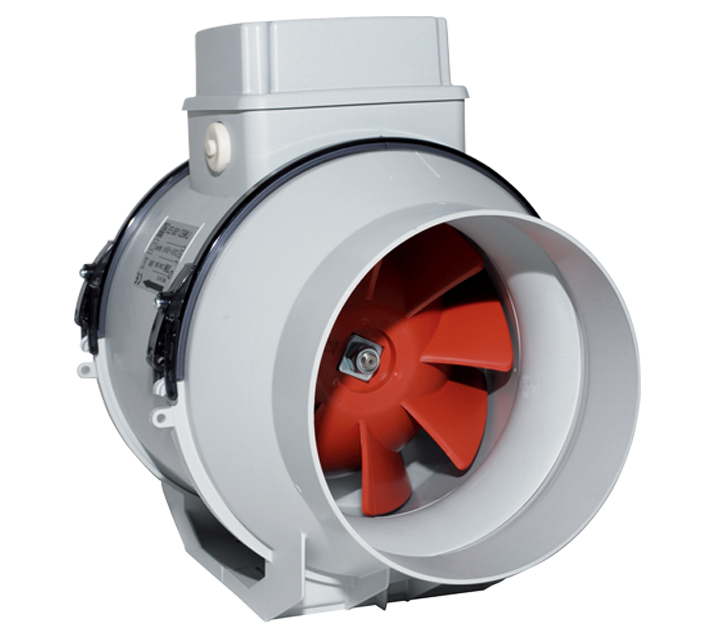

LINEO 250 ES - Vortice

Description

• Material: self-extinguishing plastic resin (self-extinguishing capability V0)
• Nominal diameter 250 mm.
• 2 speed EC brushless with thermal overload cutout and shaft turning in ball bearings, coupled to mixed flow axial-centrifugal impeller.
• Minimum air flow 650 m3/h
Maximum air flow: 1250 m3/h
• The electronic motor control circuitry incorporates an electronic timer function designed to shut off the motor automatically after a set interval, selectable during installation in the range 3’-20’ (default setting 3’).

Read full descriptionClose description

Absorbed current at Max speed (reg. Min /Nominal/Max) (A)

0,54/0,83/1,06/
Absorbed current at Min speed (reg. Min /Nominal/Max) (A)

0,26/0,42/0,59/
Absorbed power at Max speed (reg. Min / Nomin / Max) (W)

59/95/124/
Absorbed power at Min speed (reg. Min / Nomin / Max) (W)

27/45/65/
Frequency (Hz)

50
Insulation class

II°
IP

44
Max ambient temperature for continuous operation (°C)

50
Nominal diameter (mm)

250
Voltage (V)

230
Weight (Kg)

5,3
Airflow at Max speed (reg. Min /Nominal/Max) (l/s)

236/319/347/

Airflow at Max speed (reg. Min /Nominal/Max) (m³/h)

850/1150/1250/
Airflow at Min speed (reg. Min /Nominal/Max) (m³/h)

650/800/920/
Airflow at Min speed (reg. Min /Nominal/Max) (l/s)

180/222/255/
Pressure at Max speed (reg. Min /Nominal/Max) (mmH2O)

34/51/65/
Pressure at Max speed (reg. Min /Nominal/Max) (Pa)

333/500/637/
Pressure at Min speed (reg. Min /Nominal/Max) (mmH2O)

19/29/37/
Pressure at Min speed (reg. Min /Nominal/Max) (Pa)

186/284/363/
RPM at Max speed (reg. Min /Nominal/Max)

2280/2750/3010/
RPM at Min speed (reg. Min /Nominal/Max)

1720/2100/2400/
Sound pressure at 3m at Max speed (reg. Min /Nominal/Max) [dB(A)]

50,9/55,0/57,3/
Sound pressure at 3m at Min speed (reg. Min /Nominal/Max) [dB(A)]

43,0/47,4/50,4/

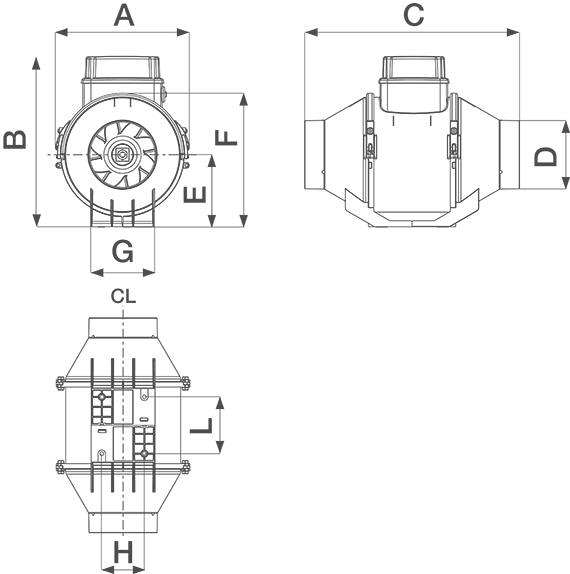

Size A (mm)

300
Size B (mm)

350
Size C (mm)

385
Size D (mm)

247
Size E (mm)

152,5
Size F (mm)

292
Size G (mm)

176,5
Size H (mm)

140
Size L (mm)

145
Size M (mm)

8
