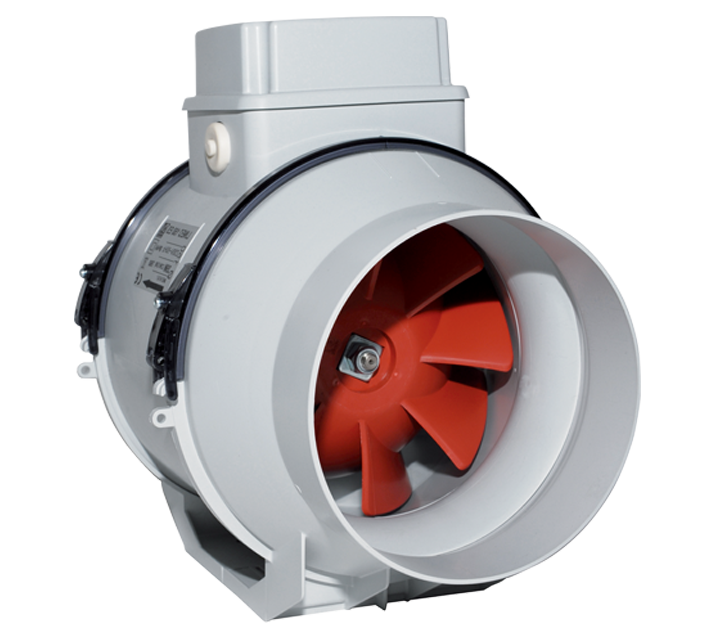

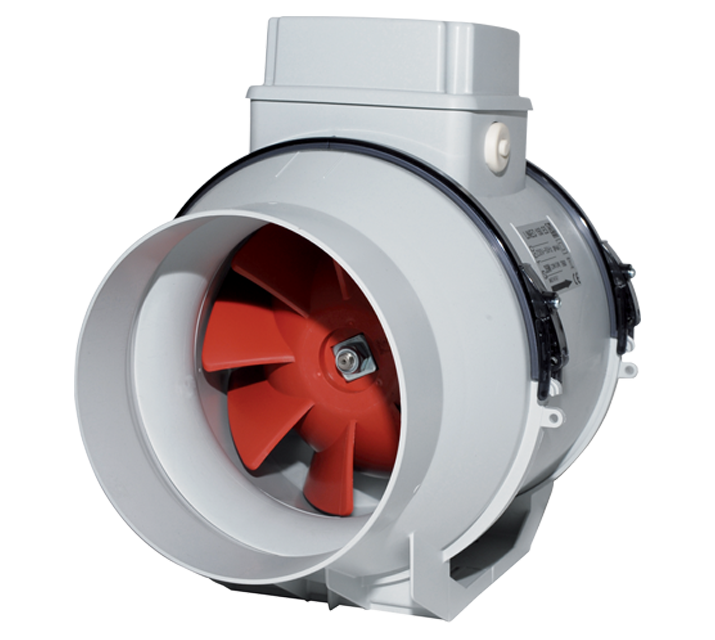

Description
• Material: self-extinguishing plastic resin (self-extinguishing capability V0)
• Nominal diameter 200 mm.
• 2 speed EC brushless with thermal overload cutout and shaft turning in ball bearings, coupled to mixed flow axial-centrifugal impeller.
• Minimum air flow 620 m3/h
Maximum air flow: 1080 m3/h
• The electronic motor control circuitry incorporates an electronic timer function designed to shut off the motor automatically after a set interval, selectable during installation in the range 3’-20’ (default setting 3’).
• Nominal diameter 200 mm.
• 2 speed EC brushless with thermal overload cutout and shaft turning in ball bearings, coupled to mixed flow axial-centrifugal impeller.
• Minimum air flow 620 m3/h
Maximum air flow: 1080 m3/h
• The electronic motor control circuitry incorporates an electronic timer function designed to shut off the motor automatically after a set interval, selectable during installation in the range 3’-20’ (default setting 3’).
Technical Data Sheet
-
Absorbed current at Max speed (reg. Min /Nominal/Max) (A)0,32/0,50/0,63/
-
Absorbed current at Min speed (reg. Min /Nominal/Max) (A)0,21/0,33/0,47/
-
Absorbed power at Max speed (reg. Min / Nomin / Max) (W)34/57/74/
-
Absorbed power at Min speed (reg. Min / Nomin / Max) (W)22/36/53/
-
Frequency (Hz)50
-
Insulation classII°
-
IP44
-
Max ambient temperature for continuous operation (°C)50
-
Nominal diameter (mm)200
-
Voltage (V)230
-
Weight (Kg)2,5
-
Airflow at Max speed (reg. Min /Nominal/Max) (l/s)211/278/300/
-
Airflow at Max speed (reg. Min /Nominal/Max) (m³/h)760/1000/1080/
-
Airflow at Min speed (reg. Min /Nominal/Max) (m³/h)620/750/870/
-
Airflow at Min speed (reg. Min /Nominal/Max) (l/s)172/208/242/
-
Pressure at Max speed (reg. Min /Nominal/Max) (mmH2O)19/27/37/
-
Pressure at Max speed (reg. Min /Nominal/Max) (Pa)186/265/363/
-
Pressure at Min speed (reg. Min /Nominal/Max) (mmH2O)13/19/25/
-
Pressure at Min speed (reg. Min /Nominal/Max) (Pa)127/186/245/
-
RPM at Max speed (reg. Min /Nominal/Max)2330/2820/3120/
-
RPM at Min speed (reg. Min /Nominal/Max)1990/2400/2750/
-
Sound pressure at 3m at Max speed (reg. Min /Nominal/Max) [dB(A)]44,3/46,2/47,5/
-
Sound pressure at 3m at Min speed (reg. Min /Nominal/Max) [dB(A)]39,4/44,8/45,3/
-

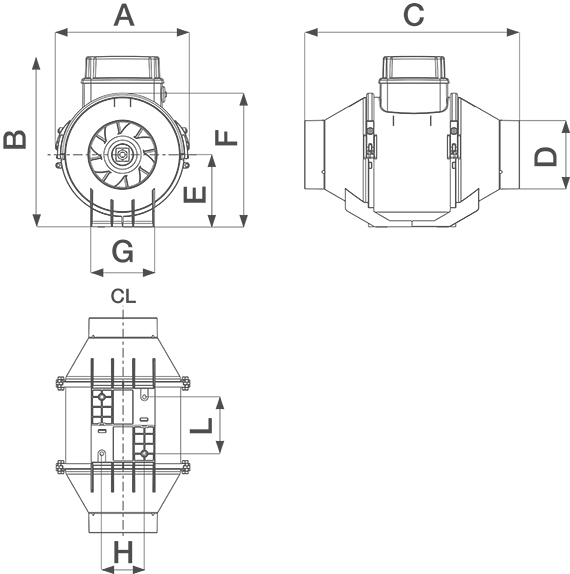

Size A (mm)234,5
-
Size B (mm)290
-
Size C (mm)300
-
Size D (mm)196
-
Size E (mm)125,5
-
Size F (mm)235
-
Size G (mm)140
-
Size H (mm)94
-
Size L (mm)100
-
Size M (mm)6
