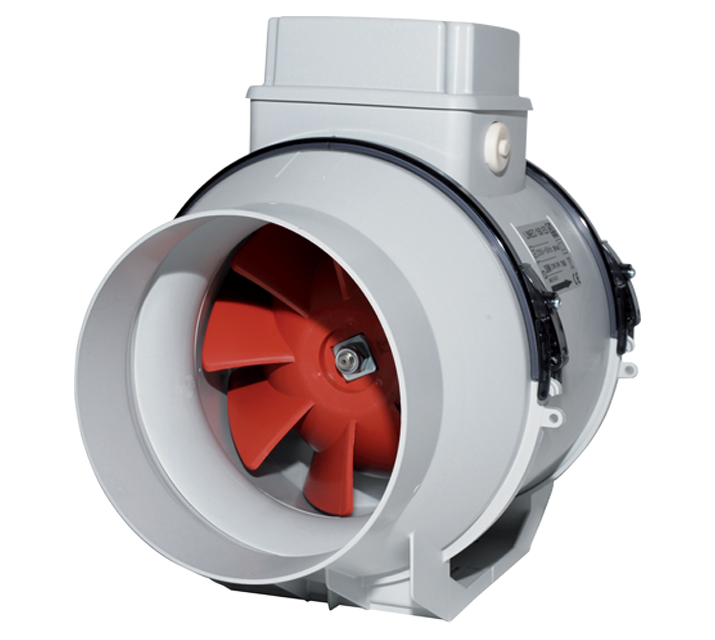

Description
• Material: self-extinguishing plastic resin (self-extinguishing capability V0)
• Nominal diameter 100 mm.
• 2 speed EC brushless with thermal overload cutout and shaft turning in ball bearings, coupled to mixed flow axial-centrifugal impeller.
• Minimum air flow 90 m3/h
Maximum air flow: 230 m3/h
• The electronic motor control circuitry incorporates an electronic timer function designed to shut off the motor automatically after a set interval, selectable during installation in the range 3’-20’ (default setting 3’).
• Nominal diameter 100 mm.
• 2 speed EC brushless with thermal overload cutout and shaft turning in ball bearings, coupled to mixed flow axial-centrifugal impeller.
• Minimum air flow 90 m3/h
Maximum air flow: 230 m3/h
• The electronic motor control circuitry incorporates an electronic timer function designed to shut off the motor automatically after a set interval, selectable during installation in the range 3’-20’ (default setting 3’).
Technical Data Sheet
-
Absorbed current at Max speed (reg. Min /Nominal/Max) (A)0,08/0,12/0,16/
-
Absorbed current at Min speed (reg. Min /Nominal/Max) (A)0,05/0,07/0,10/
-
Absorbed power at Max speed (reg. Min / Nomin / Max) (W)7/12/16,5/
-
Absorbed power at Min speed (reg. Min / Nomin / Max) (W)4,5/7/10/
-
Frequency (Hz)50
-
Insulation classII°
-
IP44
-
Max ambient temperature for continuous operation (°C)60
-
Nominal diameter (mm)100
-
Voltage (V)230
-
Weight (Kg)1,5
-
Airflow at Max speed (reg. Min /Nominal/Max) (l/s)40/58/64/
-
Airflow at Max speed (reg. Min /Nominal/Max) (m³/h)145/210/230/
-
Airflow at Min speed (reg. Min /Nominal/Max) (m³/h)90/155/170/
-
Airflow at Min speed (reg. Min /Nominal/Max) (l/s)25/43/47/
-
Pressure at Max speed (reg. Min /Nominal/Max) (mmH2O)8/15/18/
-
Pressure at Max speed (reg. Min /Nominal/Max) (Pa)78/147/177/
-
Pressure at Min speed (reg. Min /Nominal/Max) (mmH2O)3,6/9/11/
-
Pressure at Min speed (reg. Min /Nominal/Max) (Pa)35/88/108/
-
RPM at Max speed (reg. Min /Nominal/Max)2120/2850/3300/
-
RPM at Min speed (reg. Min /Nominal/Max)1420/2125/2560/
-
Sound pressure at 3m at Max speed (reg. Min /Nominal/Max) [dB(A)]33,3/40/44,5/
-
Sound pressure at 3m at Min speed (reg. Min /Nominal/Max) [dB(A)]21/28,9/33,5/
-

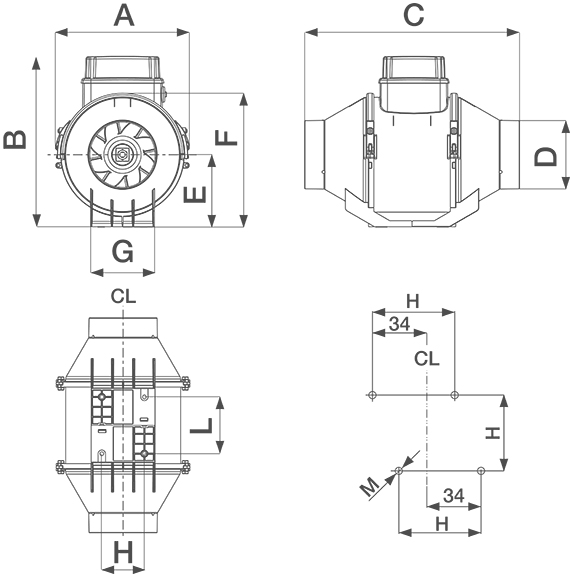

Size A (mm)156
-
Size B (mm)205
-
Size C (mm)231
-
Size D (mm)96
-
Size E (mm)82
-
Size F (mm)152
-
Size G (mm)95
-
Size H (mm)51,5
-
Size L (mm)47,5
-
Size M (mm)6
Interested?
If you are interested in this product, contact us or locate your nearest Vortice dealer.
Documentation
You can see all the documentation relating to this product: price list, information booklet and wiring diagram.
