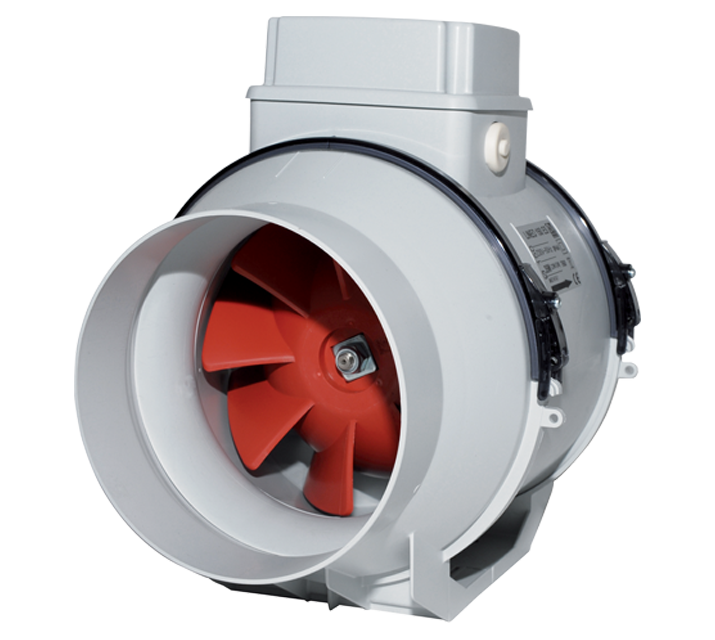

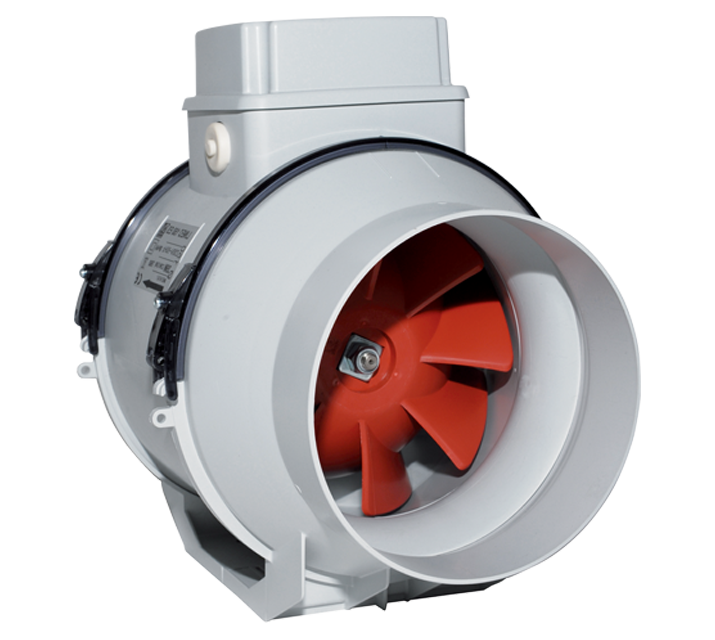

Description
• Material: self-extinguishing plastic resin (self-extinguishing capability V0)
• Nominal diameter 100 mm.
• 2 speed EC brushless with thermal overload cutout and shaft turning in ball bearings, coupled to mixed flow axial-centrifugal impeller.
• Minimum air flow 140 m3/h
Maximum air flow: 270 m3/h
• The electronic motor control circuitry incorporates an electronic timer function designed to shut off the motor automatically after a set interval, selectable during installation in the range 3’-20’ (default setting 3’).
• Nominal diameter 100 mm.
• 2 speed EC brushless with thermal overload cutout and shaft turning in ball bearings, coupled to mixed flow axial-centrifugal impeller.
• Minimum air flow 140 m3/h
Maximum air flow: 270 m3/h
• The electronic motor control circuitry incorporates an electronic timer function designed to shut off the motor automatically after a set interval, selectable during installation in the range 3’-20’ (default setting 3’).
Technical Data Sheet
-
Absorbed current at Max speed (reg. Min /Nominal/Max) (A)0,09/0,12/0,17/
-
Absorbed current at Min speed (reg. Min /Nominal/Max) (A)0,06/0,09/0,11/
-
Absorbed power at Max speed (reg. Min / Nomin / Max) (W)8/12/17/
-
Absorbed power at Min speed (reg. Min / Nomin / Max) (W)5,5/8/11/
-
Frequency (Hz)50
-
Insulation classII°
-
IP44
-
Max ambient temperature for continuous operation (°C)60
-
Nominal diameter (mm)100
-
Voltage (V)230
-
Weight (Kg)1,9
-
Airflow at Max speed (reg. Min /Nominal/Max) (l/s)51/71/75/
-
Airflow at Max speed (reg. Min /Nominal/Max) (m³/h)185/255/270/
-
Airflow at Min speed (reg. Min /Nominal/Max) (m³/h)140/180/220/
-
Airflow at Min speed (reg. Min /Nominal/Max) (l/s)39/50/61/
-
Pressure at Max speed (reg. Min /Nominal/Max) (mmH2O)12/23/26/
-
Pressure at Max speed (reg. Min /Nominal/Max) (Pa)118/225/255/
-
Pressure at Min speed (reg. Min /Nominal/Max) (mmH2O)7/12/17/
-
Pressure at Min speed (reg. Min /Nominal/Max) (Pa)69/118/167/
-
RPM at Max speed (reg. Min /Nominal/Max)1650/2000/2330/
-
RPM at Min speed (reg. Min /Nominal/Max)1320/1620/1920/
-
Sound pressure at 3m at Max speed (reg. Min /Nominal/Max) [dB(A)]31,4/36,4/40,8/
-
Sound pressure at 3m at Min speed (reg. Min /Nominal/Max) [dB(A)]25,3/31,4/35,7/
-

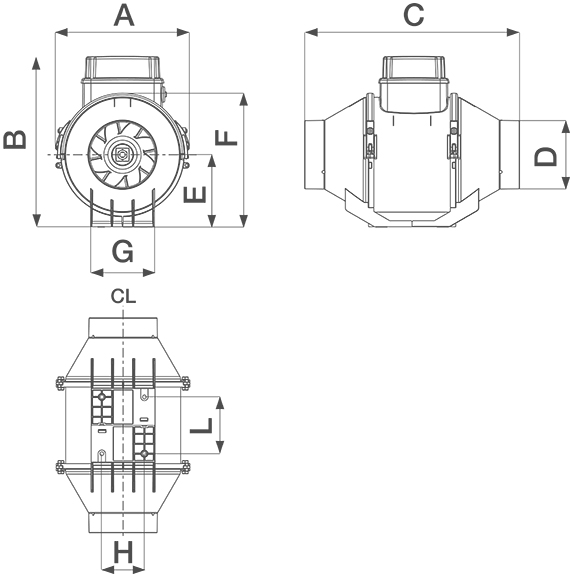

Size A (mm)188,5
-
Size B (mm)240
-
Size C (mm)303
-
Size D (mm)96
-
Size E (mm)101,5
-
Size F (mm)189
-
Size G (mm)90
-
Size H (mm)60
-
Size L (mm)80
-
Size M (mm)6
