Code 17007

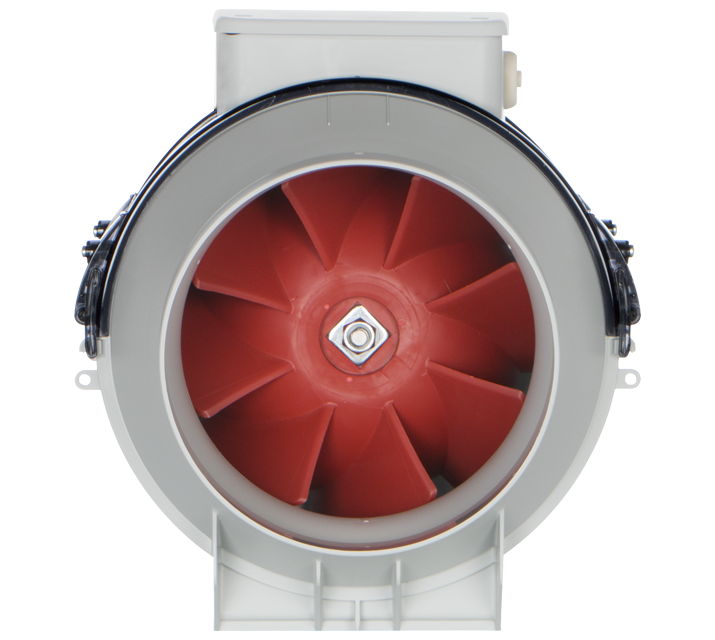

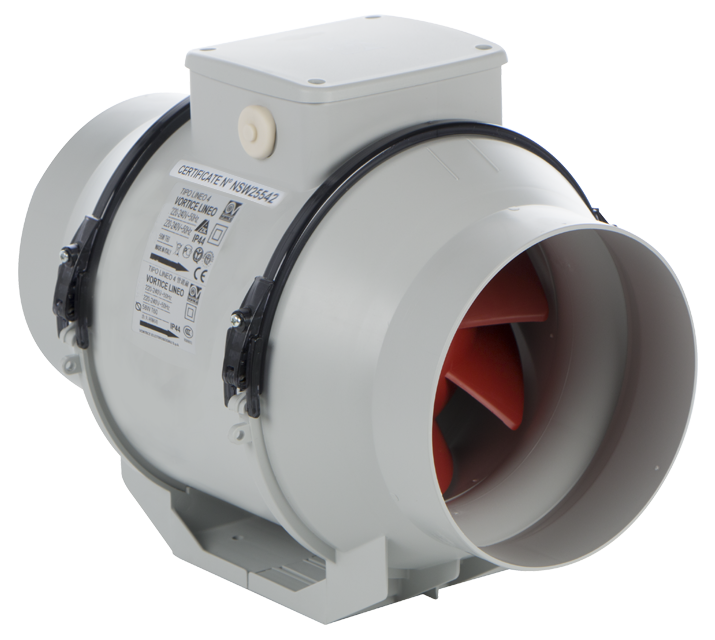

VORTICE LINEO 200 Q V0
Documentation
70_EN_17007_Libretti_Istruzioni_5571084772__14_04_2021_170028
70_EN_17007_Libretti_Istruzioni_5571084772__04_05_2021_170295
70_EN_17007_Schemi_collegamento_E960037B_17371
70_EN_17007_Schemi_collegamento_E960037C_18458
Prodotti
ACCESSORIES AND COMPONENTS
Description
• Material: self-extinguishing plastic resin (self-extinguishing capability V0)
• Nominal diameter 200 mm.

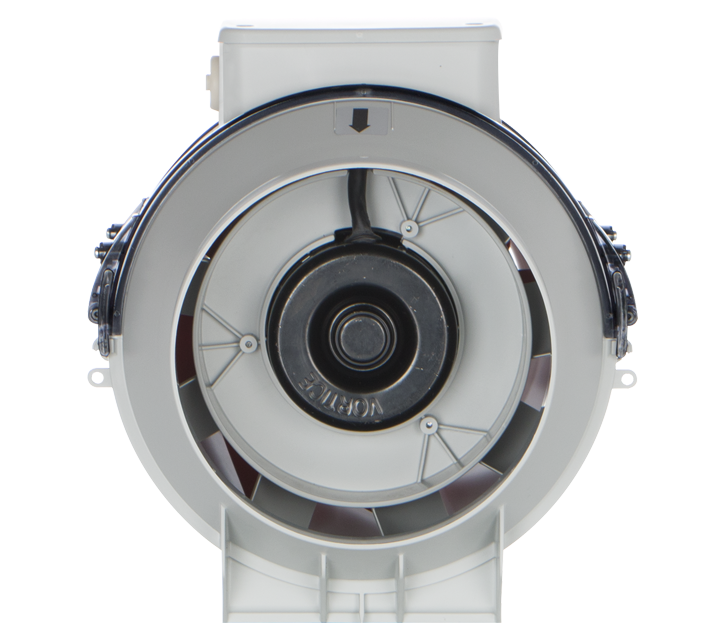

• 2 speed AC motor with thermal overload cutout and shaft turning in ball bearings, coupled to mixed flow axial-centrifugal impeller.
• Minimum air flow 700 m3/h
Maximum air flow: 950 m3/h
• IMQ SAFETY and IMQ PERFORMANCE certifications
• Vortice speed controllers.
Read full description
Close description
Technical Data Sheet
Technical and performance data
Dimensions
Frequency (Hz)
50
Insulation class
II°
IP
44
Max absorbed current at Max speed (A)
0,37
Max absorbed current at Min speed (A)
0,22
Max absorbed power at Max speed (W)
75
Max ambient temperature for continuous operation (°C)
60
Nominal diameter (mm)
200
Power absorbed at 1st speed (W)
45
Voltage (V)
220-240
Weight (Kg)
4,3
Airflow at 1st speed (l/s)
194,4
Airflow at 1st speed (m³/h)
700
Max airflow at Max speed (l/s)
263,9
Max airflow at Max speed (m³/h)
950
Max pressure at Max speed (mmH20)
29
Max pressure at Max speed (Pa)
284,5
Max RPM
2740
Min RPM
1780
Pressure at 1st speed (mmH20)
13
Pressure at 1st speed (Pa)
127,5
Sound pressure at 3 m - min speed Lp [dB (A)] 3m - min speed
39,6
Sound pressure at 3m at Max speed Lp [dB (A)]
49,0
Size A (mm)
234,5
Size B (mm)
260,5
Size C (mm)
300
Size D (mm)
196
Size E (mm)
125,5
Size F (mm)
235
Size G (mm)
140
Size H (mm)
94
Size L (mm)
100
Size M (mm)
6
