Code 17006
VORTICE LINEO 200 V0
Documentation
70_EN_17006_Libretti_Istruzioni_5571084772__14_04_2021_170027
70_EN_17006_Libretti_Istruzioni_5571084772__04_05_2021_170294
70_EN_17006_Schemi_collegamento_E960037A_11901
70_EN_17006_Schemi_collegamento_E960037B_16644
70_EN_17006_Schemi_collegamento_E960134A_16646
70_EN_17006_Schemi_collegamento_E960037C_18457
Prodotti
ACCESSORIES AND COMPONENTS

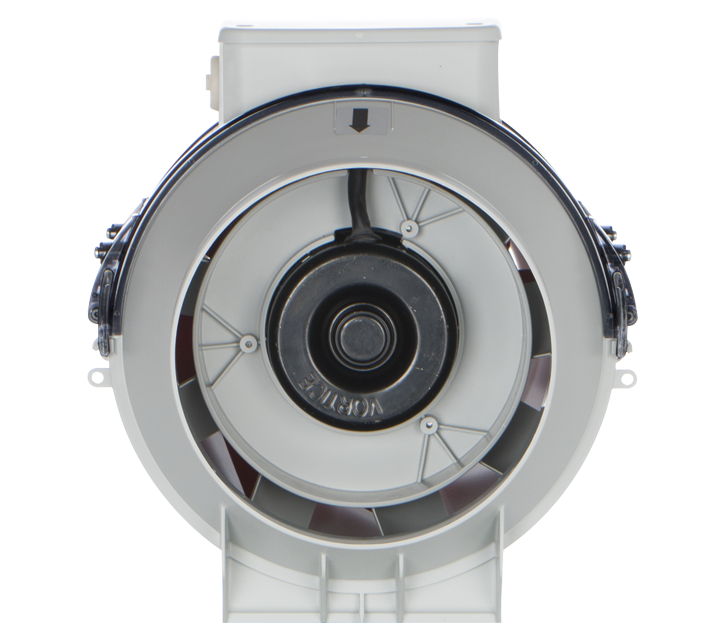

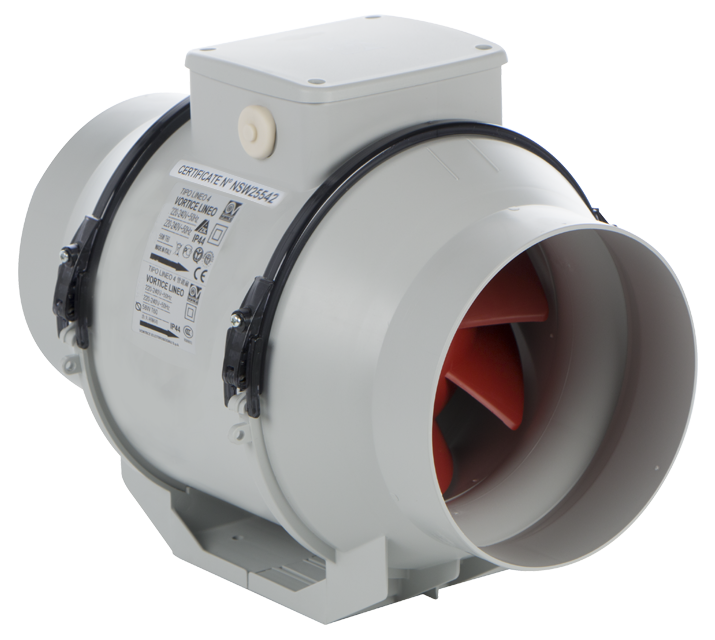

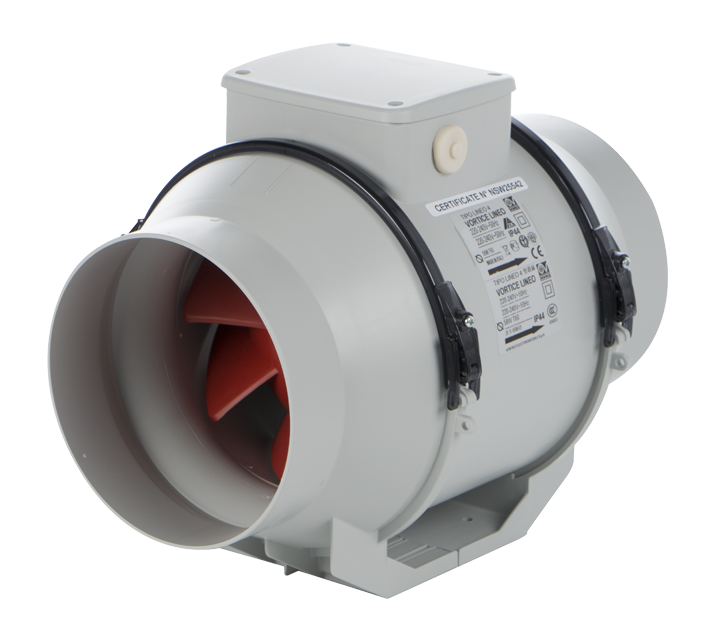

Description
• Material: self-extinguishing plastic resin (self-extinguishing capability V0)
• Nominal diameter 200 mm.

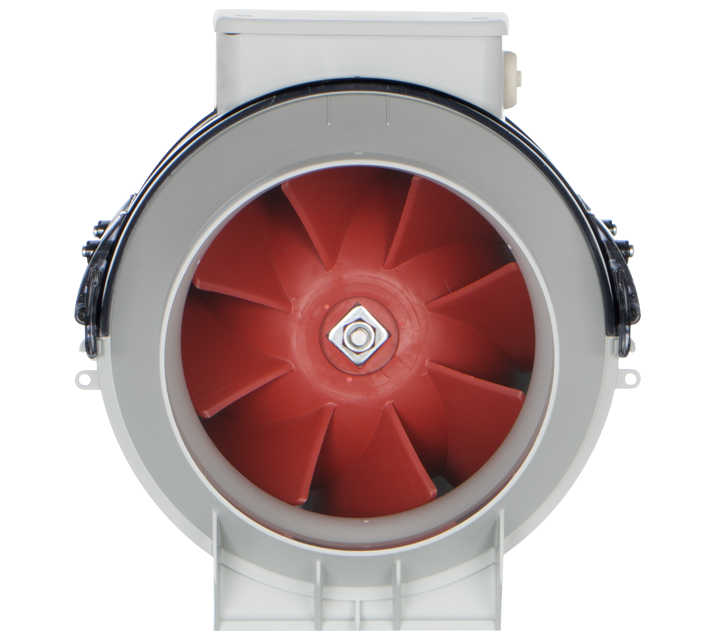

• 2 speed AC motor with thermal overload cutout and shaft turning in ball bearings, coupled to mixed flow axial-centrifugal impeller.
• Minimum air flow 790 m3/h
Maximum air flow: 1060 m3/h
• IMQ SAFETY and IMQ PERFORMANCE certifications
• Vortice speed controllers.
Read full description
Close description
Technical Data Sheet
Technical and performance data

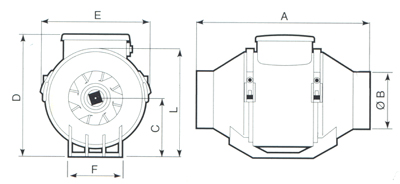

Dimensions
Frequency (Hz)
50
Insulation class
II°
IP
44
Max absorbed current at Max speed (A)
0,64
Max absorbed current at Min speed (A)
0,43
Max absorbed power at Max speed (W)
145
Max ambient temperature for continuous operation (°C)
60
Power absorbed at 1st speed (W)
98
Voltage (V)
220-240
Weight (Kg)
3,7
Airflow at 1st speed (l/s)
219,4
Airflow at 1st speed (m³/h)
790
Max airflow at Max speed (l/s)
294,4
Max airflow at Max speed (m³/h)
1060
Max pressure at Max speed (mmH20)
33
Max pressure at Max speed (Pa)
323,7
Max RPM
2140
Min RPM
1580
Pressure at 1st speed (mmH20)
29
Pressure at 1st speed (Pa)
284,5
Sound pressure at 3 m - min speed Lp [dB (A)] 3m - min speed
46,2
Sound pressure at 3m at Max speed Lp [dB (A)]
52,5
Size A (mm)
234,5
Size B (mm)
260,5
Size C (mm)
300
Size D (mm)
196
Size E (mm)
125,5
Size F (mm)
235
Size G (mm)
140
Size H (mm)
94
Size L (mm)
100
Size M (mm)
6
