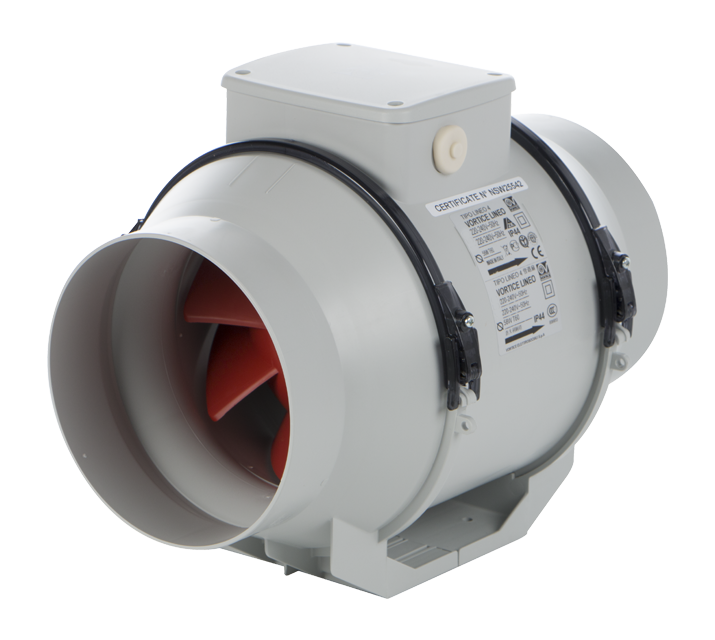

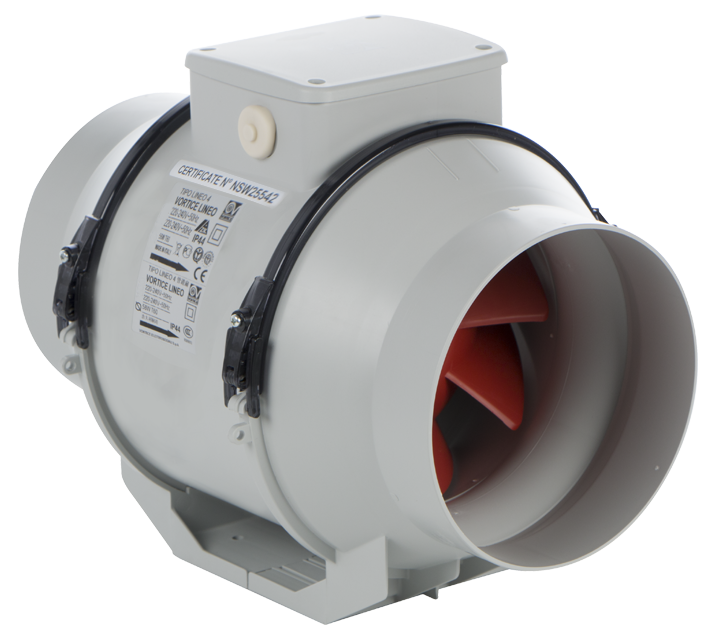

VORTICE LINEO 160 V0

Description

• Material: self-extinguishing plastic resin (self-extinguishing capability V0)
• Nominal diameter 160 mm.

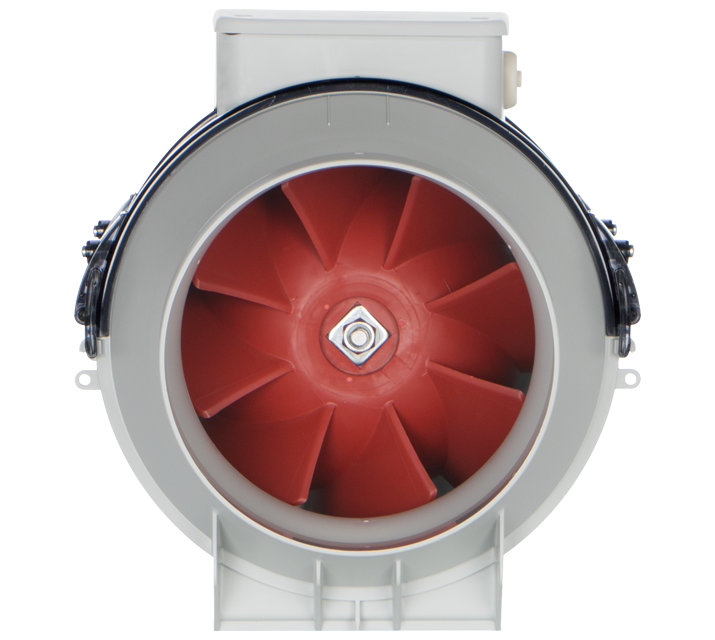

• 2 speed AC motor with thermal overload cutout and shaft turning in ball bearings, coupled to mixed flow axial-centrifugal impeller.
• Minimum air flow 385 m3/h
Maximum air flow: 550 m3/h
• IMQ SAFETY and IMQ PERFORMANCE certifications
• Vortice speed controllers.

Read full descriptionClose description

Frequency (Hz)

50
Insulation class

II°
IP

44
Max absorbed current at Max speed (A)

0,26
Max absorbed current at Min speed (A)

0,18
Max absorbed power at Max speed (W)

58
Max ambient temperature for continuous operation (°C)

60
Nominal diameter (mm)

160
Power absorbed at 1st speed (W)

40
Voltage (V)

220-240
Weight (Kg)

2,4
Airflow at 1st speed (l/s)

106,9

Airflow at 1st speed (m³/h)

385
Max airflow at Max speed (l/s)

152,8
Max airflow at Max speed (m³/h)

550
Max pressure at Max speed (mmH20)

27
Max pressure at Max speed (Pa)

264,9
Max RPM

2100
Min RPM

1580
Pressure at 1st speed (mmH20)

21
Pressure at 1st speed (Pa)

206
Sound pressure at 3 m - min speed Lp [dB (A)] 3m - min speed

41,7
Sound pressure at 3m at Max speed Lp [dB (A)]

50,8

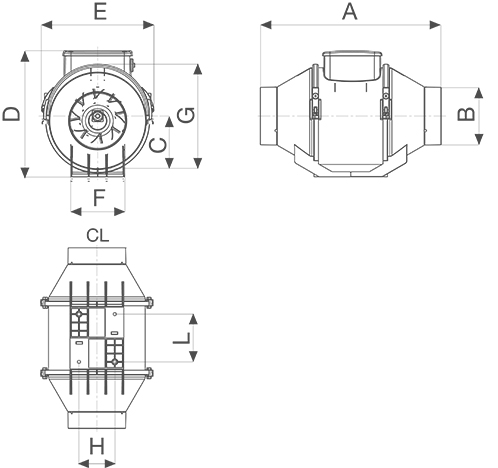

Size A (mm)

214,5
Size B (mm)

234
Size C (mm)

272,5
Size D (mm)

156
Size E (mm)

112,5
Size F (mm)

212
Size G (mm)

110
Size H (mm)

60
Size L (mm)

80
Size M (mm)

6
