Code 17002

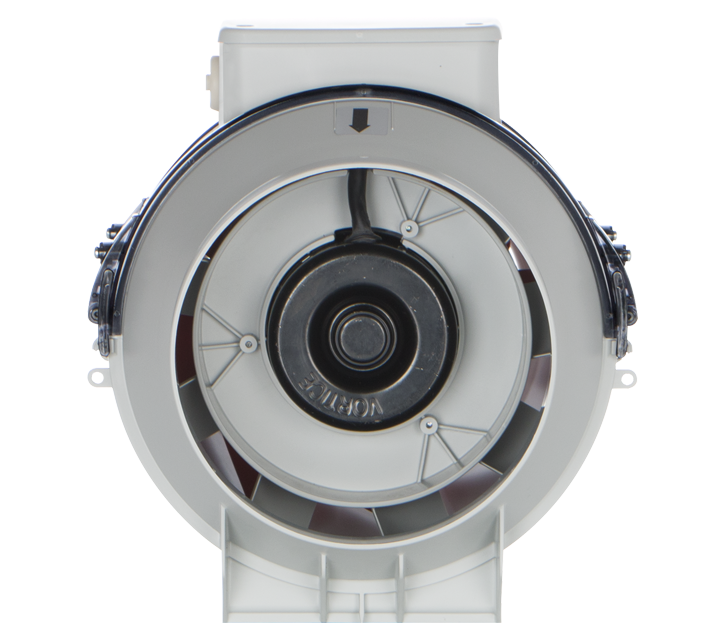

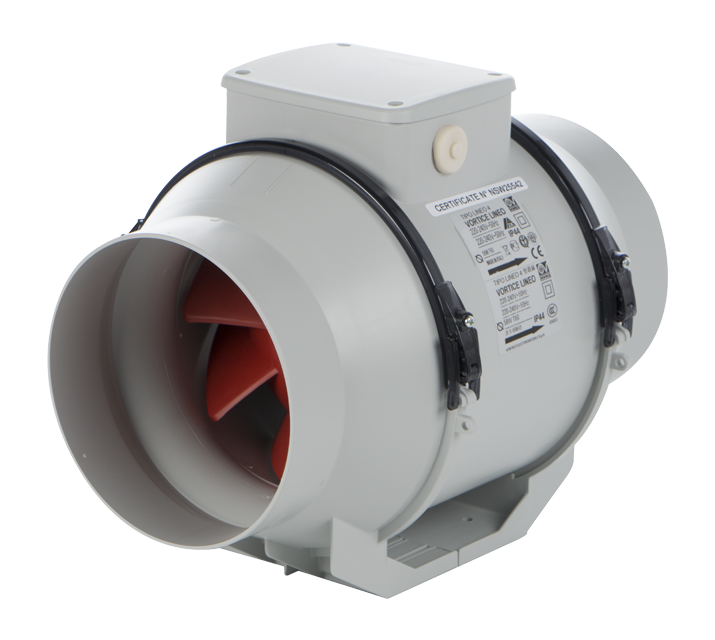

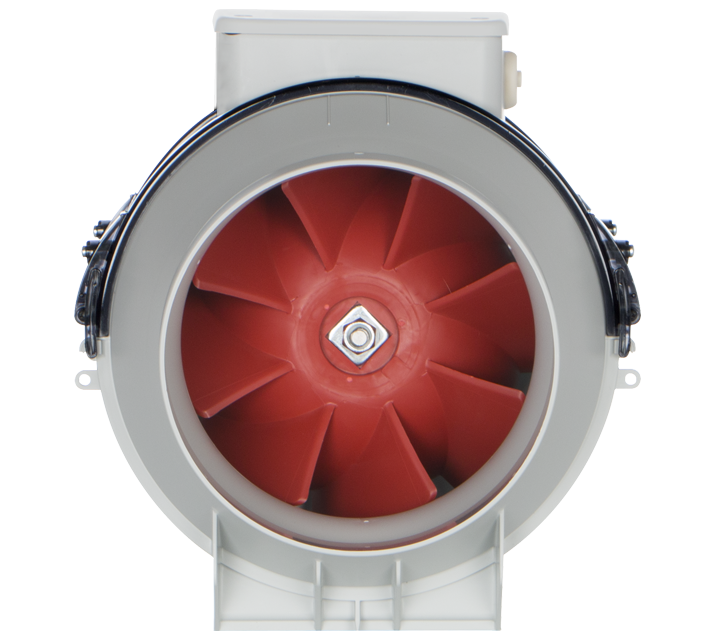

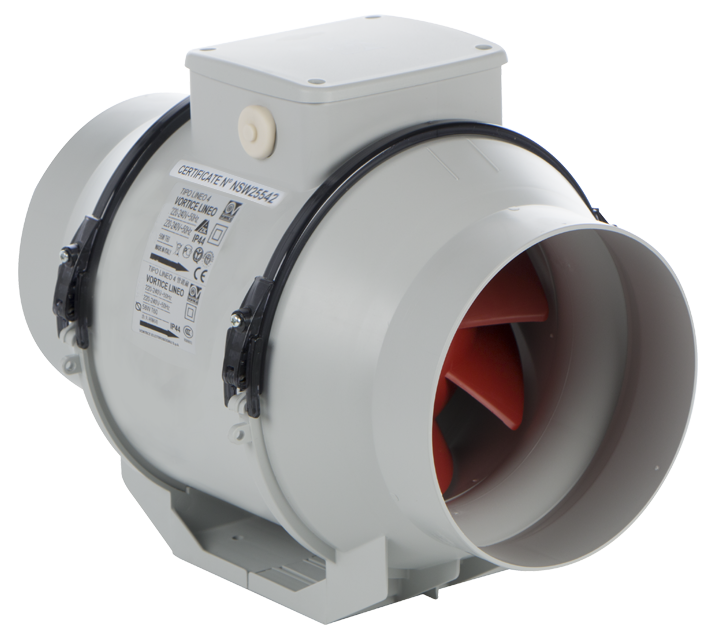

VORTICE LINEO 125 V0
Documentation
70_EN_17002_Libretti_Istruzioni_5571084691___14-10-2020_165915
70_EN_17002_Libretti_Istruzioni_5571084772__14_04_2021_170020
70_EN_17002_Libretti_Istruzioni_5571084772__04_05_2021_170290
70_EN_17002_Schemi_collegamento_E960037C_18454
Prodotti
ACCESSORIES AND COMPONENTS
Description
• Material: self-extinguishing plastic resin (self-extinguishing capability V0)
• Nominal diameter 125 mm.
• 2 speed AC motor with thermal overload cutout and shaft turning in ball bearings, coupled to mixed flow axial-centrifugal impeller.
• Minimum air flow 250 m3/h
Maximum air flow: 365 m3/h
• IMQ SAFETY and IMQ PERFORMANCE certifications
• Vortice speed controllers.
Read full description
Close description
Technical Data Sheet
Technical and performance data

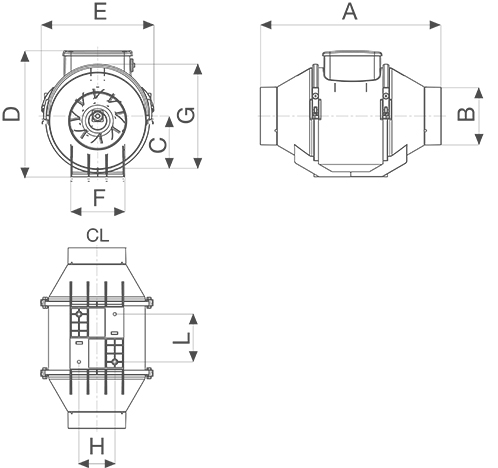

Dimensions
Frequency (Hz)
50
Insulation class
II°
IP
44
Max absorbed current at Max speed (A)
0,15
Max absorbed current at Min speed (A)
0,11
Max absorbed power at Max speed (W)
33
Max ambient temperature for continuous operation (°C)
60
Nominal diameter (mm)
125
Power absorbed at 1st speed (W)
25
Voltage (V)
220-240
Weight (Kg)
1,8
Airflow at 1st speed (l/s)
69,4
Airflow at 1st speed (m³/h)
250
Max airflow at Max speed (l/s)
101,4
Max airflow at Max speed (m³/h)
365
Max pressure at Max speed (mmH20)
17
Max pressure at Max speed (Pa)
166,8
Max RPM
2140
Min RPM
1570
Pressure at 1st speed (mmH20)
13
Pressure at 1st speed (Pa)
127,5
Sound pressure at 3 m - min speed Lp [dB (A)] 3m - min speed
33,9
Sound pressure at 3m at Max speed Lp [dB (A)]
43
Size A (mm)
188,5
Size B (mm)
211
Size C (mm)
258
Size D (mm)
122
Size E (mm)
101,5
Size F (mm)
189
Size G (mm)
90
Size H (mm)
60
Size L (mm)
80
Size M (mm)
6
