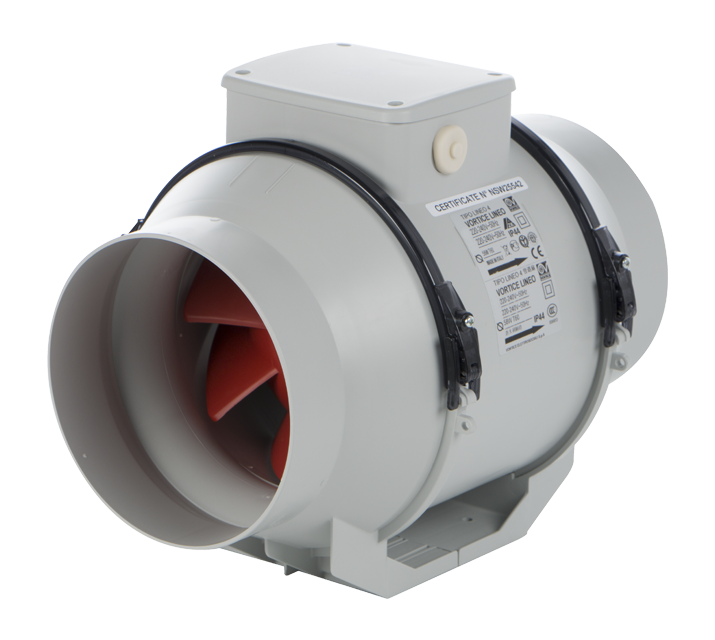

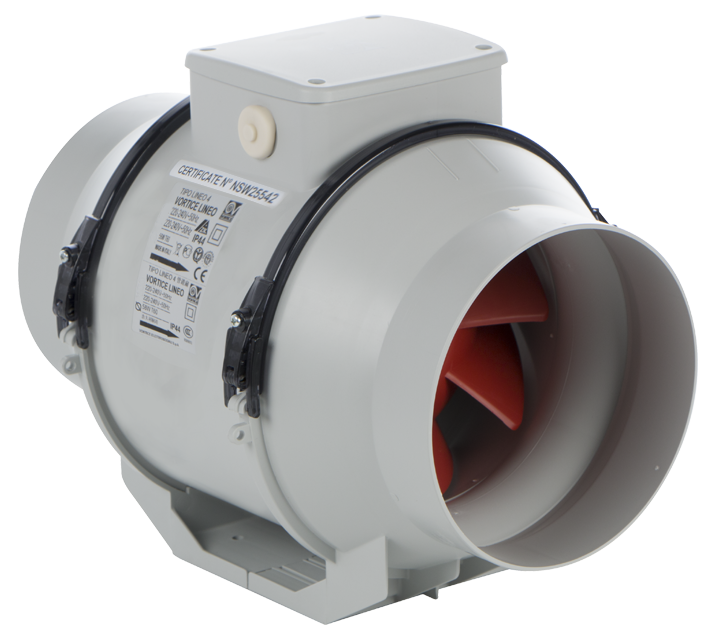

VORTICE LINEO 100 V0

Description

• Material: self-extinguishing plastic resin (self-extinguishing capability V0)
• Nominal diameter 100 mm.

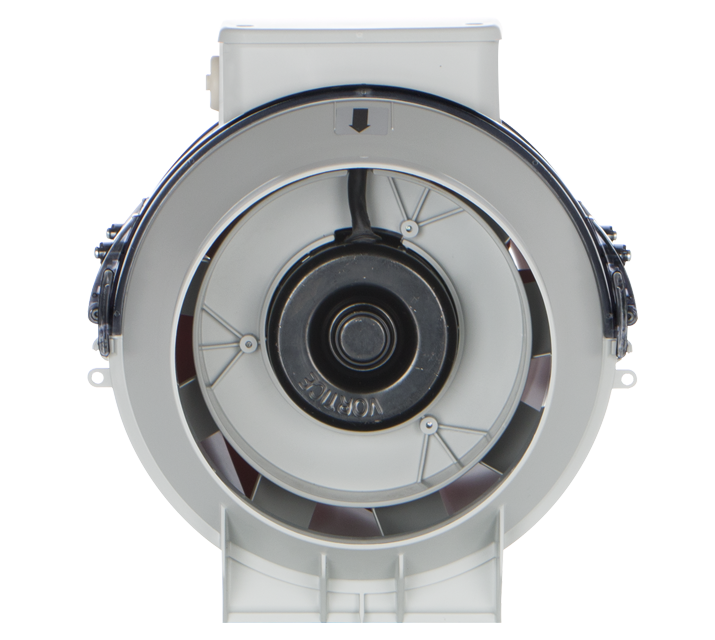

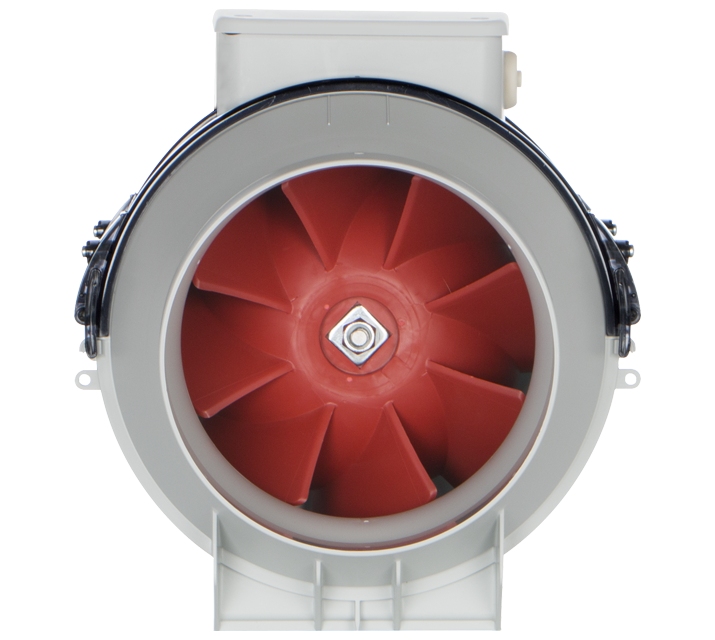

• 2 speed AC motor with thermal overload cutout and shaft turning in ball bearings, coupled to mixed flow axial-centrifugal impeller.
• Minimum air flow 180 m3/h
Maximum air flow: 255 m3/h
• IMQ SAFETY and IMQ PERFORMANCE certifications
• Vortice speed controllers.

Read full descriptionClose description

Frequency (Hz)

50
Insulation class

II°
IP

44
Max absorbed current at Max speed (A)

0,11
Max absorbed current at Min speed (A)

0,09
Max absorbed power at Max speed (W)

23
Max ambient temperature for continuous operation (°C)

60
Nominal diameter (mm)

100
Power absorbed at 1st speed (W)

20
Voltage (V)

220-240
Weight (Kg)

1,8
Airflow at 1st speed (l/s)

50

Airflow at 1st speed (m³/h)

180
Max airflow at Max speed (l/s)

70,8
Max airflow at Max speed (m³/h)

255
Max pressure at Max speed (mmH20)

16,5
Max pressure at Max speed (Pa)

161,9
Max RPM

2030
Min RPM

1520
Pressure at 1st speed (mmH20)

13
Pressure at 1st speed (Pa)

127,5
Sound pressure at 3 m - min speed Lp [dB (A)] 3m - min speed

30,7
Sound pressure at 3m at Max speed Lp [dB (A)]

39,4

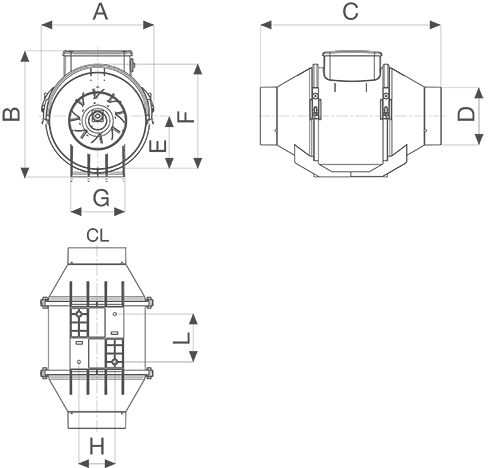

Size A (mm)

188,5
Size B (mm)

211
Size C (mm)

303
Size D (mm)

96
Size E (mm)

101,5
Size F (mm)

189
Size G (mm)

90
Size H (mm)

60
Size L (mm)

80
Size M (mm)

6
