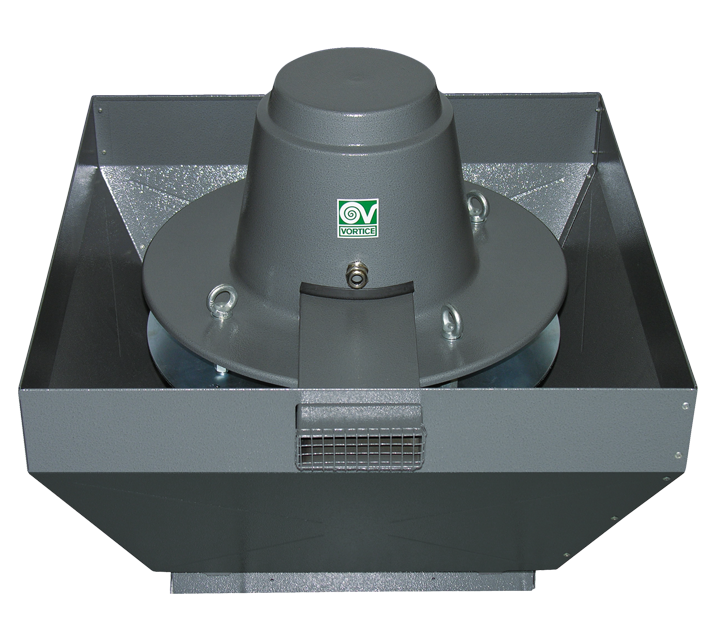

Description

• Centrifugal roof fan suitable for extracting hot fumes at up to 400 °C for 120 minutes.
• Base manufactured from phosphated pressed steel, epoxy powder coated with hammered effect finish, guaranteeing long-term resistance to atmospheric agents.
• Aerodynamically contoured inlet port for optimum performance, fashioned as a single unit with the base and gauged to optimize air flow.
• Motor mounting plate made of steel with galvanization surface treatment.
• Protective cap carried by top plate made of steel with galvanization surface treatment.
• Cold outside air drawn into a cooling chamber made of pressed steel with polyester powder coated and oven baked hammered effect finish, colour grey.
• Pressed steel motor cover: pickled and phosphated surface, polyester powder coated and oven baked finish, colour grey, with hammered texture.
• Accident prevention and anti-bird grilles (to UNI ISO 13857 standard), consisting of electrically welded steel rings with epoxy powder coated finish, colour black.
• Centrifugal impeller with self-cleaning backward curved blades, dynamically balanced (UNI ISO 1940, Point 1 – Class 6.3), made of electrolytically galvanized steel.
• 1 speed single phase AC motor with shaft turning in ball bearings, size to UNEL MEC standard, flange B5, self-ventilating. Motor insulation class H, with metal cooling fan and cable gland.
• Maximum air flow: 2200 m3/h.
• Equipped with a motor start capacitor that must be installed remotely from the fan so that it cannot be damaged through direct exposure to heat.
• Galvanized steel eye lugs for transport and lifting/handling operations.
• Cable guaranteeing continuity of earth connection.
• Steel safety wire for anchoring appliances once installed.
• Vortice speed controller.
Read full descriptionClose description

Certifications

torrette_tr_ed_v_ambiente01
torrette_tr_ed_v_ambiente02
torrette_tr_ed_v_ambiente03

Technical Data Sheet

  • Frequency (Hz)
    50
  • Insulation class
  • Max absorbed current (A)
    1,20
  • Max absorbed power (W)
    250
  • Max ambient temperature for continuous operation (°C)
    90
  • Motor protection IP
    55
  • Nominal diameter (mm)
    250
  • Number of phases (Ph)
    1
  • Number of poles
    4
  • Voltage (V)
    230
  • Weight (Kg)
    61
  • Max airflow (l/s)
    611
  • Max airflow (m³/h)
    2200
  • Max pressure (mmH2O)
    34
  • Max pressure (Pa)
    334
  • RPM
    1400
  • Sound pressure Lp [dB (A)] at 3 m
    68
  • Dimension Q (mm)
    11
  • Dimension R (mm)
    40
  • Size A (mm)
    907
  • Size B (mm)
    550
  • Size C (mm)
    500
  • Size D (mm)
    580
  • Size E (mm)
    432
  • Size F (mm)
    38
  • Size G (mm)
    25
  • Size H (mm)
    653
  • Size L (mm)
    231
  • Size M (mm)
    236,5
  • Size N (mm)
    359
quota

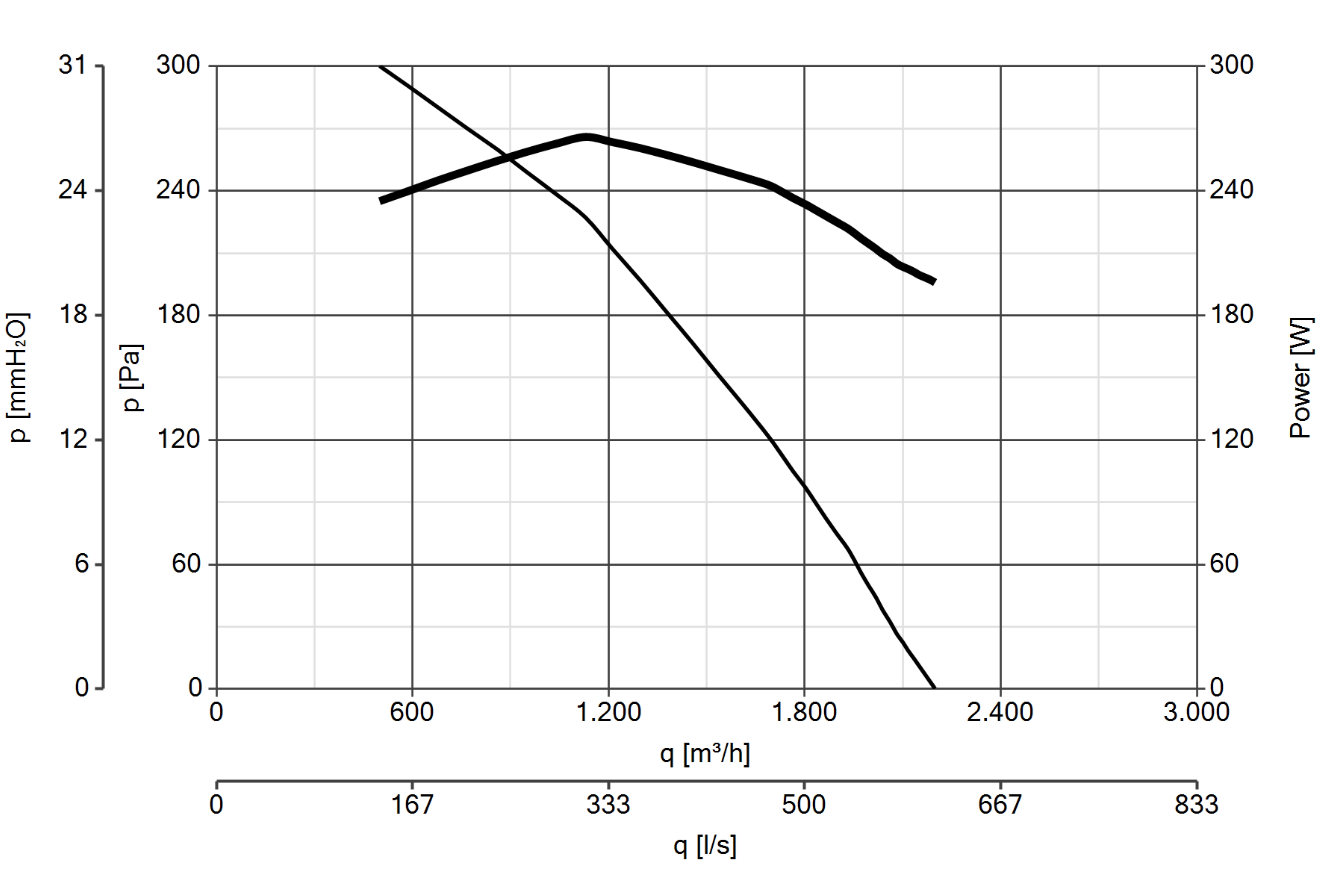

Curva_JPG_15164-Curve_per_Catalogo
Interested?
If you are interested in this product, contact us or locate your nearest Vortice dealer.
Documentation
You can see all the documentation relating to this product: price list, information booklet and wiring diagram.

Accessories

Discover accessories related to the product

TR-CU 20/30/50 (CONTROTELAIO DI BASE U)
TR-CU 20/30/50 (CONTROTELAIO DI BASE U)
Installation base counter-frame.

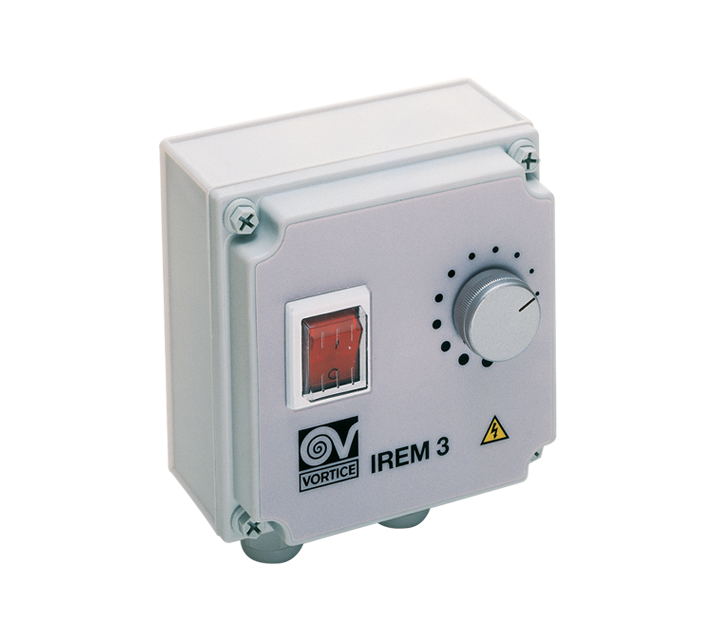

IREM 3                       CD 99250080
IREM 3 CD 99250080
• Single-phase electronic speed controller
IREM INVERTER 4 M
IREM INVERTER 4 M
Single-phase speed controller
GV2 ME06
GV2 ME06
Thermal-Magnetic motor circuit breaker for ATEX industrial fans.
TR-G 20/30/50 (GRIGLIA DI PROTEZIONE)
TR-G 20/30/50 (GRIGLIA DI PROTEZIONE)
Intake port protection grille for use when the unit is mounted within reach.
