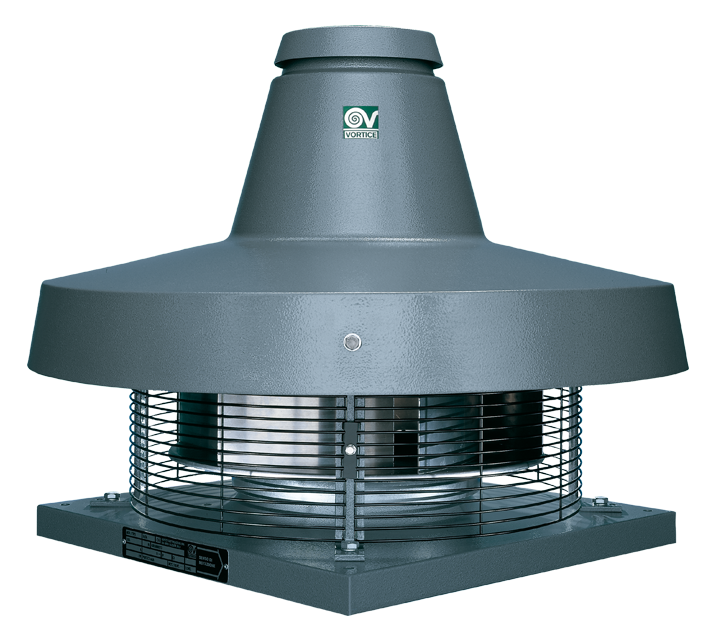

TORRETTA TRT 70 E 6P

• Base manufactured from phosphated pressed steel, epoxy powder coated with hammered effect finish, guaranteeing long-term resistance to atmospheric agents.
• Aerodynamically contoured inlet port for optimum performance, fashioned as a single unit with the base and gauged to optimize air flow.
• Pressed steel motor cover: pickled and phosphated surface, polyester powder coated and oven baked finish, colour grey, with hammered texture.

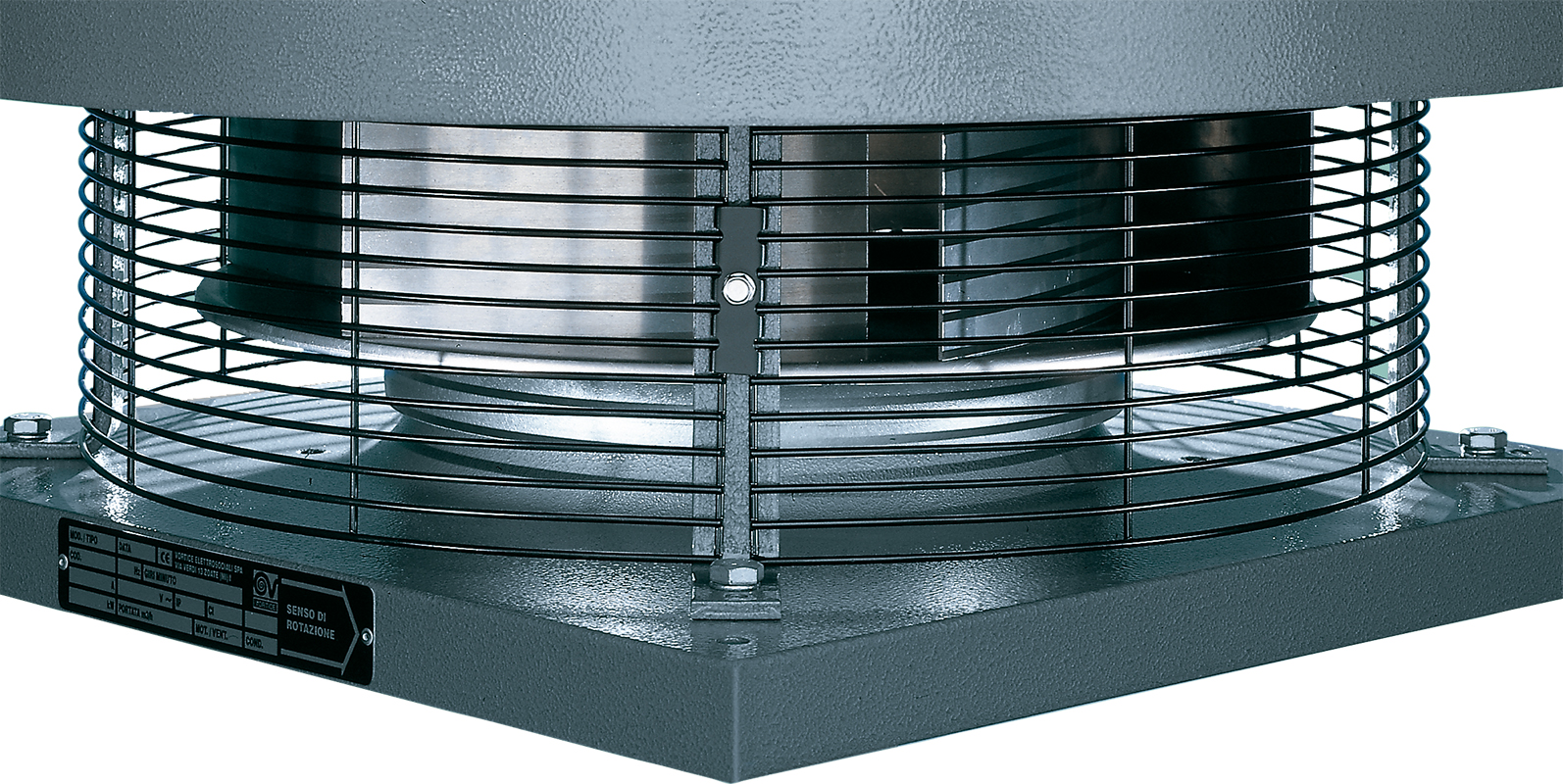

• Accident prevention and anti-bird grilles (to UNI ISO 13857 standard), consisting of electrically welded steel rings with epoxy powder coated finish, colour black.
• Centrifugal impeller with self-cleaning backward curved steel blades, hot-dip galvanized and dynamically balanced (UNI ISO 1940, Point 1 – Class 6.3), and splined aluminium hub.
• 1 speed three phase AC motor, insulation class F, with shaft turning in double shielded ball bearings.
• Maximum airflow: 7000 m3/h
• Motor and fan designed for operation in ambient temperatures higher than 65 °C.
• Cooling fan for better dissipation of heat
• Galvanized steel eye lugs for transport and lifting/handling operations.
• Cable guaranteeing continuity of earth connection.
• Steel safety wire for anchoring the appliance once installed.

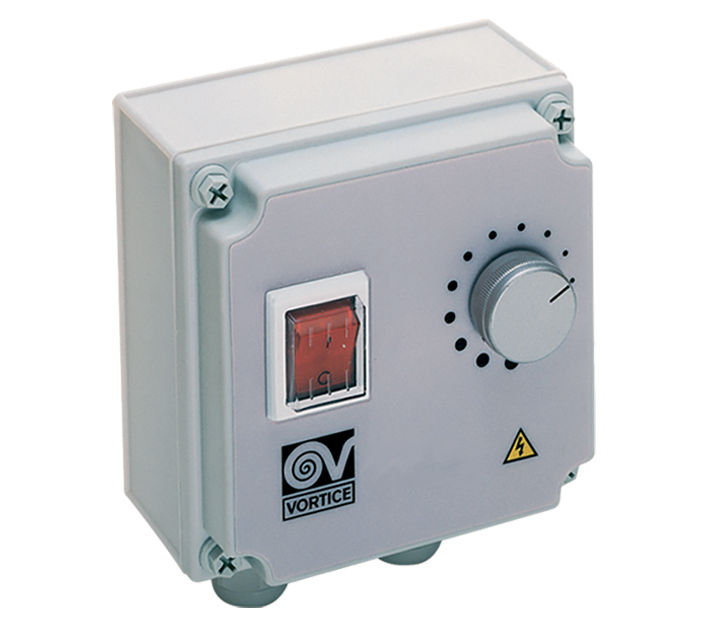

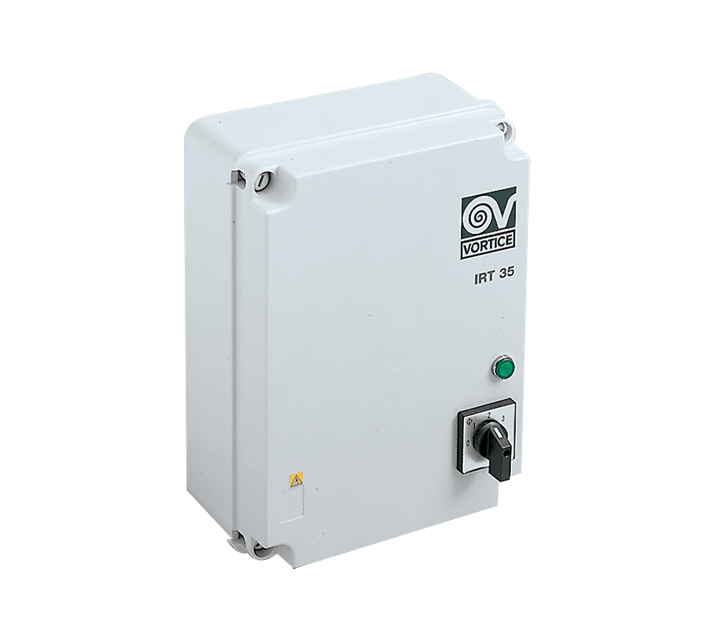

• Vortice speed controller.
