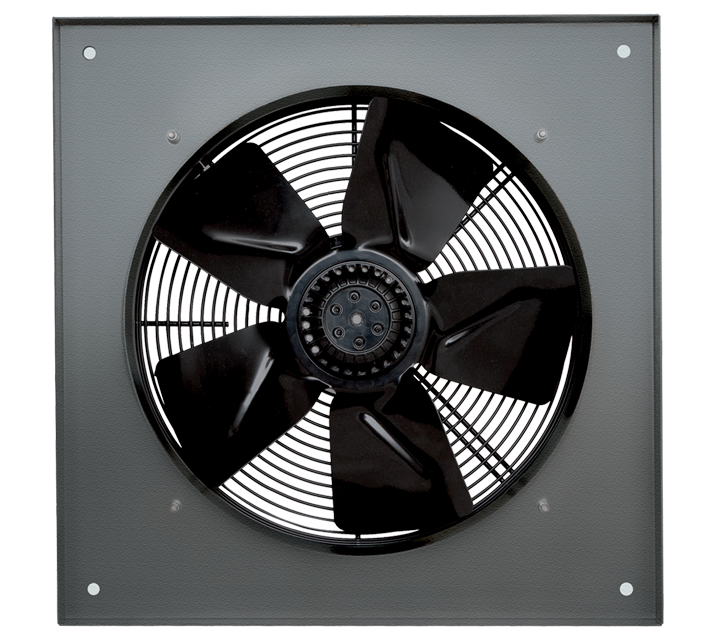

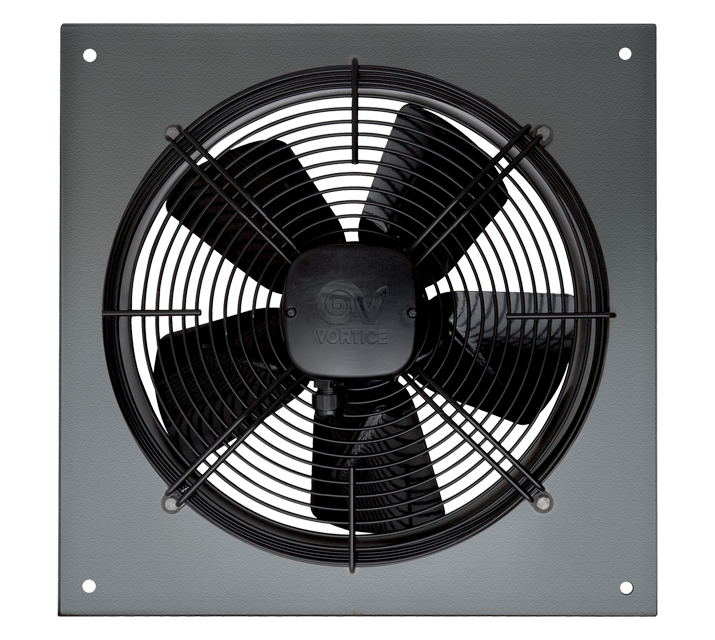

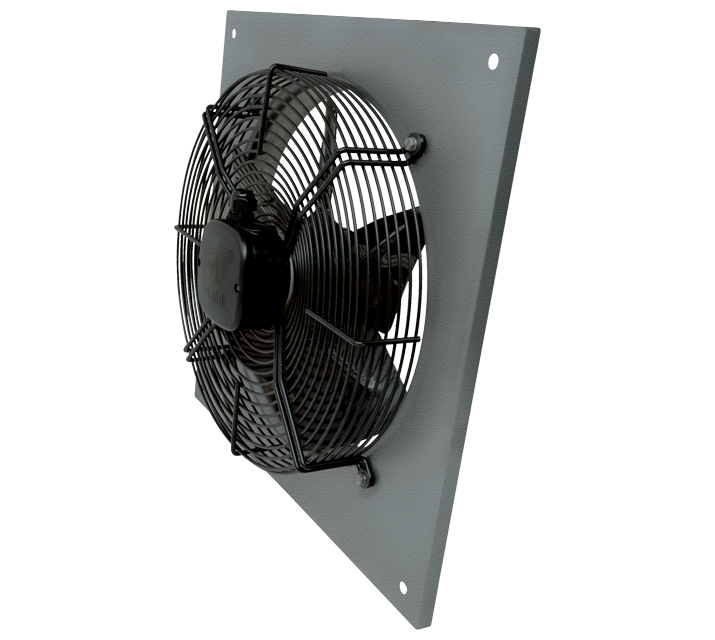

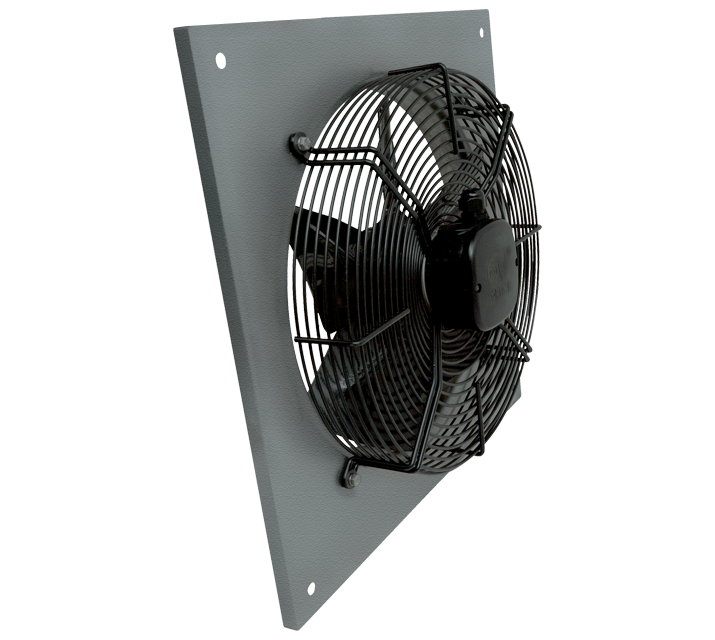

Description
• Compact plate axial fans.
• Three-phase model.
• Phosphated sheet steel panels, painted with epoxy powder, in
grey with a hammered effect, resistant to atmospheric agents.
• Thermo-protected AC motor class F with external rotor, one
speed, equipped with ball bearings.
• High aeraulic performance impellers with electro-galvanised sheet
steel blades, painted with polyester paint, in black. 4 blades.
• Low noise levels.
• Support grilles offering accident protections and functioning as an
anti-bird guards, in electro-welded steel rings painted with black
epoxy paint, easy to remove for maintenance.
• Wide range of continuous operation temperatures between -30°C
and +50°C.
• Electric supply 400 V / 50 Hz for single phase models.
• Protection motor: IP54.
• Insulation class: I.
• Conforms to the requirements of the regulation N° 327/2011/UE
(Lot 11, 1st Tier) set out by the EUP/ErP Directive, effective as of
01.01.2013.
• Three-phase model.
• Phosphated sheet steel panels, painted with epoxy powder, in
grey with a hammered effect, resistant to atmospheric agents.
• Thermo-protected AC motor class F with external rotor, one
speed, equipped with ball bearings.
• High aeraulic performance impellers with electro-galvanised sheet
steel blades, painted with polyester paint, in black. 4 blades.
• Low noise levels.
• Support grilles offering accident protections and functioning as an
anti-bird guards, in electro-welded steel rings painted with black
epoxy paint, easy to remove for maintenance.
• Wide range of continuous operation temperatures between -30°C
and +50°C.
• Electric supply 400 V / 50 Hz for single phase models.
• Protection motor: IP54.
• Insulation class: I.
• Conforms to the requirements of the regulation N° 327/2011/UE
(Lot 11, 1st Tier) set out by the EUP/ErP Directive, effective as of
01.01.2013.
Certifications
-
Download
CE
-
EAC
Technical Data Sheet
-
Frequency (Hz)50
-
Insulation classI°
-
IP54
-
Max absorbed current (A)1.06
-
Max absorbed power (W)480
-
Max ambient temperature for continuous operation (°C)50
-
Motor protection IP54
-
Nominal diameter (mm)560
-
Number of phases (Ph)3
-
Number of poles6
-
Voltage (V)380-415
-
Weight (Kg)20.8
-
Max airflow (l/s)2236
-
Max airflow (m³/h)8050
-
Max pressure (Pa)175
-
Max pressure at Max speed (mmH20)17,8
-
RPM1000
-
Sound power Lw [dB(A)]77.2
-
Sound pressure at 1m calculated in free field Lp [dB(A)]66.2
-
Sound pressure at 3m calculated in free field Lp [dB(A)]56.7
-

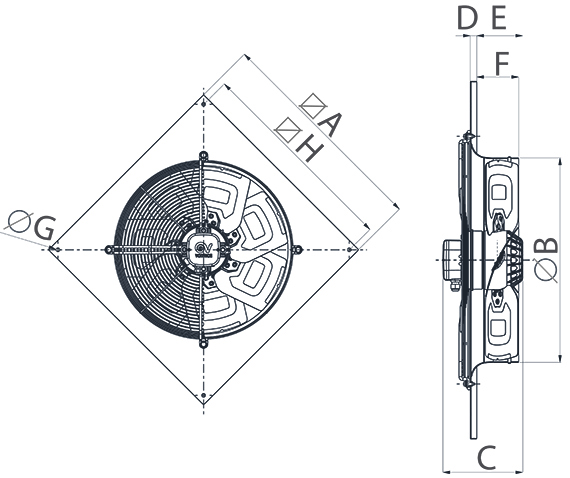

Size A (mm)725
-
Size B (mm)563
-
Size C (mm)218
-
Size D (mm)16
-
Size E (mm)131
-
Size F (mm)105
-
Size G (mm)11
-
Size H (mm)675
