Description

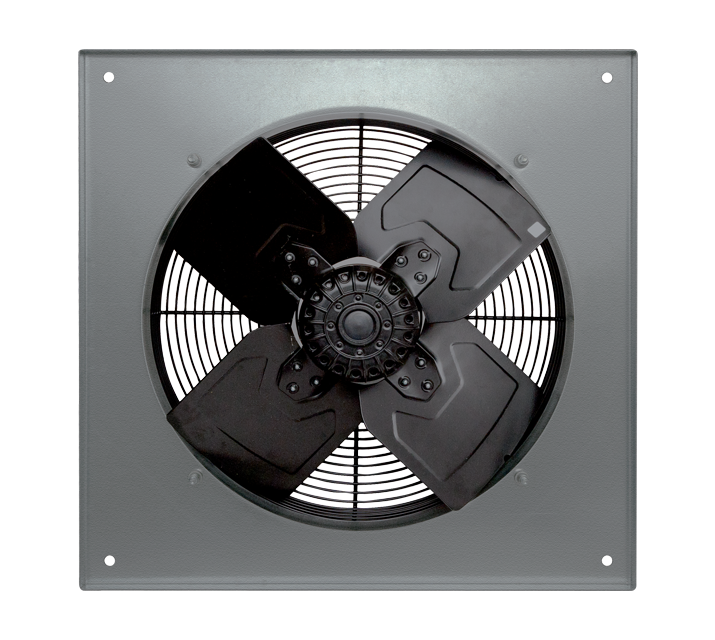

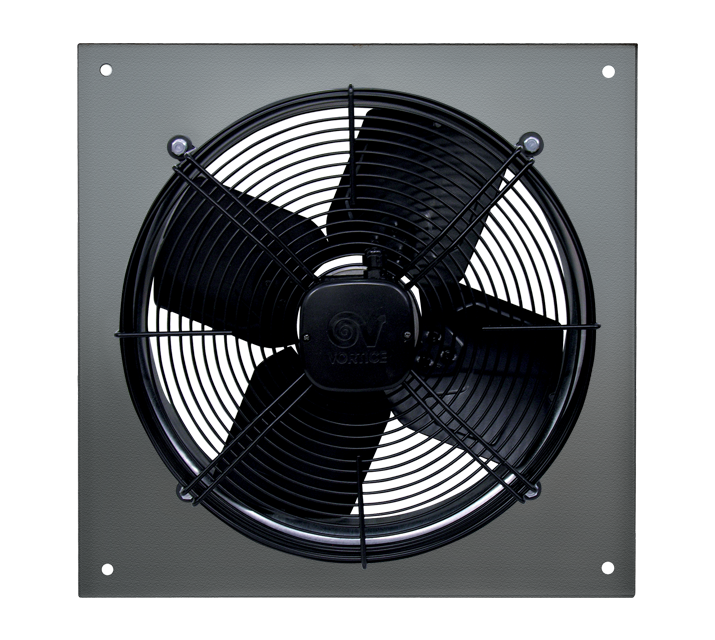

• Nominal diameter 500 mm
• Panels made of pressed steel, phosphated and epoxy powder coated with hammered effect finish, guaranteeing long-term resistance to atmospheric agents.
• Ventilation port fashioned in one piece with the panel, gauged to optimize air flow, aerodynamically contoured and elongated to optimize performance and facilitate connection to the relative duct.
• Protective grille (in accordance with UNI ISO 13857 standard) combining the function of motor bracket, made of electrically welded steel with epoxy paint finish, colour black. Easy removal simplifies maintenance and cleaning of the fan.
• 1 speed single phase AC motor of external rotor type designed to minimize axial dimensions, with shaft turning in ball bearings, insulation class F, thermal overload protection.
• Dynamically balanced impeller (UNI ISO 1940, Point 1 – Class 6.3); 4 pressed steel blades, electrolytically galvanized and polyester powder-coated, colour black.
• Vortice speed controller.
Read full descriptionClose description

Certifications

vorticel_a_e_ambiente01
vorticel_a_e_ambiente02

Technical Data Sheet

  • Frequency (Hz)
    50/60*
  • Insulation class
  • IP
    54
  • Max absorbed current (A)
    2,12
  • Max absorbed power (W)
    482
  • Max ambient temperature for continuous operation (°C)
    50
  • Motor protection IP
    54
  • Nominal diameter (mm)
    500
  • Number of phases (Ph)
    1
  • Number of poles
    4
  • Voltage (V)
    220-240
  • Weight (Kg)
    13,2
  • Max airflow (l/s)
    1844
  • Max airflow (m³/h)
    6639
  • Max pressure (Pa)
    186
  • Max pressure at Max speed (mmH20)
    19,0
  • RPM
    1400
  • Sound power Lw [dB(A)]
    79,5
  • Sound pressure at 1m calculated in free field Lp [dB(A)]
    68,5
  • Sound pressure at 3m calculated in free field Lp [dB(A)]
    59,0


* Technical datas above refer to the product powered at 50 Hz.
For values for 60 Hz power supply, please contact the VORTICE Presales Service at prevendita@vortice-italy.com.

  • Size A (mm)
    630
  • Size B (mm)
    507
  • Size C (mm)
    218
  • Size D (mm)
    15
  • Size E (mm)
    72
  • Size F (mm)
    30
  • Size G (mm)
    11
  • Size H (mm)
    530

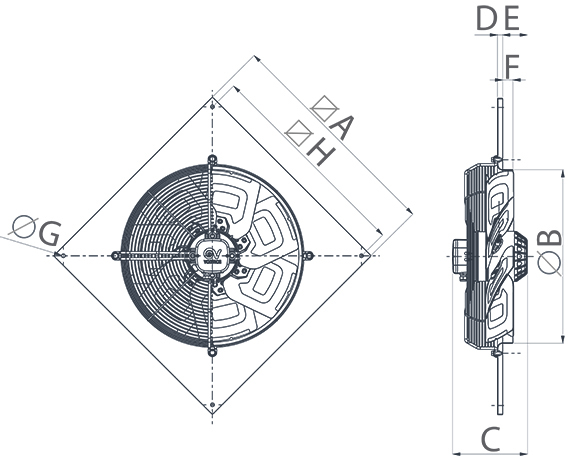

quota

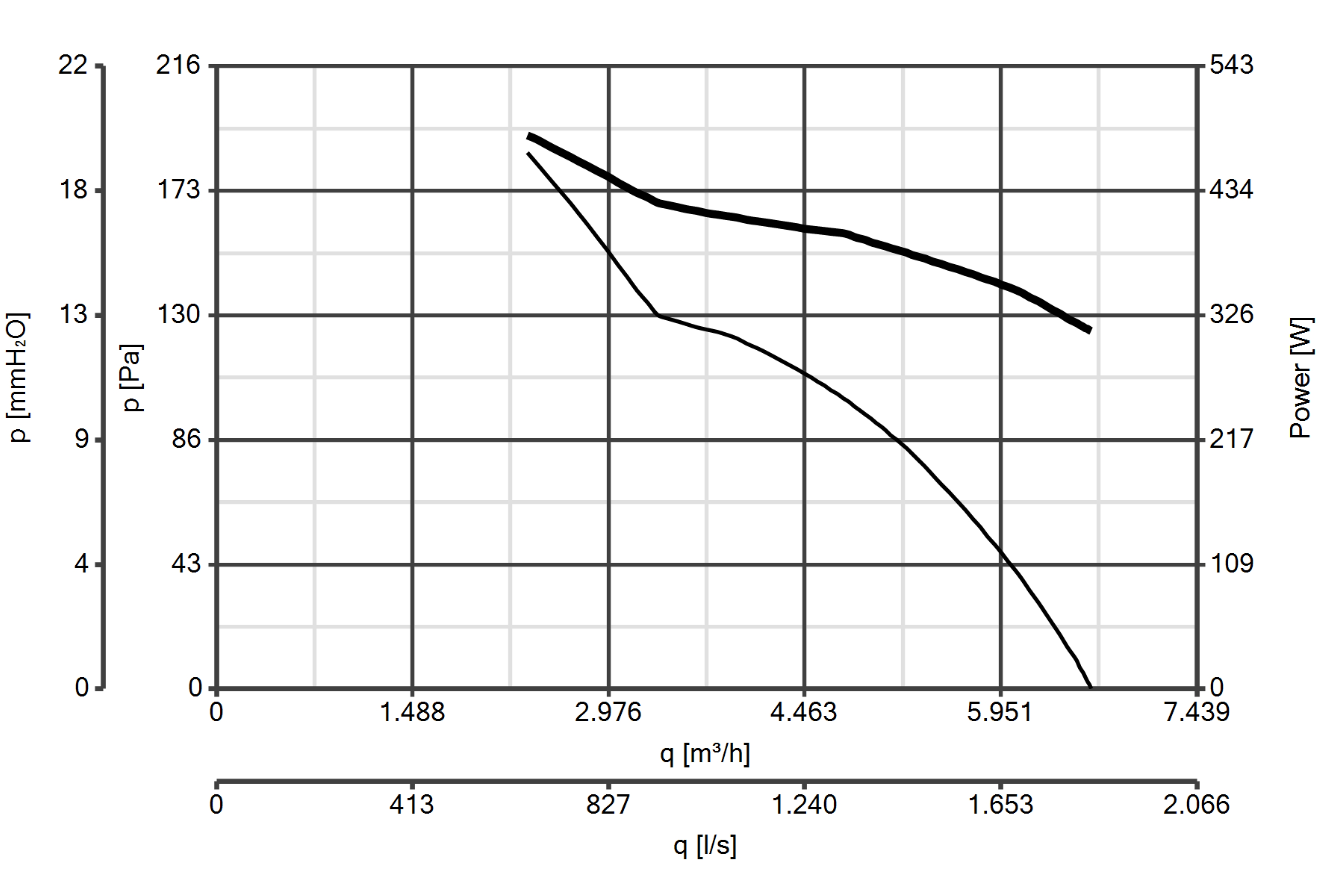

Curva_JPG_42316-Curve_per_Catalogo

Accessories

Discover accessories related to the product

IREM 3                       CD 99250080
IREM 3 CD 99250080
• Single-phase electronic speed controller
IREM INVERTER 4 M
IREM INVERTER 4 M
Single-phase speed controller
PGR 450/500 (PERSIANA GRAVITA')
PGR 450/500 (PERSIANA GRAVITA')
• Gravity type shutter for preventing air backdraught or rain penetration when the unit is turned off.
TRA 450/500  (TELAIO CON RETE ANTINF.)
TRA 450/500 (TELAIO CON RETE ANTINF.)

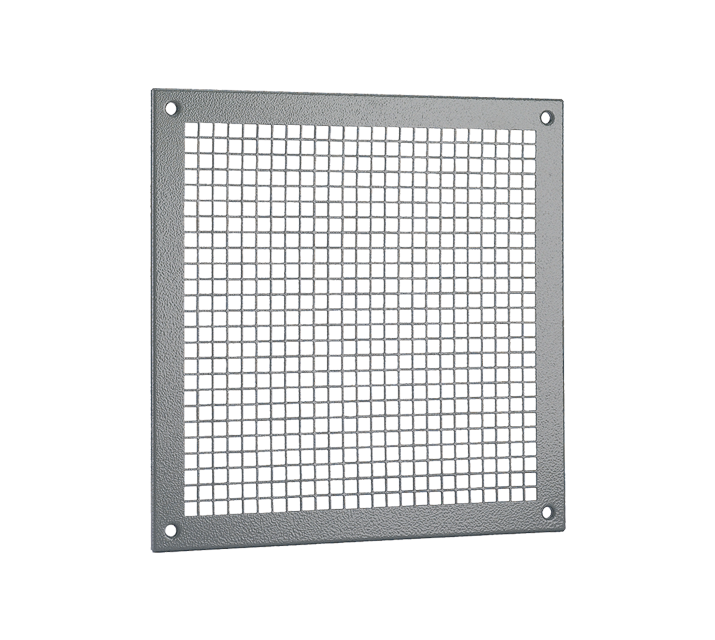

• Outlet port protection grille for use when the unit is mounted within reach.
