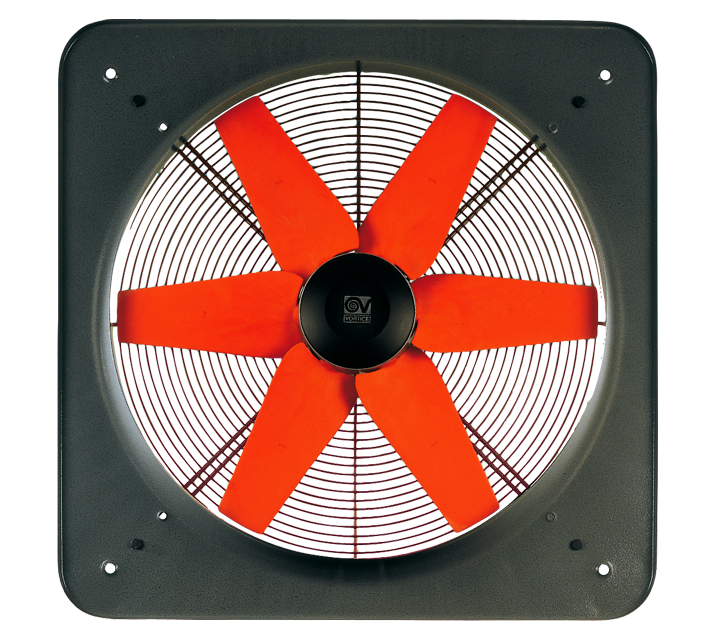

Description
• Nominal diameter 300 mm
• Wall-mounting panel manufactured from phosphated pressed steel, polyester powder coated with hammered effect finish, guaranteeing long-term resistance to atmospheric agents.
• Ventilation port fashioned in one piece with the panel and gauged to optimize air flow.
• Protective grille (in accordance with UNI ISO 13857 standard) combining the function of motor bracket, made of electrically welded steel with epoxy paint finish, colour black. Easy removal simplifies maintenance and cleaning of the fan.
• 1 speed asynchronous three-phase AC motor with shaft turning in double shielded ball bearings, insulation class F.
• Maximum air flow: 2,400 m3/h.
• Impeller with 6 wing profile blades keyed to a diecast aluminium hub and dynamically balanced (UNI ISO 1940 – Balancing class 6.3), optimized to deliver maximum performance and low noise levels, moulded from filled polypropylene for superior dimensional stability and resistance to atmospheric agents.
• Vortice speed controller.
• Wall-mounting panel manufactured from phosphated pressed steel, polyester powder coated with hammered effect finish, guaranteeing long-term resistance to atmospheric agents.
• Ventilation port fashioned in one piece with the panel and gauged to optimize air flow.
• Protective grille (in accordance with UNI ISO 13857 standard) combining the function of motor bracket, made of electrically welded steel with epoxy paint finish, colour black. Easy removal simplifies maintenance and cleaning of the fan.
• 1 speed asynchronous three-phase AC motor with shaft turning in double shielded ball bearings, insulation class F.
• Maximum air flow: 2,400 m3/h.
• Impeller with 6 wing profile blades keyed to a diecast aluminium hub and dynamically balanced (UNI ISO 1940 – Balancing class 6.3), optimized to deliver maximum performance and low noise levels, moulded from filled polypropylene for superior dimensional stability and resistance to atmospheric agents.
• Vortice speed controller.
Certifications
-
EAC
Technical Data Sheet
-
Absorbed current at 220 V (A)0,78
-
Absorbed current at 240 V (A)0,95
-
Absorbed current at 380 V (A)0,44
-
Absorbed current at 415 V (A)0,55
-
Absorbed power at 220-380 V (W)180
-
Absorbed power at 240-415 V (W)200
-
Frequency (Hz)50
-
Insulation classI°
-
Max absorbed current (A)0,95
-
Max absorbed power (W)200
-
Max ambient temperature for continuous operation (°C)70
-
Max temperature of exhaust air (continuous operation)70
-
Motor protection IP44
-
Nominal diameter (mm)315
-
Number of poles2
-
Voltage (V)220/380 240/415
-
Weight (Kg)3,5
-
Max airflow (l/s)667
-
Max airflow (m³/h)2400
-
Max pressure (mmH2O)32,5
-
Max pressure (Pa)319
-
RPM2800
-
Sound pressure Lp [dB (A)] at 3 m65
-

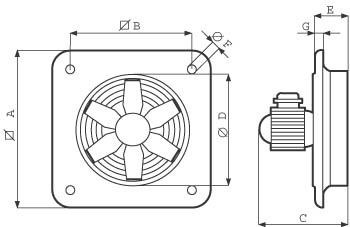

Ø (mm)315
-
Size A (mm)380
-
Size B (mm)330
-
Size C (mm)254
-
Size D (mm)Ø 308
-
Size D3 (mm)Ø 300
-
Size E (mm)70
-
Size F (mm)8
-
Size G (mm)10
Interested?
If you are interested in this product, contact us or locate your nearest Vortice dealer.
Documentation
You can see all the documentation relating to this product: price list, information booklet and wiring diagram.
Accessories
Discover accessories related to the product

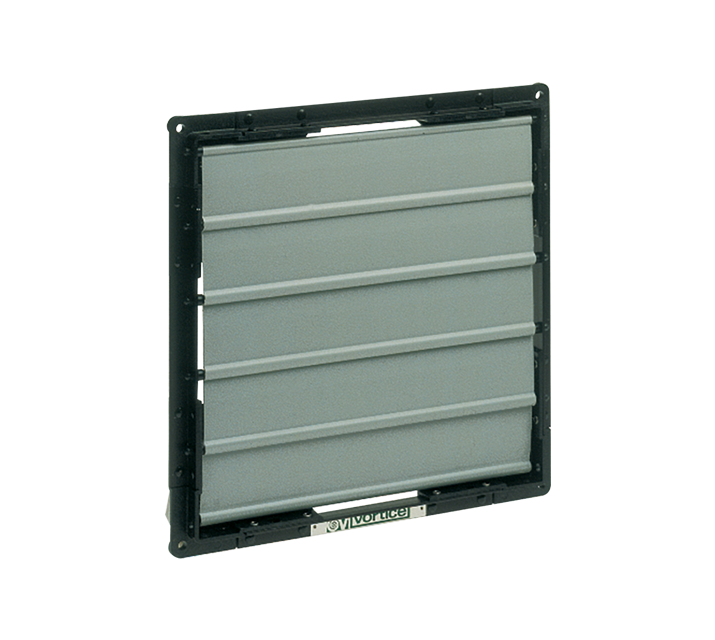

PGR 300 (PERSIANA GRAVITA')
• Gravity type shutter for preventing air backdraught or rain penetration when the unit is turned off.
TRA 300 (TELAIO CON RETE ANTINF.)
• Outlet port protection grille for use when the unit is mounted within reach .

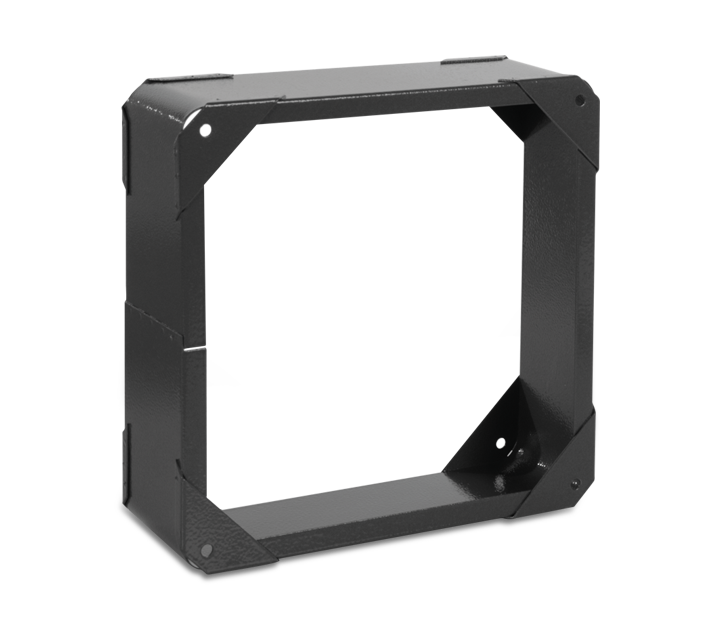

DPU 300 (DISTANZIATORE)
• Spacer for panel installation to reduce unit overhang towards the outside; especially useful in case of gratings, roller shutters, etc.
