Code 40333

E 506 T ATEX II 2G/D h T3/125°C X Gb/Db

fakeImg

Description

Read full descriptionClose description

Technical Data Sheet

  • Frequency (Hz)
    50
  • Insulation class
    I°
  • IP
    65
  • Max absorbed current (A)
    0,54
  • Max absorbed power (W)
    160
  • Max ambient temperature for continuous operation (°C)
    + 40
  • Min continuous operation room temperature (°C)
    - 20
  • Nominal diameter (mm)
    518
  • Number of phases (Ph)
    3
  • Number of poles
    6
  • Number of speeds
    1
  • Voltage (V)
    400
  • Weight (Kg)
    14,5

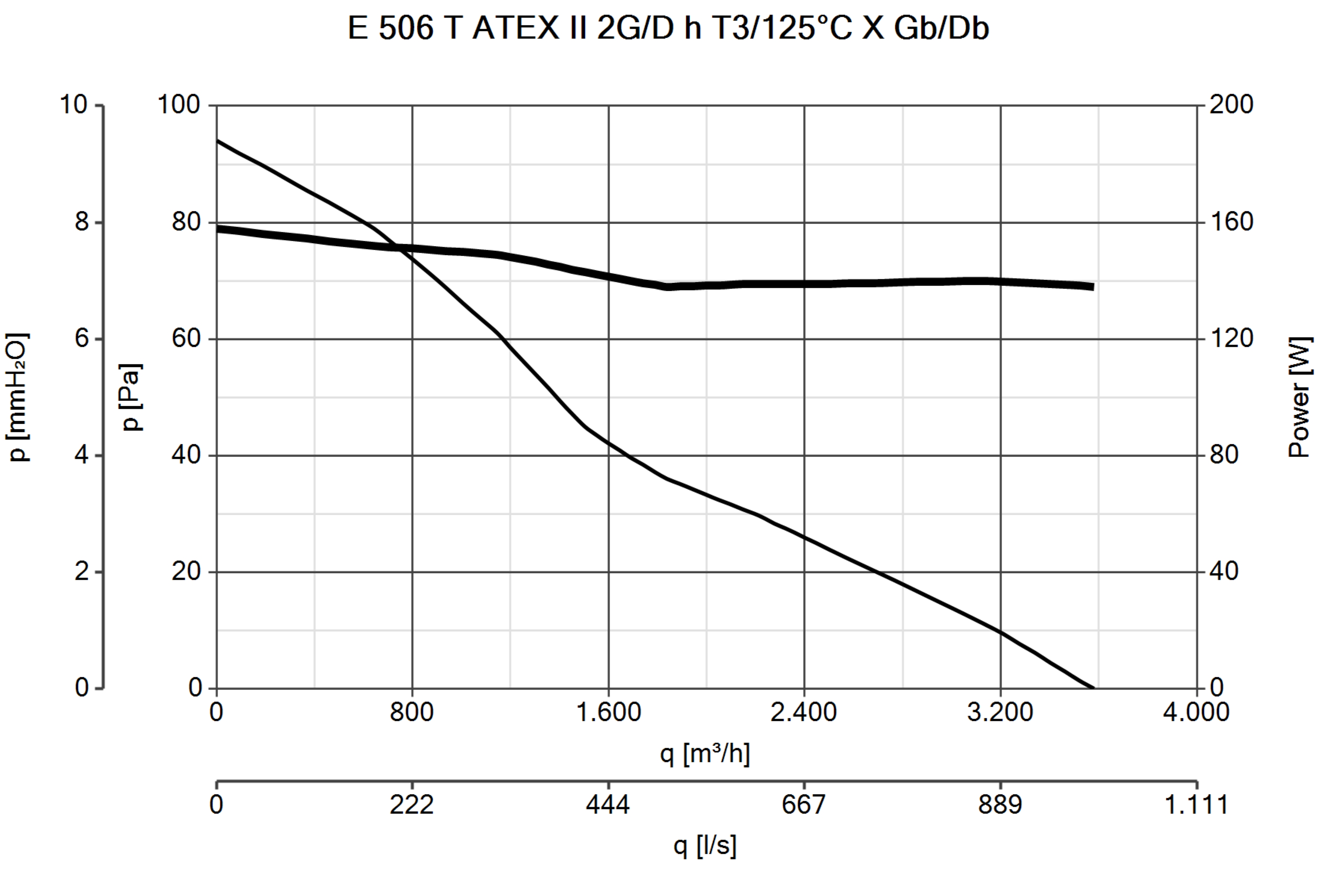

  • Max airflow (l/s)
    994
  • Max airflow (m³/h)
    3580
  • Max pressure (mmH2O)
    9,6
  • Max pressure (Pa)
    94
  • RPM
    1000
  • Sound pressure Lp [dB (A)] at 3 m
    55,7
  • Ø (mm)
    500
  • Size A (mm)
    630
  • Size B (mm)
    630
  • Size C (mm)
    361
  • Size D (mm)
    530
  • Size E (mm)
    510
  • Size F (mm)
    498
  • Size G (mm)
    112
  • Size H (mm)
    12
  • Size L (mm)
    15
  • Size M (mm)
    528
  • Size N (mm)
    518
