Description
Technical Data Sheet
-
Frequency (Hz)50
-
Insulation classI°
-
IP65
-
Max absorbed current (A)0,67
-
Max absorbed power (W)352
-
Max ambient temperature for continuous operation (°C)+ 40
-
Min continuous operation room temperature (°C)- 20
-
Nominal diameter (mm)618
-
Number of phases (Ph)3
-
Number of poles4
-
Number of speeds1
-
Voltage (V)400
-
Weight (Kg)18,0
-

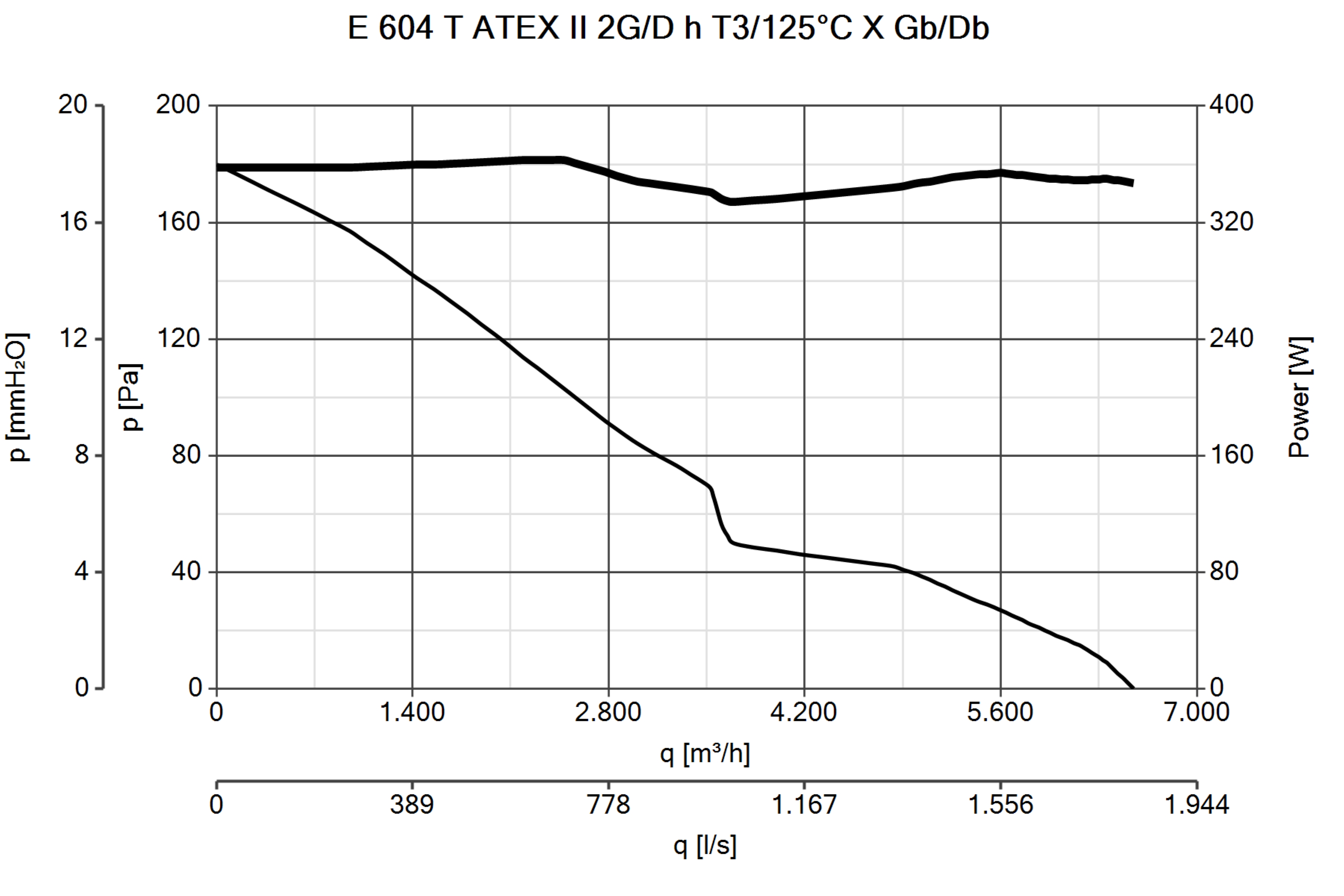

Max airflow (l/s)1819
-
Max airflow (m³/h)6550
-
Max pressure (mmH2O)18,4
-
Max pressure (Pa)180
-
RPM1400
-
Sound pressure Lp [dB (A)] at 3 m67,0
-
Ø (mm)630
-
Size A (mm)760
-
Size B (mm)760
-
Size C (mm)340
-
Size D (mm)630
-
Size E (mm)610
-
Size F (mm)598
-
Size G (mm)127
-
Size H (mm)12
-
Size L (mm)15
-
Size M (mm)628
-
Size N (mm)618
