Code 40328

E 404 T ATEX II 2G/D h T3/125°C X Gb/Db

fakeImg

Description

Read full descriptionClose description

Technical Data Sheet

  • Frequency (Hz)
    50
  • Insulation class
    I°
  • IP
    65
  • Max absorbed current (A)
    0,58
  • Max absorbed power (W)
    257
  • Max ambient temperature for continuous operation (°C)
    + 40
  • Min continuous operation room temperature (°C)
    - 20
  • Nominal diameter (mm)
    418
  • Number of phases (Ph)
    3
  • Number of poles
    4
  • Number of speeds
    1
  • Voltage (V)
    400
  • Weight (Kg)
    10,5

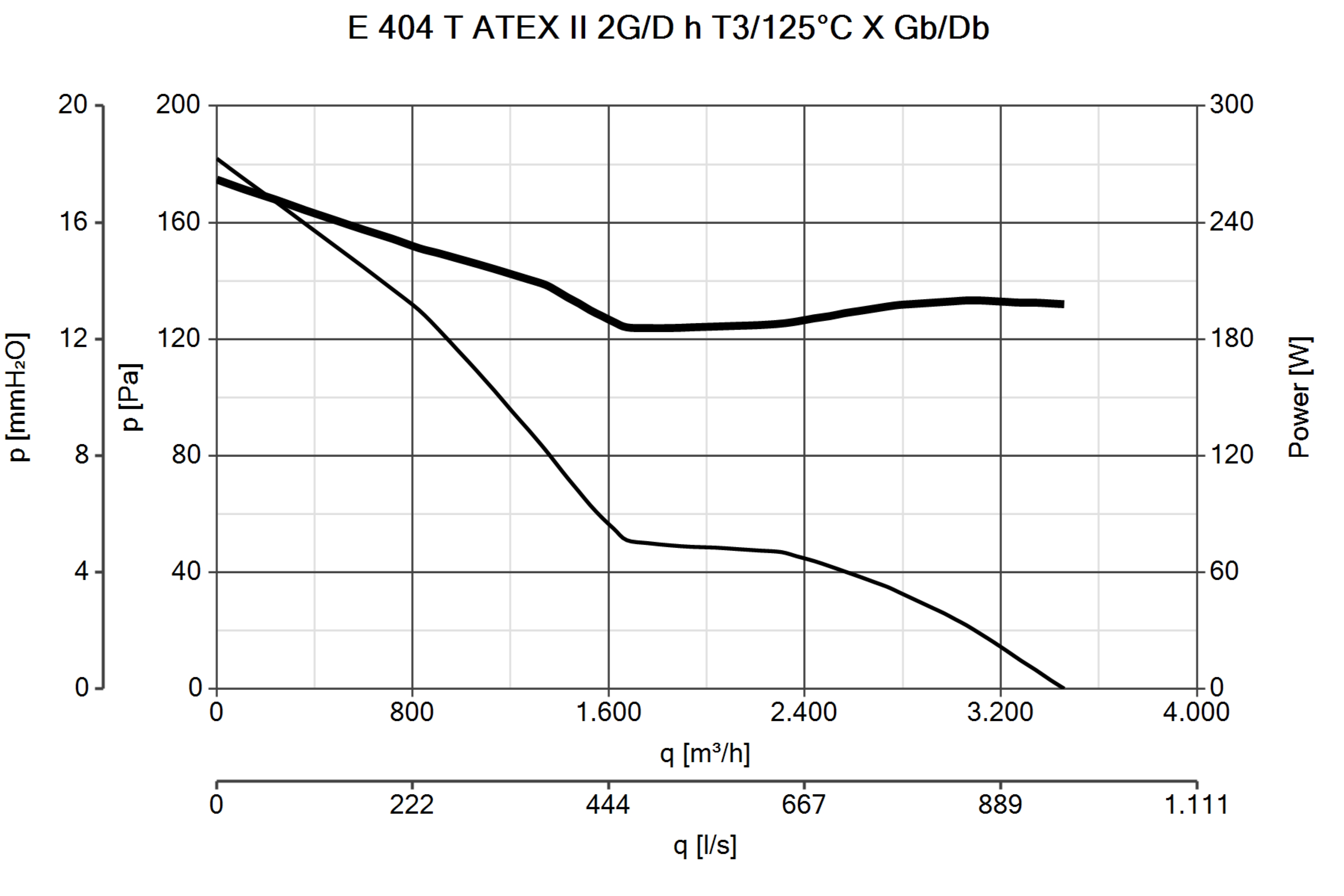

  • Max airflow (l/s)
    961
  • Max airflow (m³/h)
    3460
  • Max pressure (mmH2O)
    18,6
  • Max pressure (Pa)
    182
  • RPM
    1400
  • Sound pressure Lp [dB (A)] at 3 m
    56,8
  • Ø (mm)
    400
  • Size A (mm)
    510
  • Size B (mm)
    510
  • Size C (mm)
    327
  • Size D (mm)
    430
  • Size E (mm)
    410
  • Size F (mm)
    400
  • Size G (mm)
    117
  • Size H (mm)
    12
  • Size L (mm)
    15
  • Size M (mm)
    428
  • Size N (mm)
    418
