Code 40324

E 454 M ATEX II 2G/D h T3/125°C X Gb/Db

fakeImg

Description

Read full descriptionClose description

Technical Data Sheet

  • Frequency (Hz)
    50
  • Insulation class
    I°
  • IP
    65
  • Max absorbed current (A)
    1,47
  • Max absorbed power (W)
    315
  • Max ambient temperature for continuous operation (°C)
    + 40
  • Min continuous operation room temperature (°C)
    - 20
  • Nominal diameter (mm)
    468
  • Number of phases (Ph)
    1
  • Number of poles
    4
  • Number of speeds
    1
  • Voltage (V)
    230
  • Weight (Kg)
    14

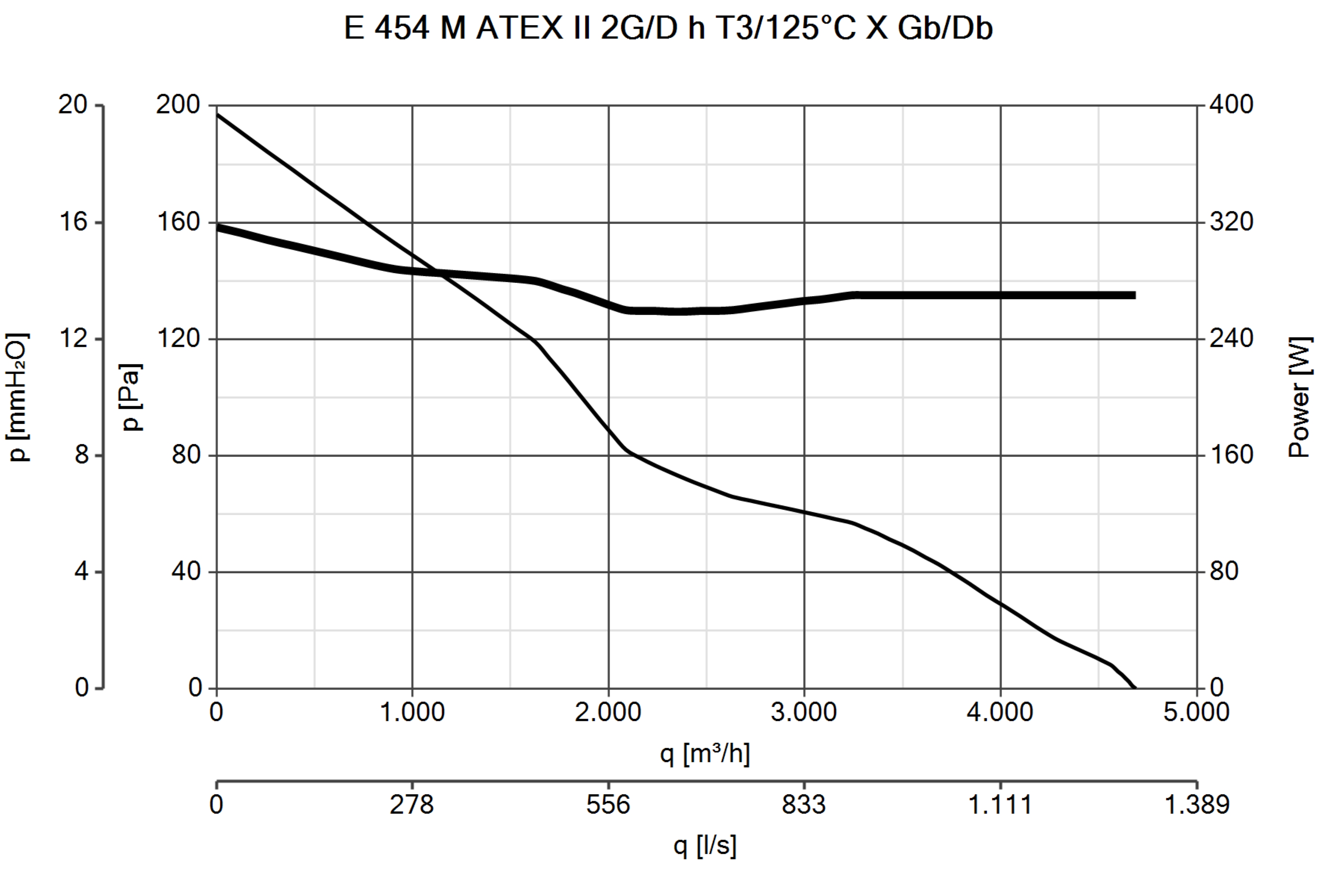

  • Max airflow (l/s)
    1302
  • Max airflow (m³/h)
    4690
  • Max pressure (mmH2O)
    20,1
  • Max pressure (Pa)
    197
  • RPM
    1400
  • Sound pressure Lp [dB (A)] at 3 m
    66,8
  • Ø (mm)
    450
  • Size A (mm)
    630
  • Size B (mm)
    630
  • Size C (mm)
    325
  • Size D (mm)
    530
  • Size E (mm)
    460
  • Size F (mm)
    448
  • Size G (mm)
    112
  • Size H (mm)
    12
  • Size L (mm)
    15
  • Size M (mm)
    478
  • Size N (mm)
    468
