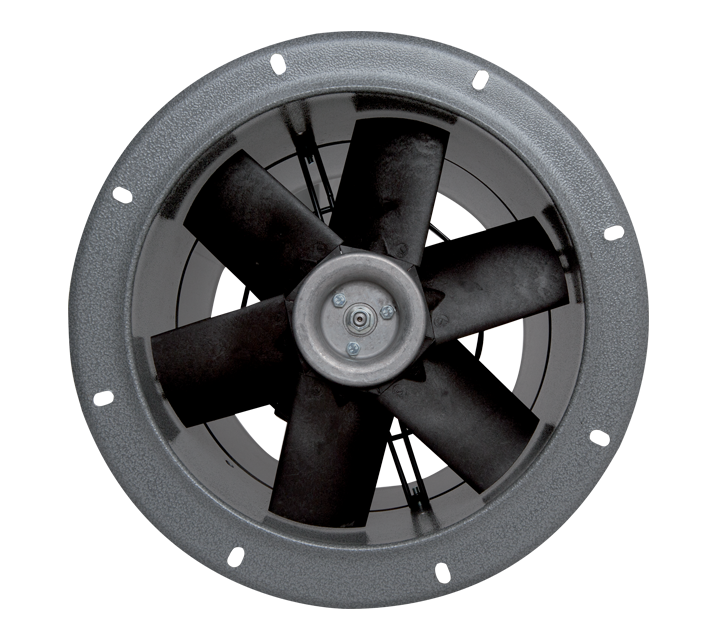

Description
• Nominal diameter 350 mm
• 2 rolled steel flange sections, welded, phosphated and polyester powder coated in practical grey colour with hammered effect finish, guaranteeing long-term resistance to atmospheric agents.
• 1 speed three-phase AC motor with shaft turning in double shielded ball bearings, insulation class F.
• Maximum air flow: 3,770 m3/h.
• Impeller with 6 wing profile blades, dynamically balanced (UNI ISO 1940 – Balancing class 6.3), optimized to deliver maximum performance and low noise levels, moulded from filled polypropylene for superior dimensional stability and resistance to atmospheric agents, and keyed to a diecast aluminium hub.
• Vortice speed controller.
• 2 rolled steel flange sections, welded, phosphated and polyester powder coated in practical grey colour with hammered effect finish, guaranteeing long-term resistance to atmospheric agents.
• 1 speed three-phase AC motor with shaft turning in double shielded ball bearings, insulation class F.
• Maximum air flow: 3,770 m3/h.
• Impeller with 6 wing profile blades, dynamically balanced (UNI ISO 1940 – Balancing class 6.3), optimized to deliver maximum performance and low noise levels, moulded from filled polypropylene for superior dimensional stability and resistance to atmospheric agents, and keyed to a diecast aluminium hub.
• Vortice speed controller.
Certifications
-
Download
CE
-
EAC
Technical Data Sheet
-
Frequency (Hz)50
-
Insulation classI°
-
IPX4
-
Max absorbed current (A)0.30
-
Max absorbed power (W)155
-
Max ambient temperature for continuous operation (°C)70
-
Min continuous operation room temperature (°C)-25
-
Nominal diameter (mm)350
-
Number of phases (Ph)3
-
Number of poles4
-
Voltage (V)400
-
Weight (Kg)13,4
-
Max airflow (l/s)986
-
Max airflow (m³/h)3550
-
Max pressure (mmH2O)15.9
-
Max pressure (Pa)156
-
RPM1425
-
Sound power Lw [dB(A)]66.7
-
Sound pressure Lp [dB (A)] at 3 m46.2
-

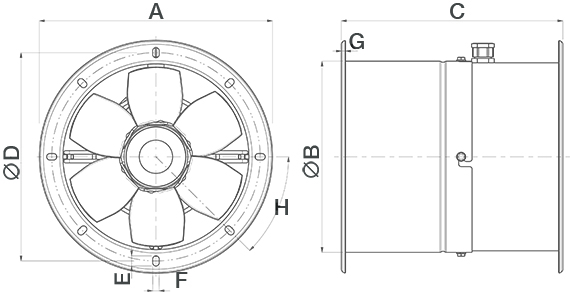

Size A (mm)ø 432
-
Size B (mm)ø 368
-
Size C (mm)330
-
Size D (mm)ø 405
-
Size E (mm)14
-
Size F (mm)9
-
Size G (mm)4
-
Size H (mm)45°
Interested?
If you are interested in this product, contact us or locate your nearest Vortice dealer.
Documentation
You can see all the documentation relating to this product: price list, information booklet and wiring diagram.
Accessories
Discover accessories related to the product
MPC BO 350 (BOCCAGLIO)
• Intake nozzle for fixing to the intake side to optimize intake and reduce noise level.
MPC RA 350 (RACCORDO FLESSIBILE)
• Flexible fitting for making a non-rigid connection to compensate for distance or for reducing vibration.
MPC FL 350 (FLANGIA)
• Flange fitting to replace the one supplied with the unit, for reducing the unit’s size and permitting normal anchoring to the duct.
MPC RP 350 (RETE DI PROTEZIONE)
• Protection grille for use when the unit is mounted within reach.
