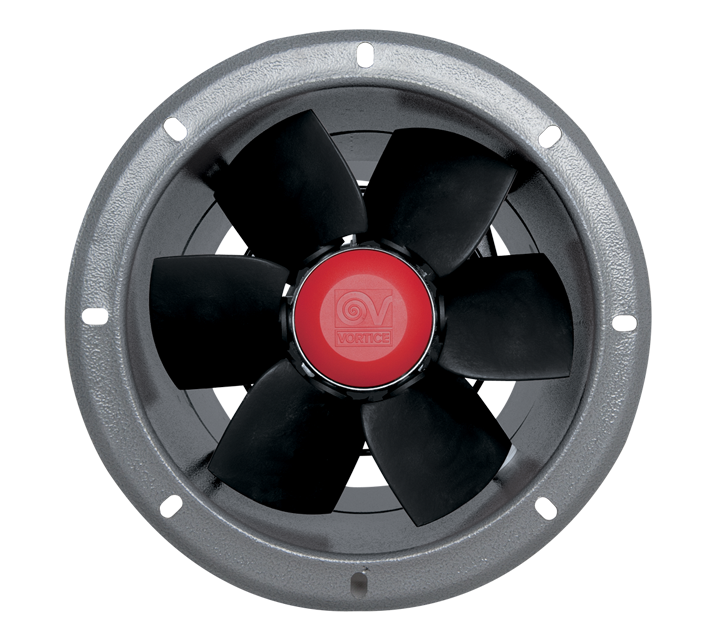

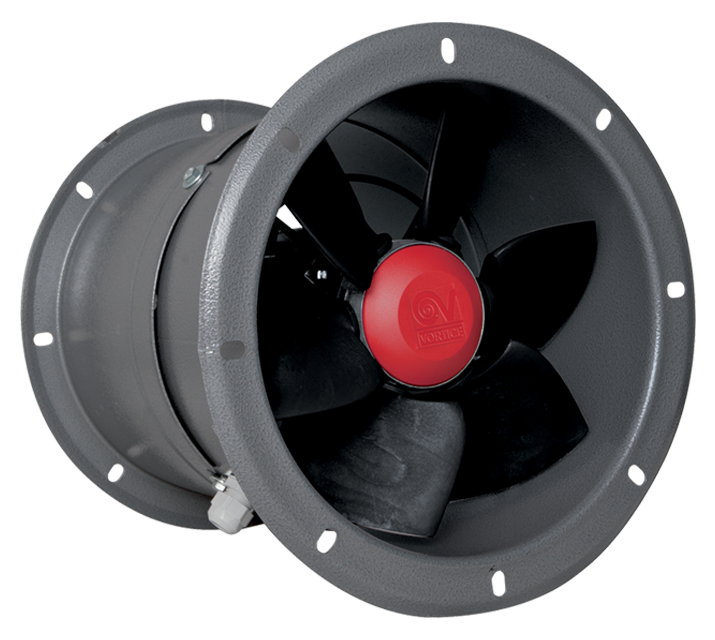

Description
• Nominal diameter 300 mm
• 2 rolled steel flange sections, welded, phosphated and polyester powder coated in practical grey colour with hammered effect finish, guaranteeing long-term resistance to atmospheric agents.

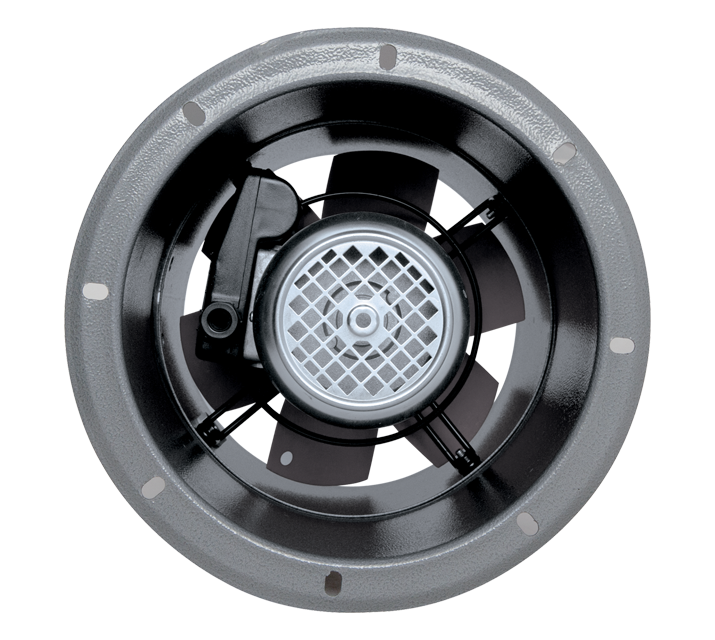

• 1 speed three-phase AC motor with shaft turning in double shielded ball bearings, insulation class F.
• Maximum air flow: 2,250 m3/h.
• Impeller with 6 wing profile blades, dynamically balanced (UNI ISO 1940 – Balancing class 6.3), optimized to deliver maximum performance and low noise levels, moulded from filled polypropylene for superior dimensional stability and resistance to atmospheric agents, and keyed to a diecast aluminium hub.

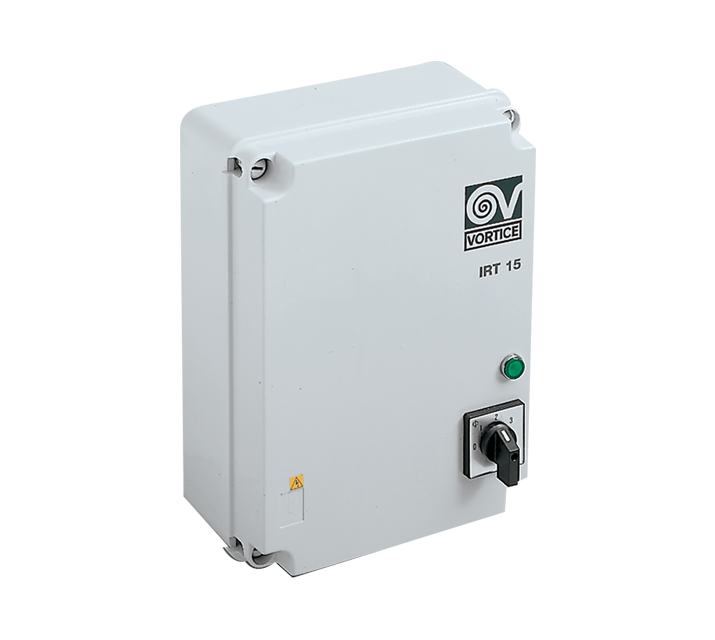

• Vortice speed controller.
• 2 rolled steel flange sections, welded, phosphated and polyester powder coated in practical grey colour with hammered effect finish, guaranteeing long-term resistance to atmospheric agents.
• 1 speed three-phase AC motor with shaft turning in double shielded ball bearings, insulation class F.
• Maximum air flow: 2,250 m3/h.
• Impeller with 6 wing profile blades, dynamically balanced (UNI ISO 1940 – Balancing class 6.3), optimized to deliver maximum performance and low noise levels, moulded from filled polypropylene for superior dimensional stability and resistance to atmospheric agents, and keyed to a diecast aluminium hub.
• Vortice speed controller.
Certifications
-
Download
CE
-
EAC
Technical Data Sheet
-
Frequency (Hz)50
-
Insulation classI°
-
IPX4
-
Max absorbed current (A)0,24
-
Max absorbed power (W)107
-
Max ambient temperature for continuous operation (°C)70
-
Min continuous operation room temperature (°C)-25
-
Motor protection IP55
-
Nominal diameter (mm)300
-
Number of phases (Ph)3
-
Number of poles4
-
Voltage (V)380-415
-
Weight (Kg)10,2
-

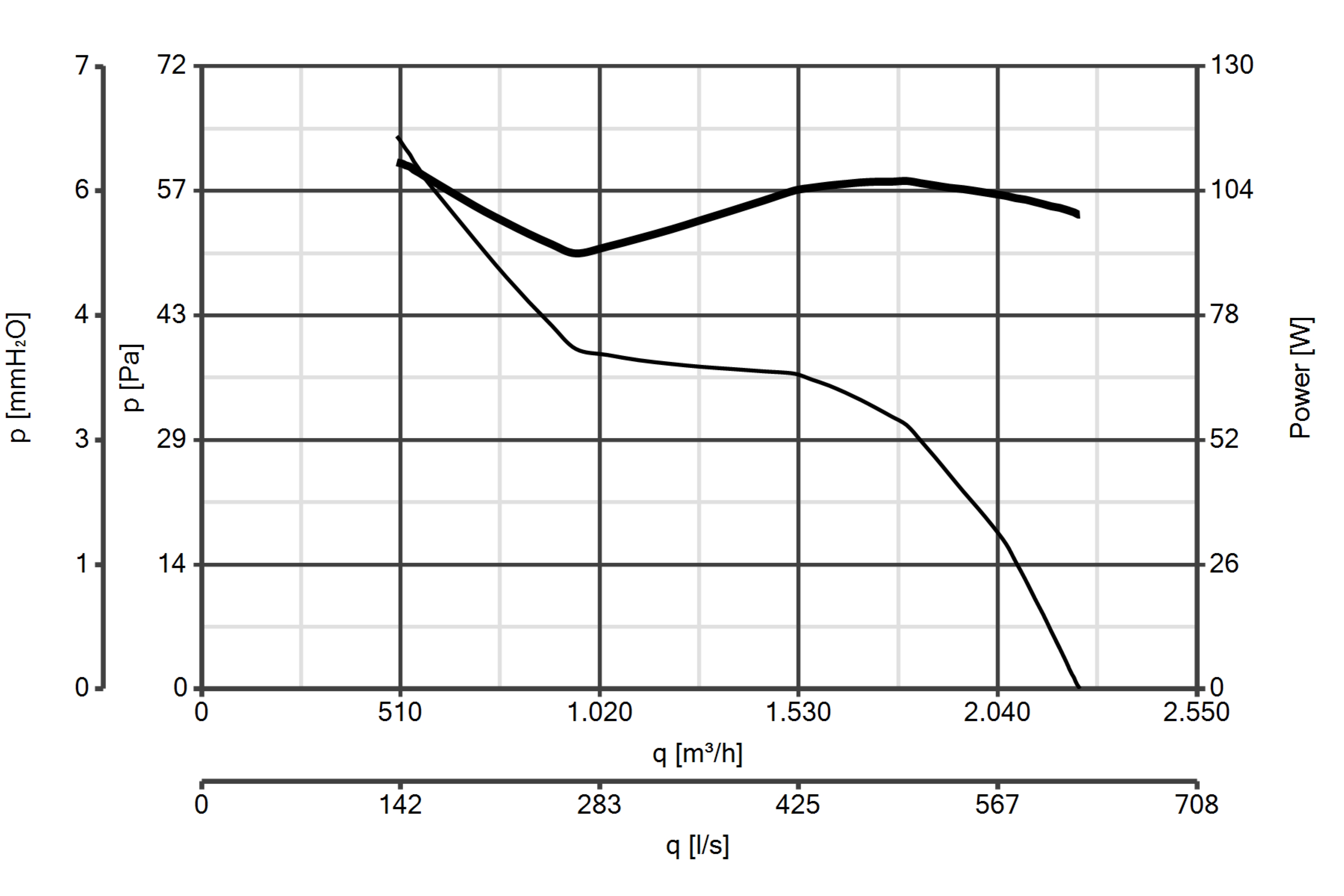

Max airflow (l/s)625
-
Max airflow (m³/h)2250
-
Max pressure (mmH2O)10,4
-
Max pressure (Pa)102
-
RPM1400
-
Sound power Lw [dB(A)]55,3
-
Sound pressure Lp [dB (A)] at 3 m34,8
-

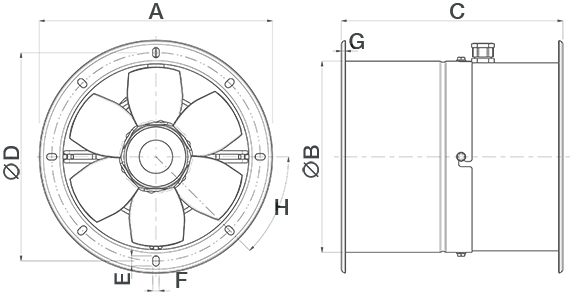

Size A (mm)ø 393
-
Size B (mm)ø 316
-
Size C (mm)330
-
Size D (mm)ø 366
-
Size E (mm)14
-
Size F (mm)9
-
Size G (mm)4
-
Size H (mm)45°
Interested?
If you are interested in this product, contact us or locate your nearest Vortice dealer.
Documentation
You can see all the documentation relating to this product: price list, information booklet and wiring diagram.
Accessories
Discover accessories related to the product
MPC RA 300 (RACCORDO FLESSIBILE)
• Flexible fitting for making a non-rigid connection to compensate for distance or for reducing vibration.
MPC FL 300 (FLANGIA)
• Flange fitting to replace the one supplied with the unit, for reducing the unit’s size and permitting normal anchoring to the duct.
MPC RP 300 (RETE DI PROTEZIONE)
• Protection grille for use when the unit is mounted within reach.
MPC BO 300 (BOCCAGLIO)
• Intake nozzle for fixing to the intake side to optimize intake and reduce noise level.
