Description

• Cabinet moulded in self-extinguishing ABS, colour silver.
• Steel wall-mounting flange.
• EC brushless motor with thermal overload protection and shaft turning in ball bearings.
• Heating element ON/OFF: when high ambient temperatures render the use of hot air unnecessary, a switch on the left hand side of the cabinet can be operated to deactivate the heating element and save energy.
• Germical capability thanks to UV lamp.
• Dryer stops immediately when hands are withdrawn.
• Protection against vandalism: the appliance shuts off automatically following 25 seconds of operation uninterrupted.
• Protection against overheating, overload and short-circuit.

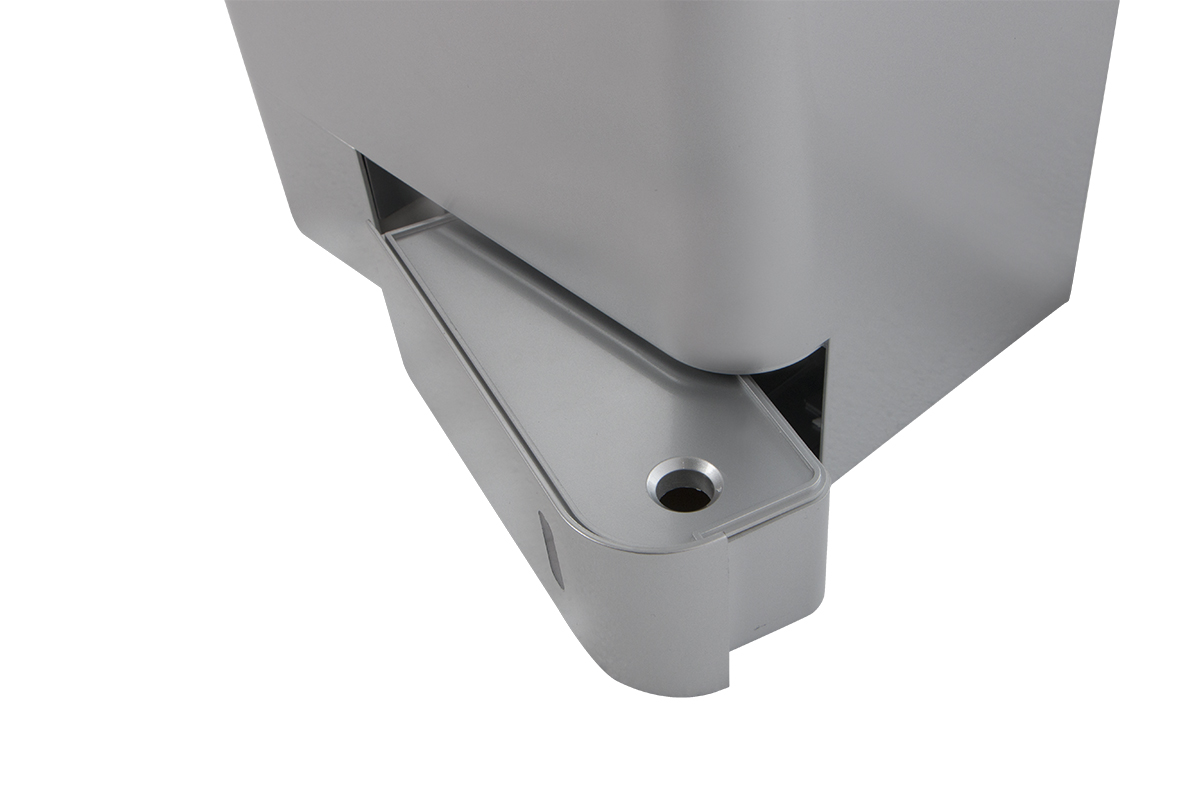

• Drip collection tank
• HEPA filter.
Read full descriptionClose description

Certifications

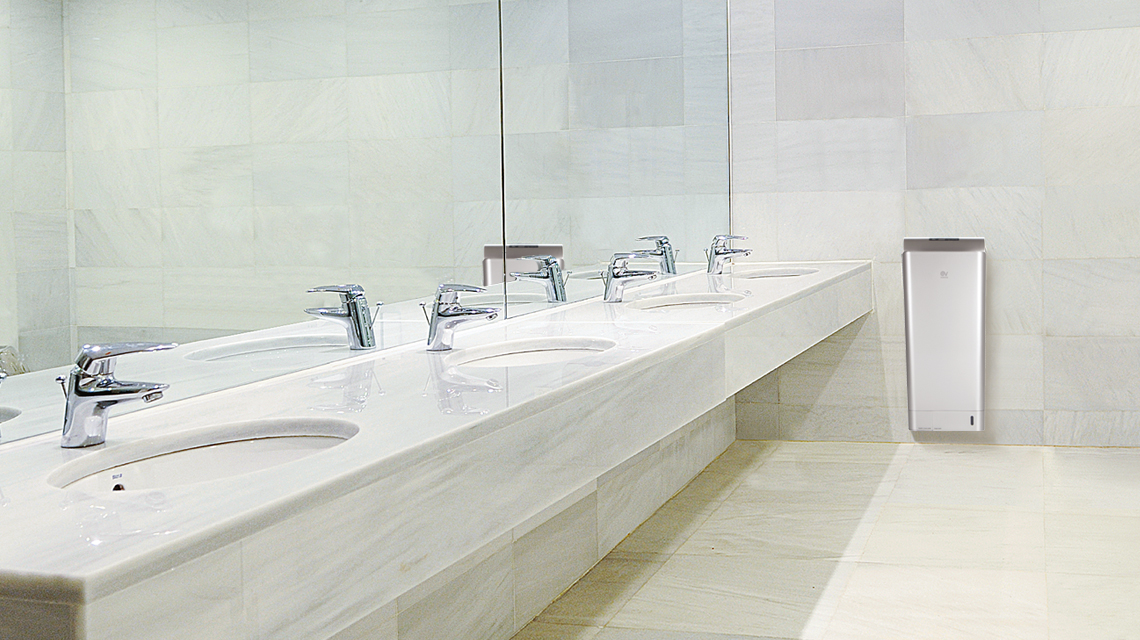

vort_super_dry_uv_g_ambiente01

Technical Data Sheet

  • Frequency (Hz)
    50-60
  • Insulation class
  • IP
    24
  • Motor power (W)
    700
  • Operating temperature (°C)
    40
  • Voltage (V)
    220-240
  • Weight (Kg)
    11
  • Air speed (km/h)
    342
  • Max flow speed (m/s)
    95
  • Power setting 1 (W)
    1650
  • Power setting 2 (W)
    2050
  • Sound pressure level at 1m Lp [dB (A)]
    76


* Technical datas above refer to the product powered at 50 Hz.
For values for 60 Hz power supply, please contact the VORTICE Presales Service at prevendita@vortice-italy.com.

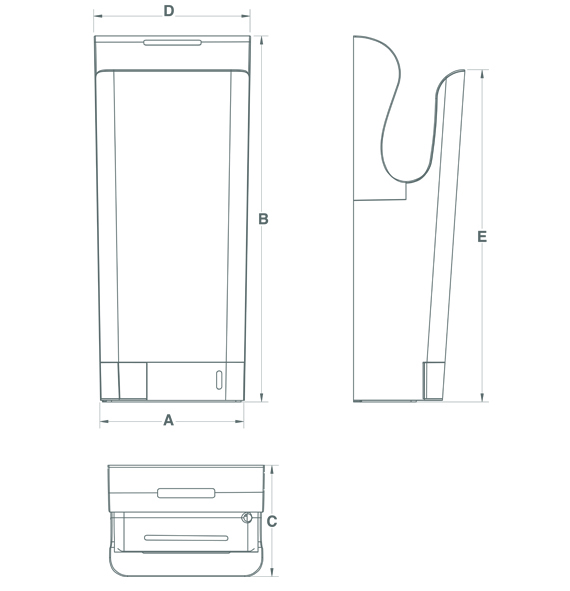

  • Size A (mm)
    278
  • Size B (mm)
    705
  • Size C (mm)
    215
  • Size D (mm)
    300
  • Size E (mm)
    638
quota
