Description

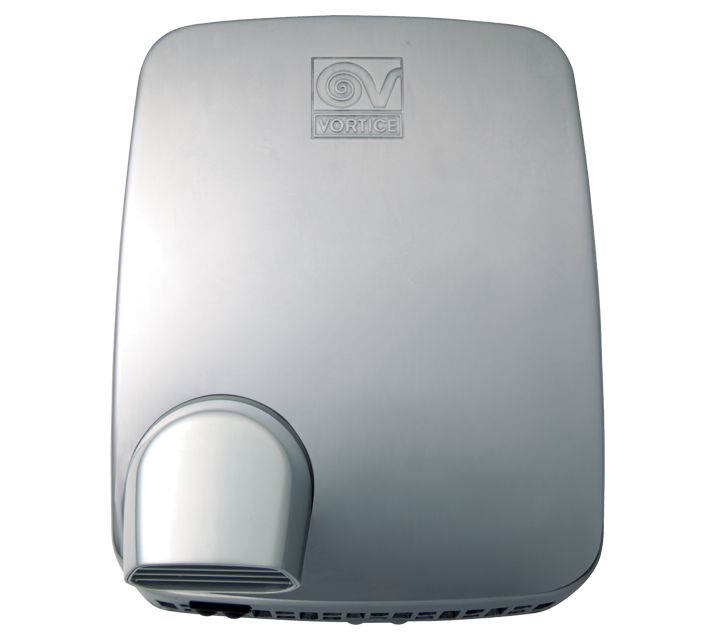

• Front cover made of pressure diecast aluminium with brushed finish, closure with vandal-proof screws.
• Plastic wall mounting flange (talc-filled PP).
• Nozzle rotatable through 360°, grille with scratch-resistant powder-coated finish, transparent protection.
• Scroll and motor mounting cowl moulded from ABS
• AC motor with thermal overload cutout and shaft turning in ball bearings, coupled to forward-bladed centrifugal impeller.
• Heating element protected by 2 devices: thermal fuse and resettable thermal overload limiter.
• Air flow 190 m3/h.
• Dryer operated automatically by an infrared device with activation distance of up to 35 cm, selected by means of an internal trimmer adjustable at the moment of installation. Appliance shuts down automatically in the event of the air inlet grille or the warm air outlet nozzle being obstructed intentionally or accidentally.
• IMQ safety certification.
• Plastic wall mounting flange (talc-filled PP).
• Nozzle rotatable through 360°, grille with scratch-resistant powder-coated finish, transparent protection.
• Scroll and motor mounting cowl moulded from ABS
• AC motor with thermal overload cutout and shaft turning in ball bearings, coupled to forward-bladed centrifugal impeller.
• Heating element protected by 2 devices: thermal fuse and resettable thermal overload limiter.
• Air flow 190 m3/h.
• Dryer operated automatically by an infrared device with activation distance of up to 35 cm, selected by means of an internal trimmer adjustable at the moment of installation. Appliance shuts down automatically in the event of the air inlet grille or the warm air outlet nozzle being obstructed intentionally or accidentally.
• IMQ safety certification.
Certifications
-
Download
CE
-
EAC
-
UKCA
-
CB TEST CERTIFICATE
Technical Data Sheet
-
Frequency (Hz)50-60
-
Insulation classII°
-
IPX4
-
Max absorbed power (W)1950
-
Motor power (W)140
-
Shock resistance (IK)10
-
Voltage (V)220-240
-
Weight (Kg)7
-
Max airflow (l/s)53
-
Max airflow (m³/h)190
-
Power in stand-by mode (W)0,2796
-
Sound pressure level at 1m Lp [dB (A)]69,8
* Technical datas above refer to the product powered at 50 Hz.
For values for 60 Hz power supply, please contact the VORTICE Presales Service at prevendita@vortice-italy.com.
-

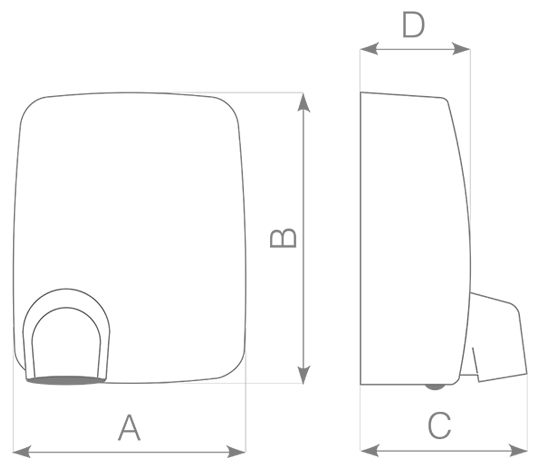

Size A (mm)280
-
Size B (mm)355
-
Size C (mm)202
-
Size D (mm)139
