Description

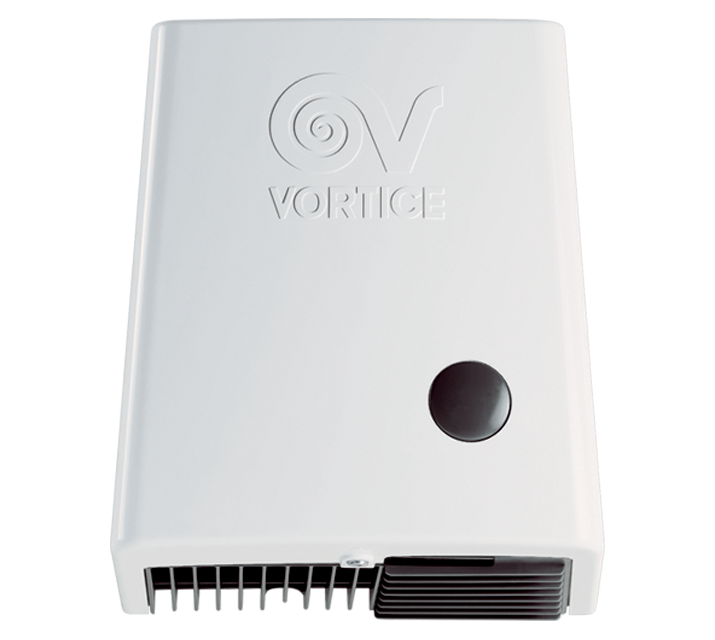

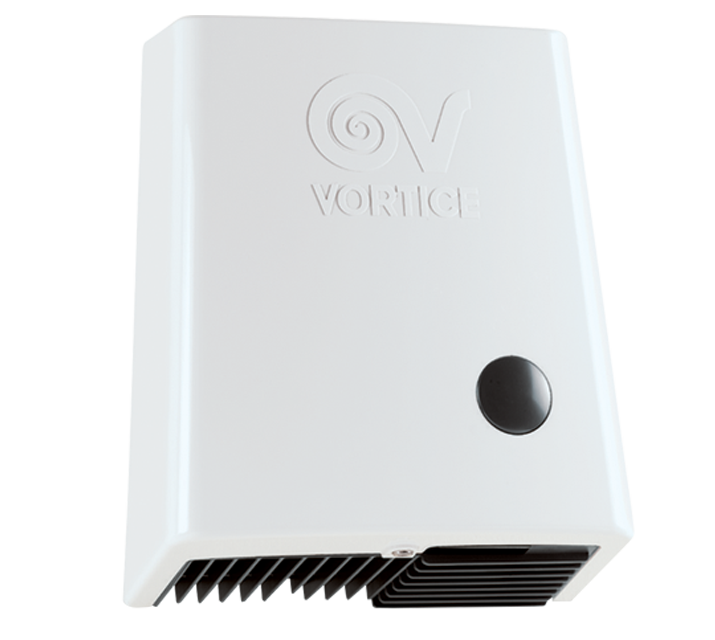

• Front cover made of UV-resistant plastic rated V0, colour white.
• Wall-mounting flange incorporating warm air outlet grille of moulded plastic (PP).
• EC motor with thermal overload cutout and shaft turning in ball bearings, coupled to forward-bladed centrifugal impeller.
• Heating element protected by 2 devices: thermal fuse and resettable thermal overload limiter.
• Air flow 120 m3/h.
• Dust filter.
• Dryer operated manually by push button. Equipped with electronic timer designed to shut off the fan motor automatically after a set interval, selectable during installation in the range 20"-60". Appliance shuts down automatically in the event of the air inlet grille or the warm air outlet nozzle being obstructed intentionally or accidentally.
• IMQ safety certification.
• Wall-mounting flange incorporating warm air outlet grille of moulded plastic (PP).
• EC motor with thermal overload cutout and shaft turning in ball bearings, coupled to forward-bladed centrifugal impeller.
• Heating element protected by 2 devices: thermal fuse and resettable thermal overload limiter.
• Air flow 120 m3/h.
• Dust filter.
• Dryer operated manually by push button. Equipped with electronic timer designed to shut off the fan motor automatically after a set interval, selectable during installation in the range 20"-60". Appliance shuts down automatically in the event of the air inlet grille or the warm air outlet nozzle being obstructed intentionally or accidentally.
• IMQ safety certification.
Certifications
-
Download
CE
-
EAC
-
UKCA
Technical Data Sheet
-
Frequency (Hz)50-60
-
Insulation classII°
-
IPX4
-
Max absorbed current (A)5,5
-
Max absorbed power (W)1350
-
Motor power (W)45
-
Shock resistance (IK)09
-
Voltage (V)220-240
-
Weight (Kg)2,3
-
Air speed (km/h)36
-
Drying time (s)30
-
Max airflow (l/s)35
-
Max airflow (m³/h)130
-
Max flow speed (m/s)10
-
Power in stand-by mode (W)0,4060
-
Sound pressure level at 1m Lp [dB (A)]55,2
* Technical datas above refer to the product powered at 50 Hz.
For values for 60 Hz power supply, please contact the VORTICE Presales Service at prevendita@vortice-italy.com.
-

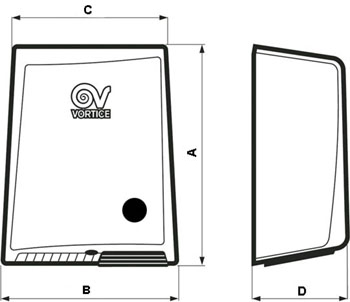

Size A (mm)253
-
Size B (mm)319
-
Size C (mm)137
-
Size D (mm)220
Interested?
If you are interested in this product, contact us or locate your nearest Vortice dealer.
Documentation
You can see all the documentation relating to this product: price list, information booklet and wiring diagram.
