Description

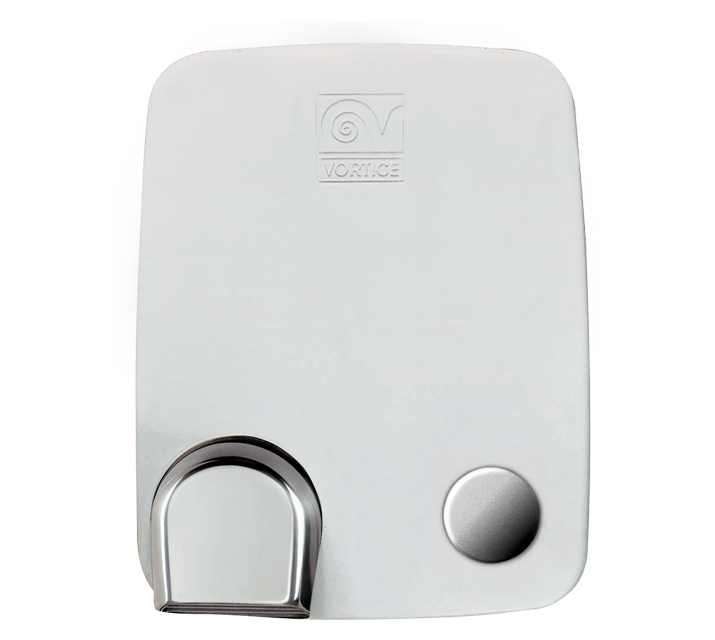

• Front cover made of pressure diecast aluminium with scratch-resistant white powder-coated finish, closure with vandal-proof screws.
• Plastic wall mounting flange (talc-filled PP).
• Nozzle rotatable through 360°, grille with scratch-resistant powder-coated finish, transparent protection.
• Scroll and motor mounting cowl moulded from ABS
• AC motor with thermal overload cutout and shaft turning in ball bearings, coupled to forward-bladed centrifugal impeller.
• Heating element protected by 2 devices: thermal fuse and resettable thermal overload limiter.
• Air flow 190 m3/h.
• Dryer operated manually by push button. Equipped with electronic timer designed to shut off the fan motor automatically after a set interval, selectable during installation in the range 20"-60". Appliance shuts down automatically in the event of the air inlet grille or the warm air outlet nozzle being obstructed intentionally or accidentally.
• IMQ safety certification.
• Plastic wall mounting flange (talc-filled PP).
• Nozzle rotatable through 360°, grille with scratch-resistant powder-coated finish, transparent protection.
• Scroll and motor mounting cowl moulded from ABS
• AC motor with thermal overload cutout and shaft turning in ball bearings, coupled to forward-bladed centrifugal impeller.
• Heating element protected by 2 devices: thermal fuse and resettable thermal overload limiter.
• Air flow 190 m3/h.
• Dryer operated manually by push button. Equipped with electronic timer designed to shut off the fan motor automatically after a set interval, selectable during installation in the range 20"-60". Appliance shuts down automatically in the event of the air inlet grille or the warm air outlet nozzle being obstructed intentionally or accidentally.
• IMQ safety certification.
Certifications
-
Download
CE
-
EAC
-
UKCA
-
CB TEST CERTIFICATE
Technical Data Sheet
-
Frequency (Hz)50-60
-
Insulation classII°
-
IPX4
-
Max absorbed current (A)8,5
-
Max absorbed power (W)1950
-
Motor power (W)140
-
Shock resistance (IK)10
-
Voltage (V)220-240
-
Weight (Kg)7,2
-
Max airflow (l/s)53
-
Max airflow (m³/h)190
-
Power in stand-by mode (W)0,4737
-
Sound pressure level at 1m Lp [dB (A)]69,8
* Technical datas above refer to the product powered at 50 Hz.
For values for 60 Hz power supply, please contact the VORTICE Presales Service at prevendita@vortice-italy.com.
-
Size A (mm)280
-
Size B (mm)355
-
Size C (mm)202
-
Size D (mm)139
