Description

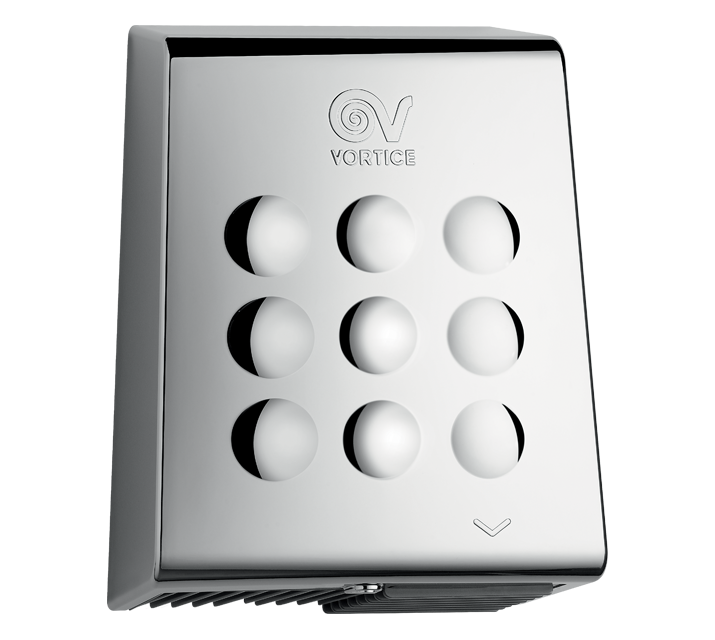

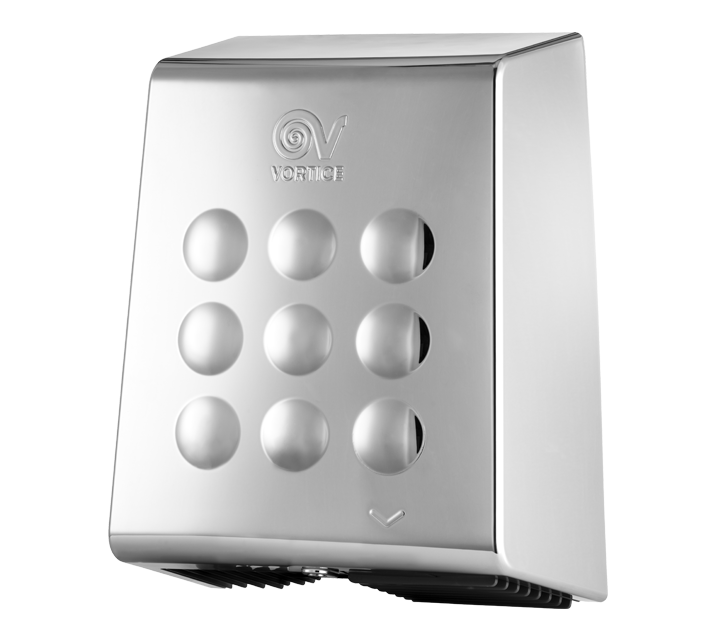

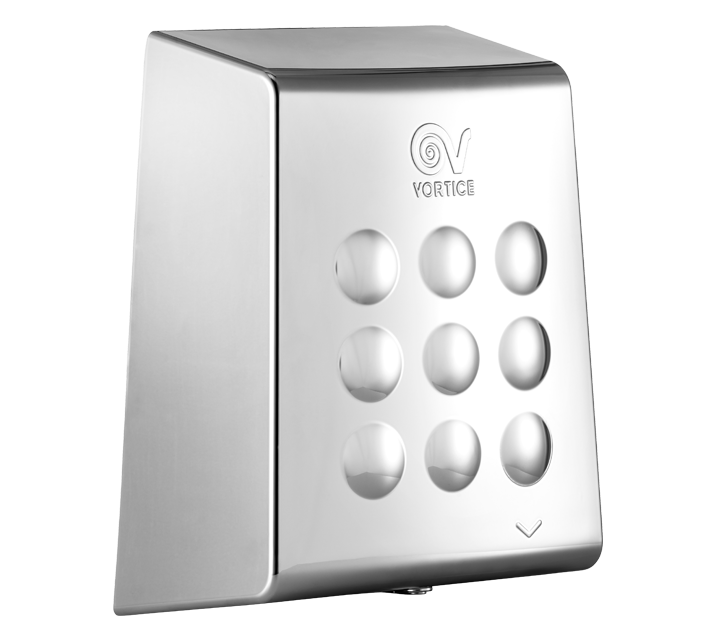

• Front cover made of UV-resistant plastic rated V0, colour white gold.

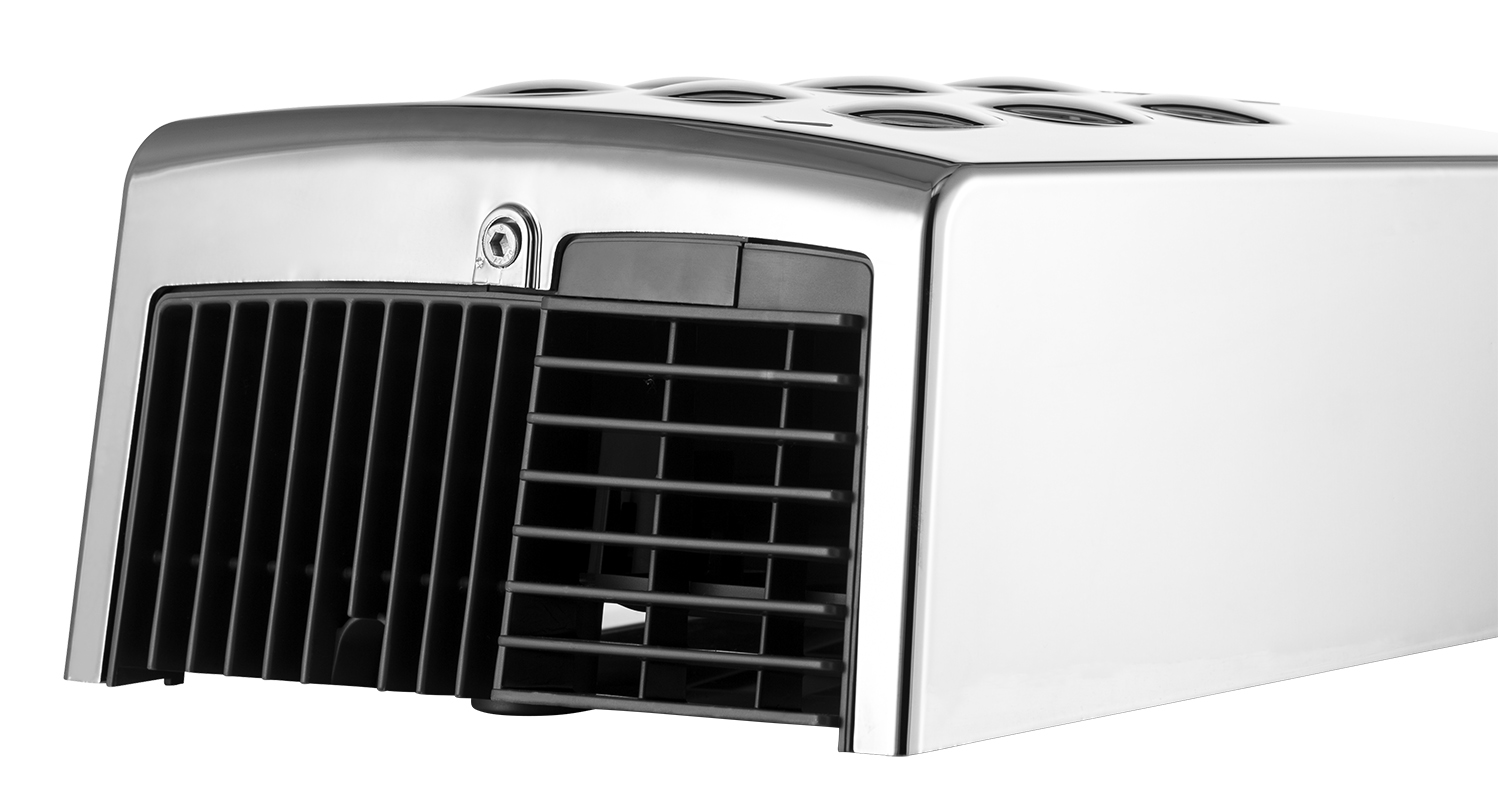

• Wall-mounting flange incorporating warm air outlet grille of moulded plastic (PP).
• EC motor with thermal overload cutout and shaft turning in ball bearings, coupled to forward-bladed centrifugal impeller.
• Heating element protected by 2 devices: thermal fuse and resettable thermal overload limiter.
• Air flow 170 m3/h.
• Dryer operated automatically by an infrared device with activation distance of up to 35 cm, selected by means of an internal trimmer adjustable at the moment of installation. Appliance shuts down automatically in the event of the air inlet grille or the warm air outlet nozzle being obstructed intentionally or accidentally.
• Dust filter.
• IMQ safety certification.
• Wall-mounting flange incorporating warm air outlet grille of moulded plastic (PP).
• EC motor with thermal overload cutout and shaft turning in ball bearings, coupled to forward-bladed centrifugal impeller.
• Heating element protected by 2 devices: thermal fuse and resettable thermal overload limiter.
• Air flow 170 m3/h.
• Dryer operated automatically by an infrared device with activation distance of up to 35 cm, selected by means of an internal trimmer adjustable at the moment of installation. Appliance shuts down automatically in the event of the air inlet grille or the warm air outlet nozzle being obstructed intentionally or accidentally.
• Dust filter.
• IMQ safety certification.
Certifications
-
IMQ
-
Download
CE
-
EAC
Technical Data Sheet
-
Frequency (Hz)50-60
-
Insulation classII°
-
IPX4
-
Max absorbed current (A)9
-
Max absorbed power (W)2000
-
Motor power (W)65
-
Shock resistance (IK)9
-
Voltage (V)220-240
-
Weight (Kg)2,6
-
Max airflow (l/s)47
-
Max airflow (m³/h)170
-
Power in stand-by mode (W)0,4550
-
Sound pressure level at 1m Lp [dB (A)]61,4
* Technical datas above refer to the product powered at 50 Hz.
For values for 60 Hz power supply, please contact the VORTICE Presales Service at prevendita@vortice-italy.com.
-

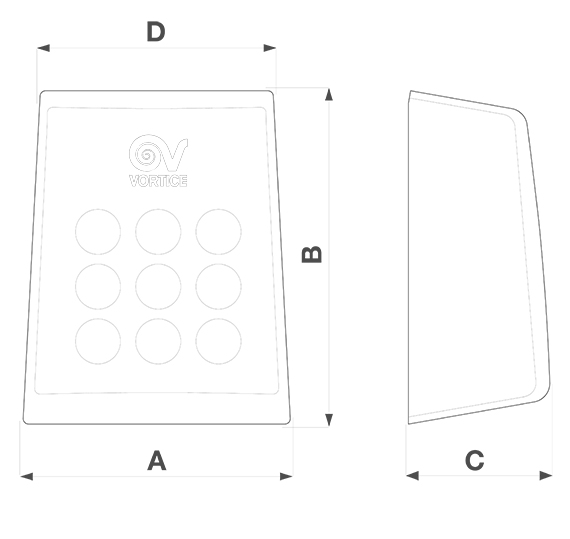

Size A (mm)253
-
Size B (mm)319
-
Size C (mm)137
-
Size D (mm)220
