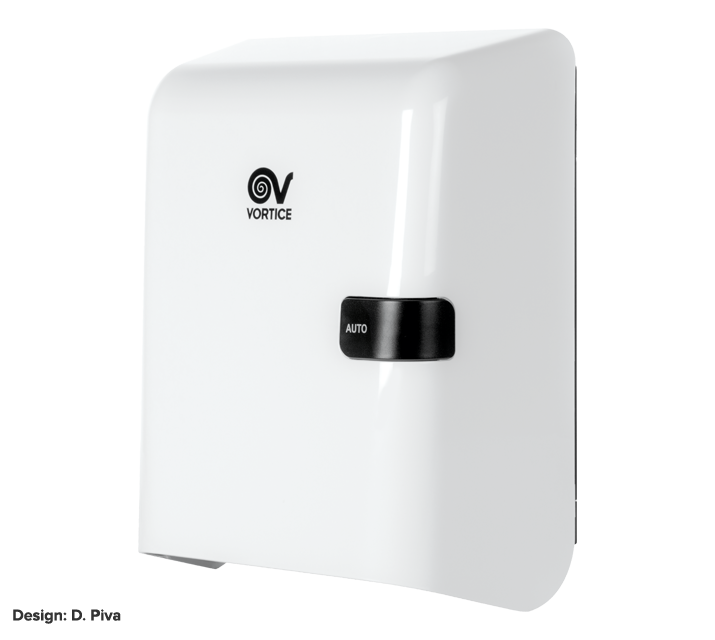

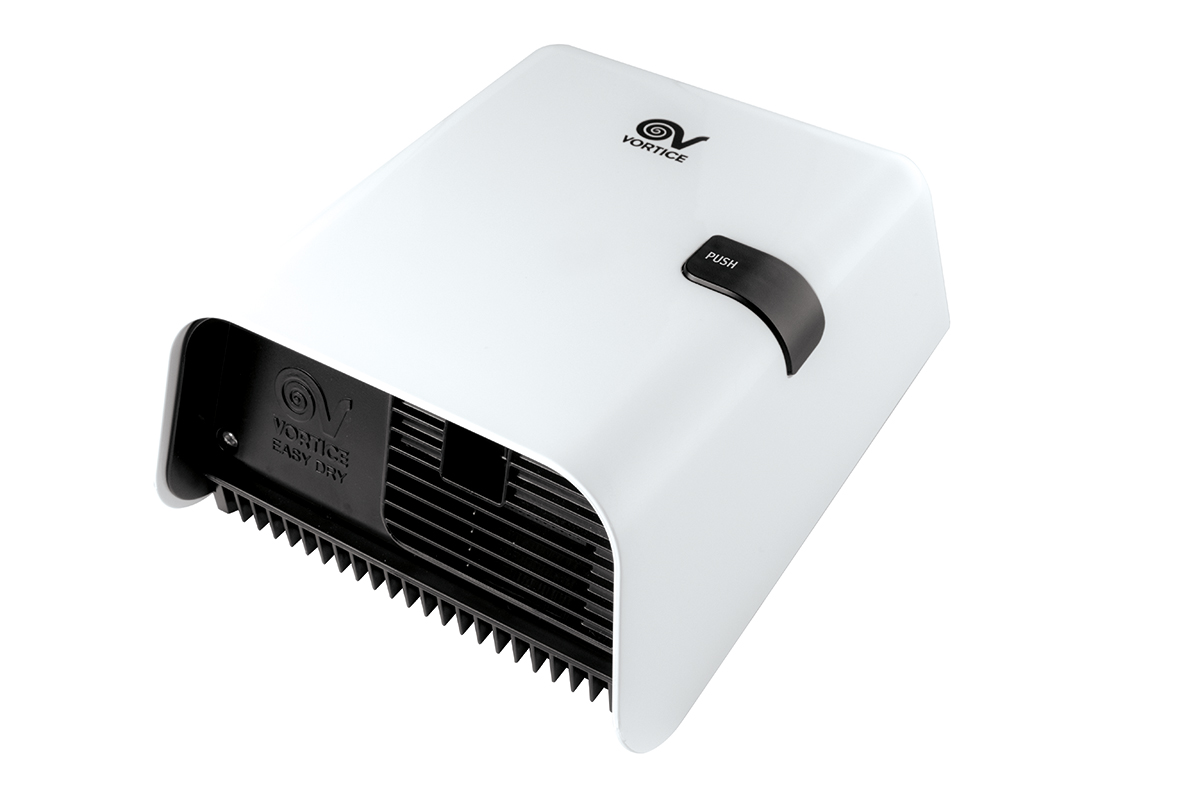

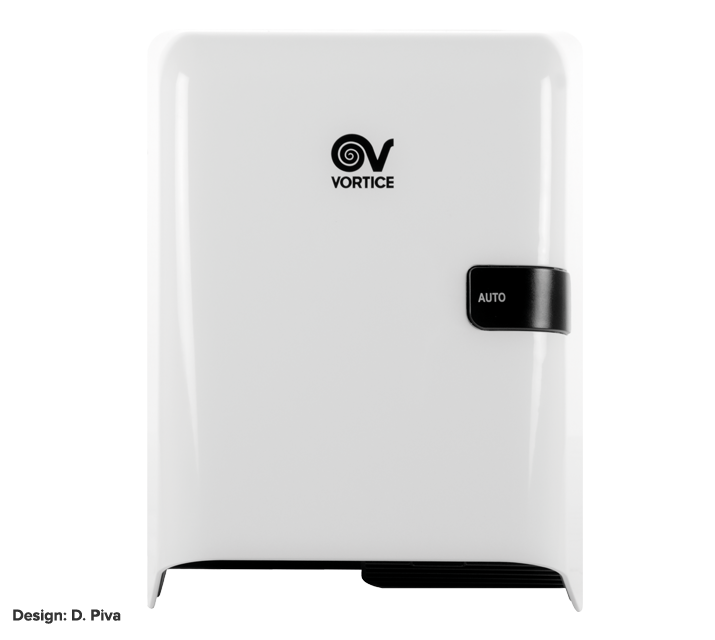

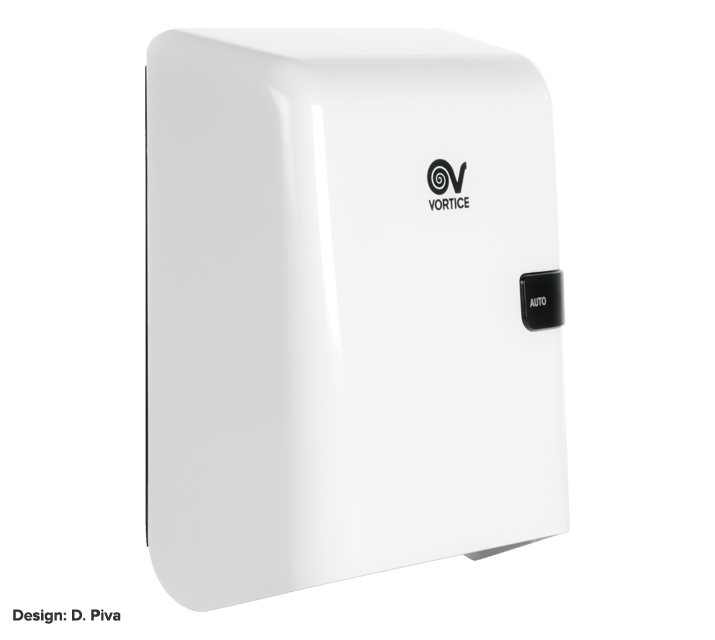

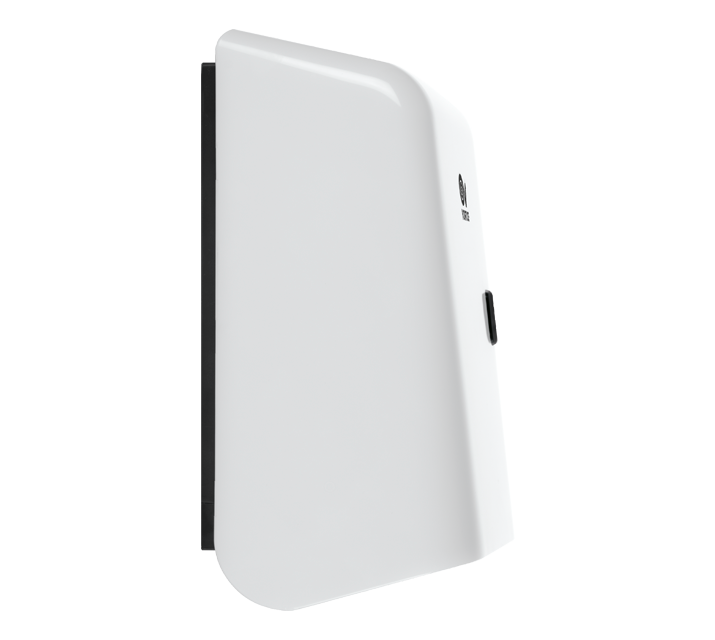

Description
• Front cover made of shockproof, UV-resistant plastic (ABS); closure system with allen screw.
• Rear flange moulded in self-extinguishing polypropylene (PP).

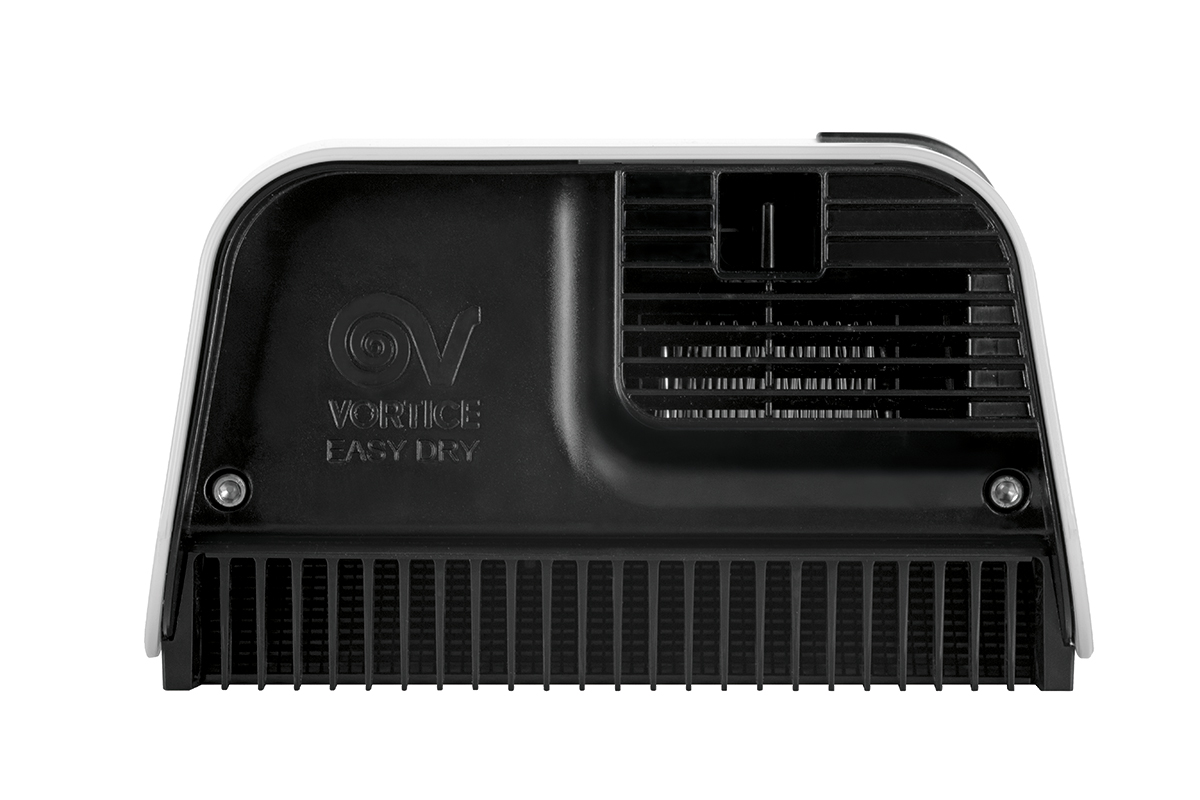

• Lower grille and mesh filter moulded in plastic resin (PC).
• Induction motor with thermal overload cutout, coupled to centrifugal impeller.
• Heating element protected by 2 devices: thermal fuse and resettable thermal overload limiter.

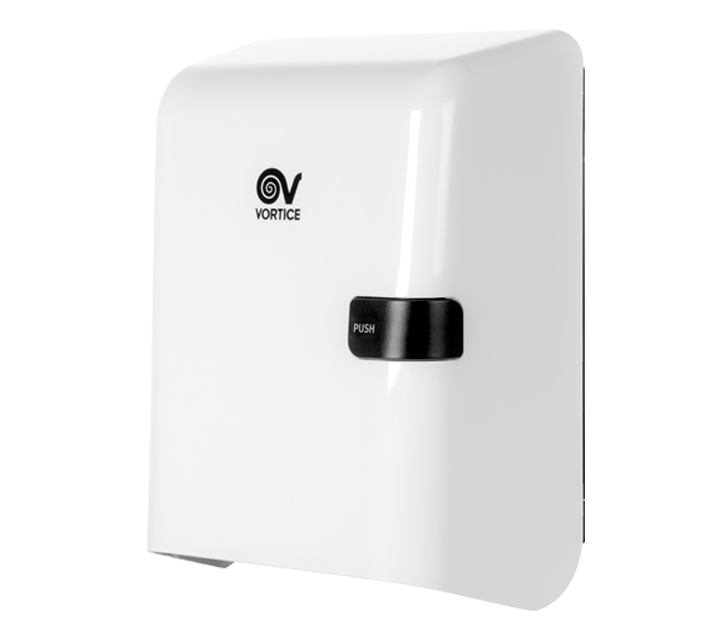

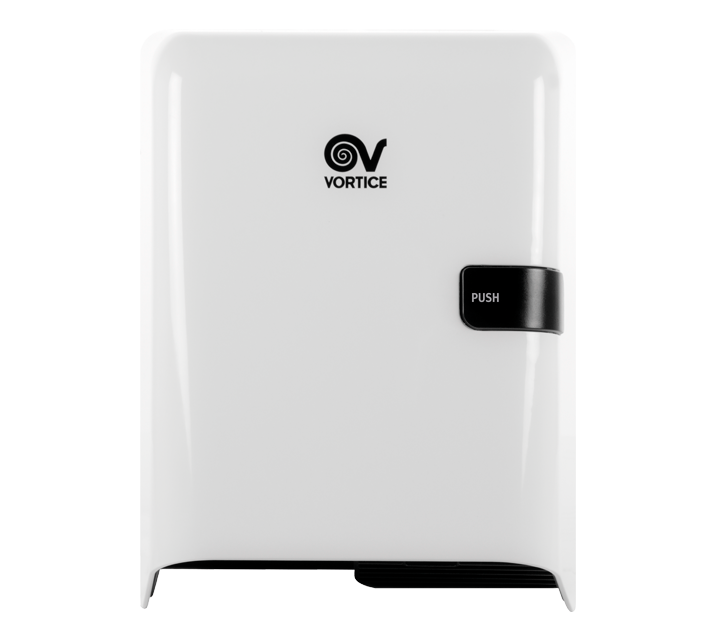

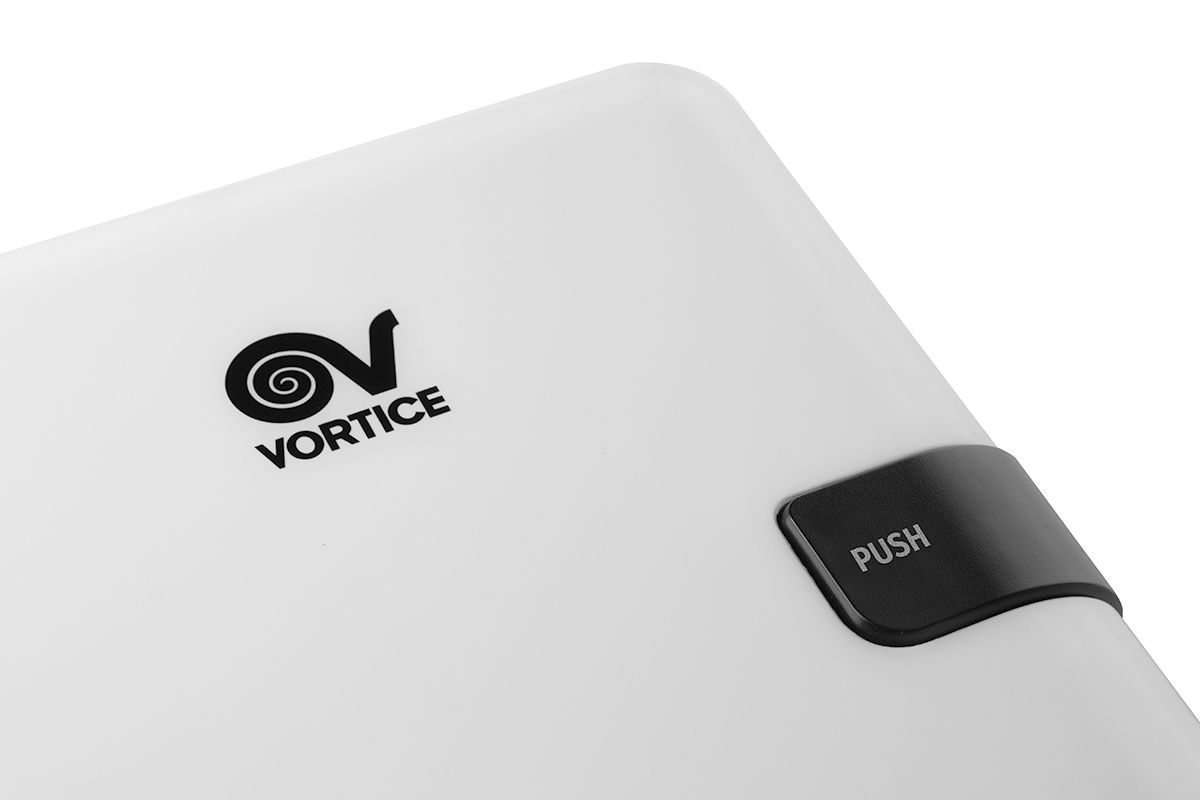

• Dryer operated manually by push button. Equipped with electronic timer designed to shut off the fan motor automatically after a set interval, selectable during installation in the range 1’-8’.
• Possibility of connection to an external coin box equipped or not with timer.
• IMQ safety certification.
• Rear flange moulded in self-extinguishing polypropylene (PP).
• Lower grille and mesh filter moulded in plastic resin (PC).
• Induction motor with thermal overload cutout, coupled to centrifugal impeller.
• Heating element protected by 2 devices: thermal fuse and resettable thermal overload limiter.
• Dryer operated manually by push button. Equipped with electronic timer designed to shut off the fan motor automatically after a set interval, selectable during installation in the range 1’-8’.
• Possibility of connection to an external coin box equipped or not with timer.
• IMQ safety certification.
Certifications
-
Download
CE
-
CB TEST CERTIFICATE
Technical Data Sheet
-
Frequency (Hz)50-60
-
Insulation classII°
-
IPX4
-
Max absorbed current (A)8
-
Max absorbed power (W)1800
-
Motor power (W)70/85
-
Shock resistance (IK)09
-
Voltage (V)220-240
-
Weight (Kg)3,1
-
Air speed (km/h)58
-
Drying time (s)22
-
Max airflow (l/s)52
-
Max airflow (m³/h)190
-
Max flow speed (m/s)16
-
Power in stand-by mode (W)0,501
-
Sound pressure level at 1m Lp [dB (A)]61
* Technical datas above refer to the product powered at 50 Hz.
For values for 60 Hz power supply, please contact the VORTICE Presales Service at prevendita@vortice-italy.com.
-

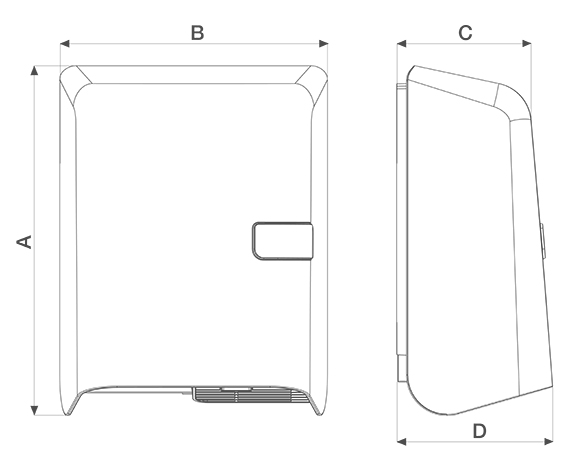

Size A (mm)346
-
Size B (mm)265
-
Size C (mm)133
-
Size D (mm)155
