Description

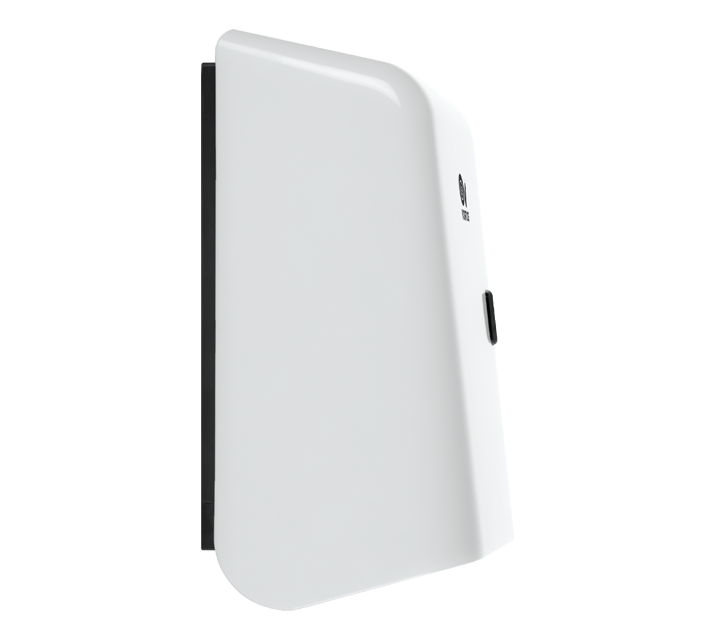

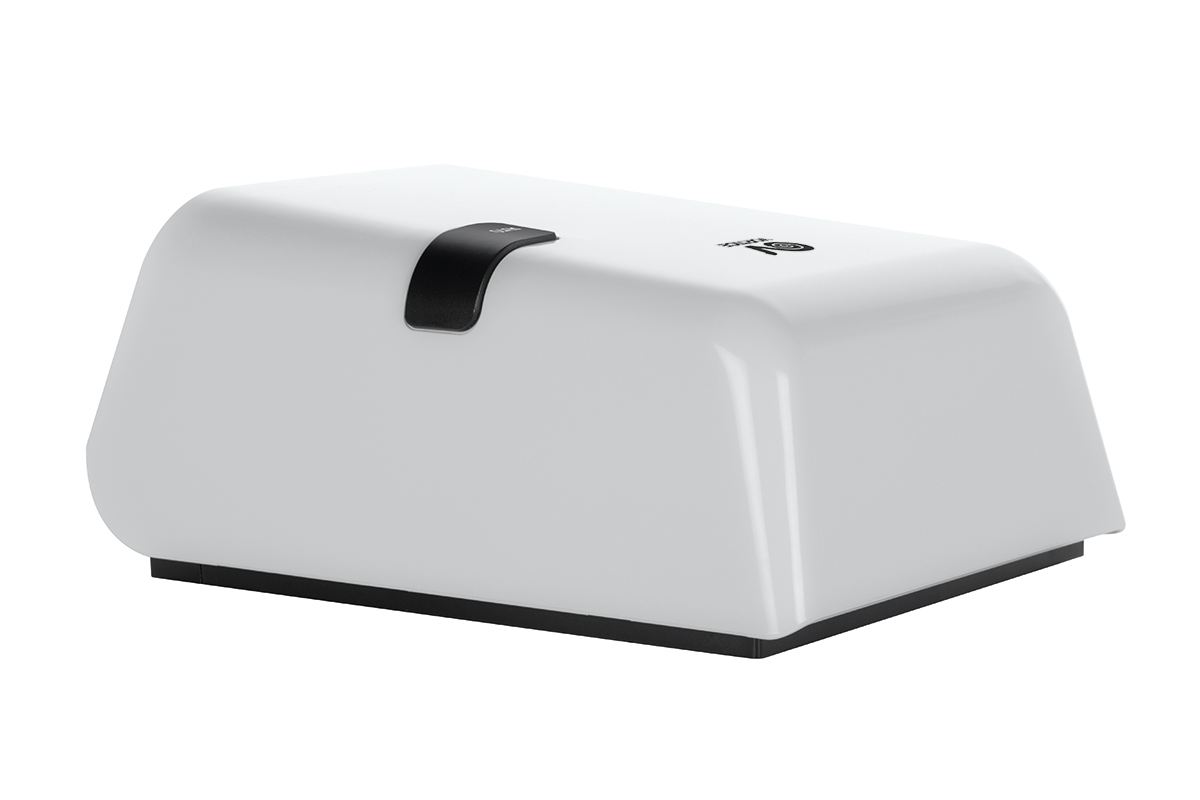

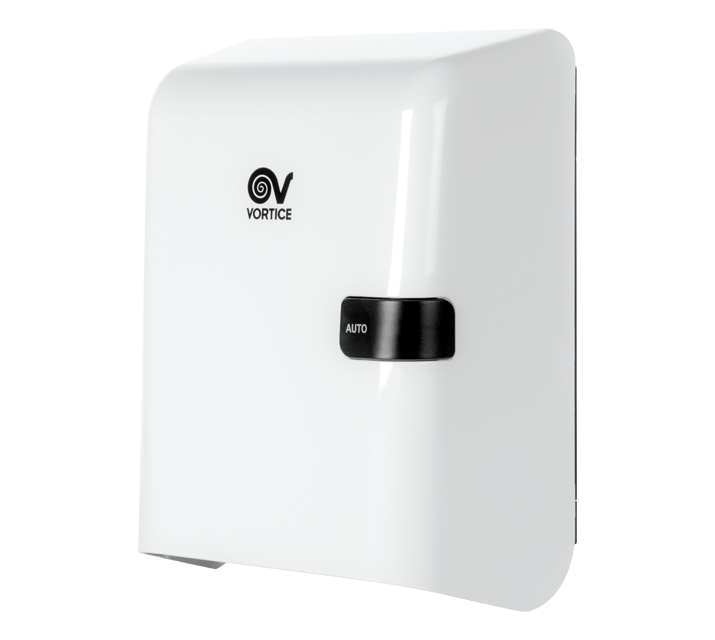

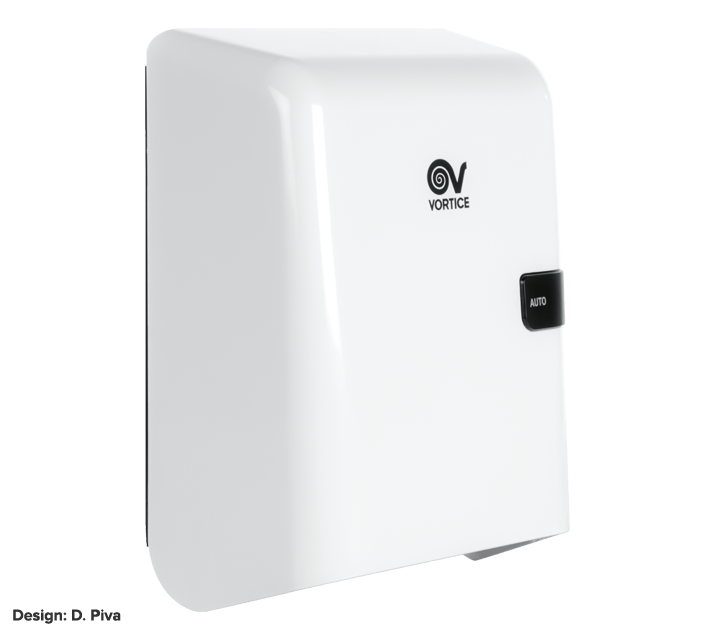

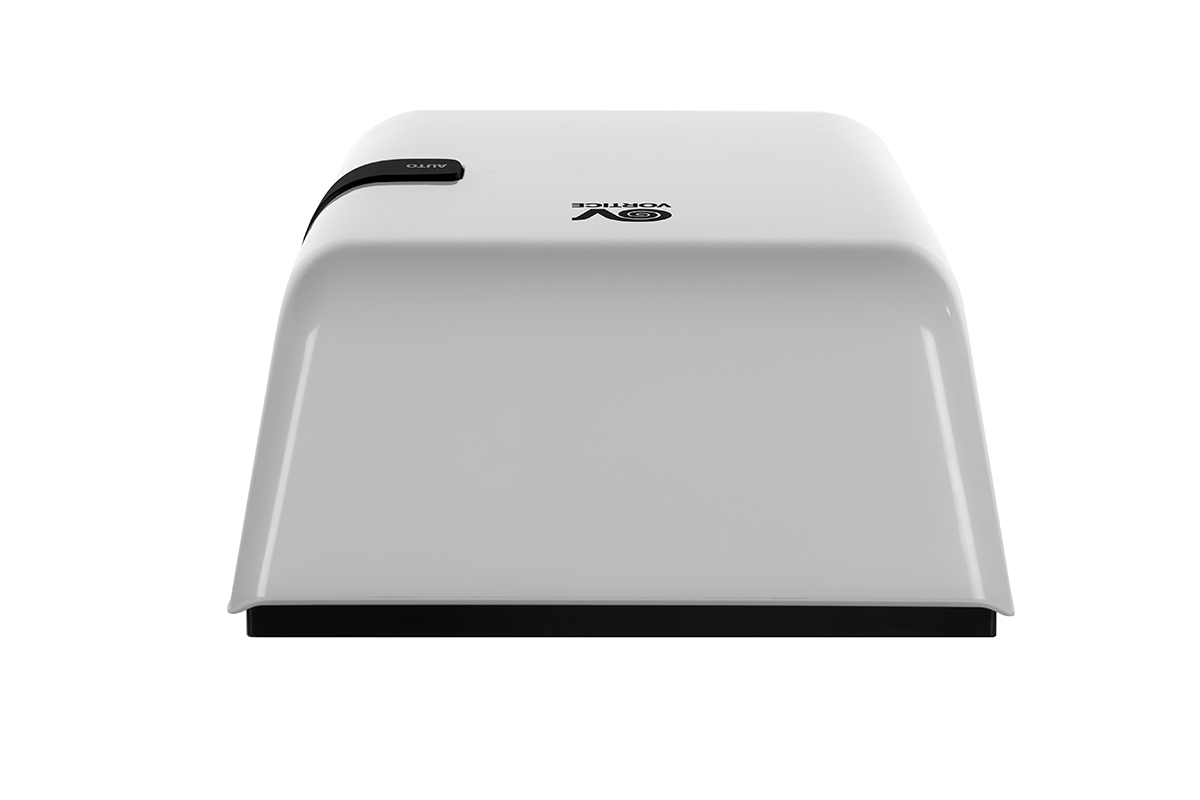

• Front cover made of shockproof, UV-resistant plastic (ABS); closure system with allen screw.
• Rear flange moulded in self-extinguishing polypropylene (PP).

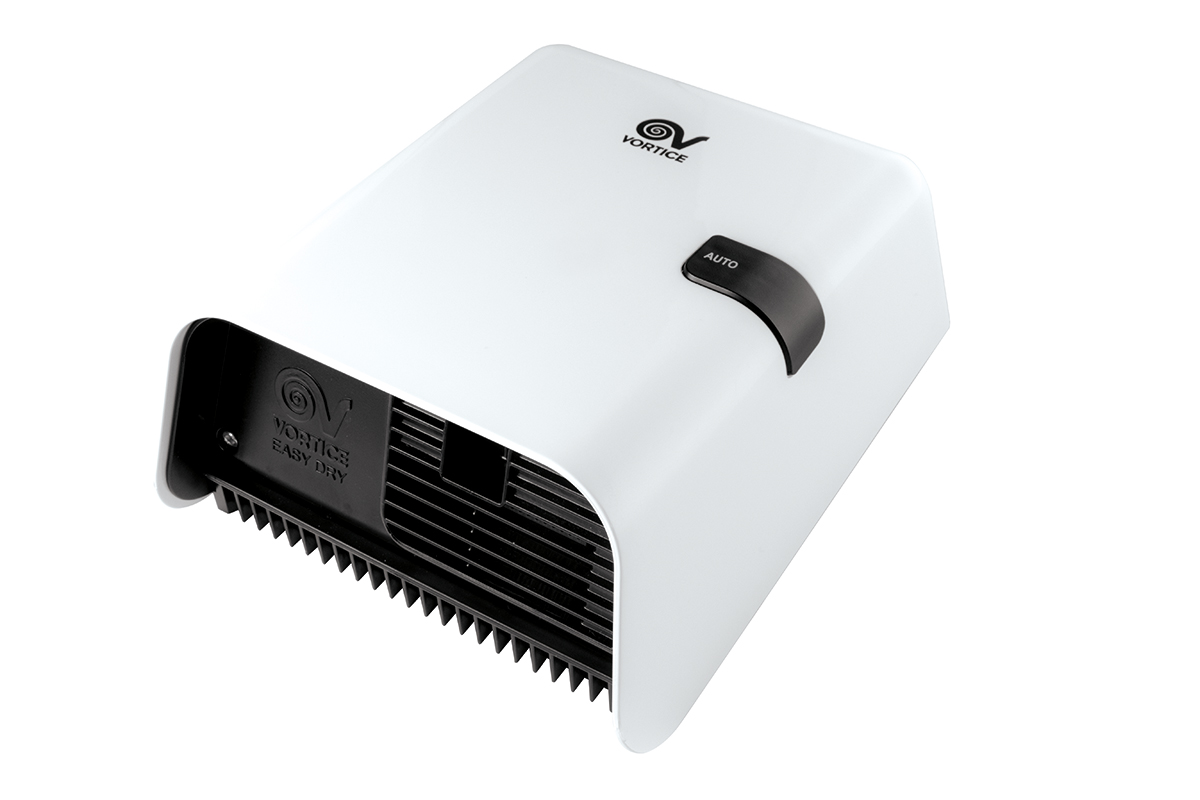

• Lower grille and mesh filter moulded in plastic resin (PC).
• Induction motor with thermal overload cutout, coupled to centrifugal impeller.
• Heating element protected by 2 devices: thermal fuse and resettable thermal overload limiter.

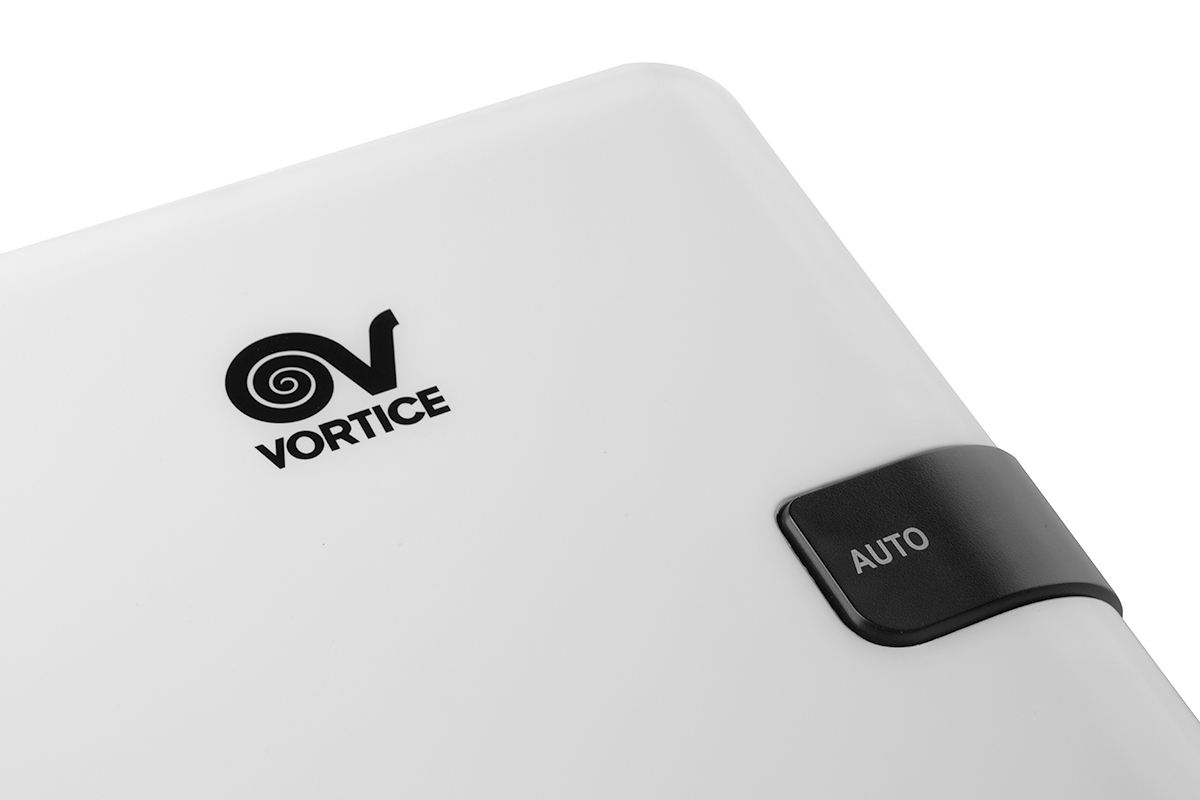

• Dryer operated automatically by an infrared device with activation distance of up to 35 cm, selected by means of an internal trimmer adjustable at the moment of installation. Appliance shuts down automatically in the event of the sensor being obstructed intentionally or accidentally, after 10’ continuous operation.
• IMQ safety certification.
• Rear flange moulded in self-extinguishing polypropylene (PP).
• Lower grille and mesh filter moulded in plastic resin (PC).
• Induction motor with thermal overload cutout, coupled to centrifugal impeller.
• Heating element protected by 2 devices: thermal fuse and resettable thermal overload limiter.
• Dryer operated automatically by an infrared device with activation distance of up to 35 cm, selected by means of an internal trimmer adjustable at the moment of installation. Appliance shuts down automatically in the event of the sensor being obstructed intentionally or accidentally, after 10’ continuous operation.
• IMQ safety certification.
Certifications
-
CE
-
CB TEST CERTIFICATE
Technical Data Sheet
-
Frequency (Hz)50-60
-
Insulation classII°
-
IPX4
-
Max absorbed current (A)8
-
Max absorbed power (W)1800
-
Motor power (W)70/85
-
Shock resistance (IK)09
-
Voltage (V)220-240
-
Weight (Kg)3,1
-
Air speed (km/h)58
-
Drying time (s)22
-
Max airflow (l/s)52
-
Max airflow (m³/h)190
-
Max flow speed (m/s)16
-
Power in stand-by mode (W)0.49
-
Sound pressure level at 1m Lp [dB (A)]61
* Technical datas above refer to the product powered at 50 Hz.
For values for 60 Hz power supply, please contact the VORTICE Presales Service at prevendita@vortice-italy.com.
-

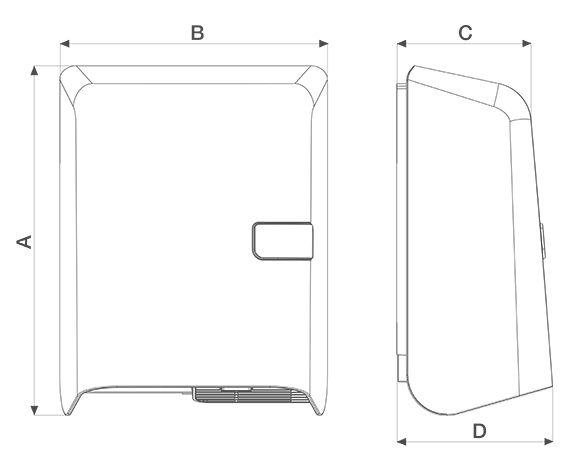

Size A (mm)346
-
Size B (mm)265
-
Size C (mm)133
-
Size D (mm)155
