Description

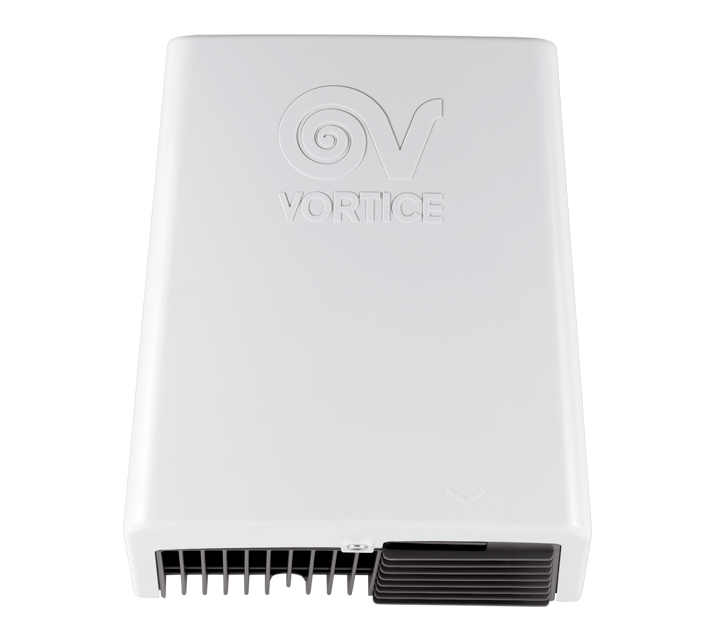

• Front cover made of UV-resistant plastic rated V0, colour white.
• Wall-mounting flange incorporating warm air outlet grille of moulded plastic (PP).
• EC motor with thermal overload cutout and shaft turning in ball bearings, coupled to forward-bladed centrifugal impeller.
• Heating element protected by 2 devices: thermal fuse and resettable thermal overload limiter.
• Air flow 120 m3/h.
• Dust filter.
• Dryer operated automatically by an infrared device with activation distance of up to 35 cm, selected by means of an internal trimmer adjustable at the moment of installation. Appliance shuts down automatically in the event of the air inlet grille or the warm air outlet nozzle being obstructed intentionally or accidentally.
• IMQ safety certification.

Read full descriptionClose description

Frequency (Hz)

50-60
Insulation class

II°
IP

X4
Max absorbed current (A)

5,5
Max absorbed power (W)

1350
Motor power (W)

45
Shock resistance (IK)

09
Voltage (V)

220-240

Weight (Kg)

2,3
Air speed (km/h)

36
Drying time (s)

30
Max airflow (l/s)

35
Max airflow (m³/h)

130
Max flow speed (m/s)

10
Power in stand-by mode (W)

0,4550
Sound pressure level at 1m Lp [dB (A)]

55,2

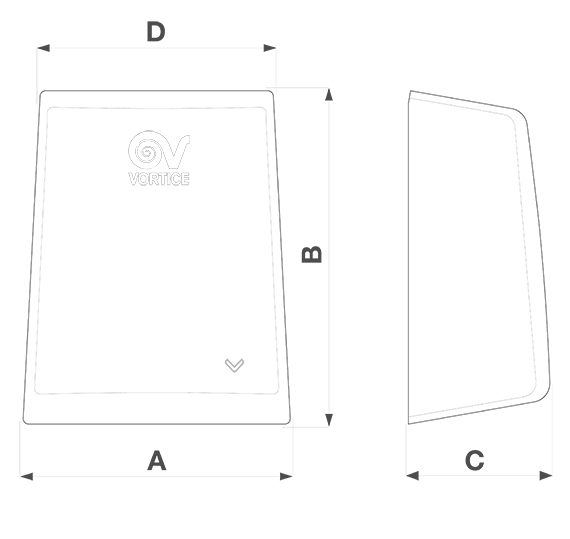

Size A (mm)

253
Size B (mm)

319
Size C (mm)

137
Size D (mm)

220
