Description
• Dryer casing moulded in self-extinguishing ABS plastic (rated V0).
• ABS wall mounting bracket.

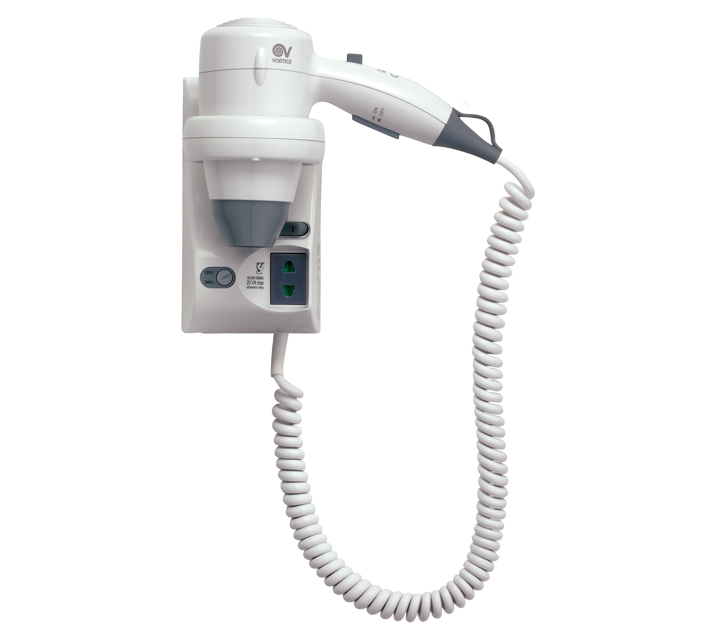

• VORT FOHN 1200 with outlet moulded in thermoplastic polypropylene (PP).
• Commutator motor with thermal overload protection.
• Heating element protected by thermal overload limiter with automatic reset.
• Automatic shutoff on releasing button.
• 2 power settings for the one speed available.
• Selectable power levels from 600 to 1200 W.
• Equipped with razor sockets wired for 230 V / 50 Hz and 120 V / 60 Hz power supply. Main on/off switch incorporated into wall mounting bracket.
• Air flow 90 m3/h.
• Dust filter.
• TUV safety certification
• ABS wall mounting bracket.
• VORT FOHN 1200 with outlet moulded in thermoplastic polypropylene (PP).
• Commutator motor with thermal overload protection.
• Heating element protected by thermal overload limiter with automatic reset.
• Automatic shutoff on releasing button.
• 2 power settings for the one speed available.
• Selectable power levels from 600 to 1200 W.
• Equipped with razor sockets wired for 230 V / 50 Hz and 120 V / 60 Hz power supply. Main on/off switch incorporated into wall mounting bracket.
• Air flow 90 m3/h.
• Dust filter.
• TUV safety certification
Technical Data Sheet
-
Frequency (Hz)50
-
Insulation classII°
-
IPX0
-
Max absorbed current (A)5,22
-
Max absorbed power (W)1200
-
Motor power (W)20
-
Voltage (V)230
-
Max airflow (l/s)26
-
Max airflow (m³/h)94
-
Sound pressure level at 1m Lp [dB (A)]71
-

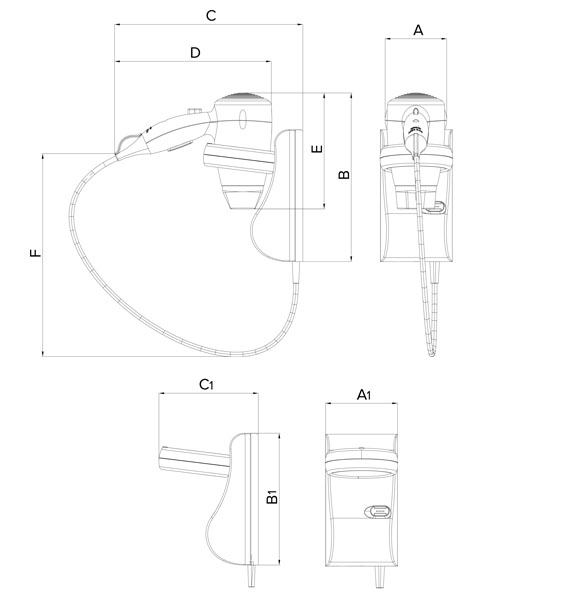

Dimension A1 (mm)100
-
Dimension C1 (mm)140
-
Size A (mm)95
-
Size B (mm)230
-
Size B1 (mm)180
-
Size C (mm)250
-
Size D (mm)230
-
Size E (mm)165
-
Size F (mm)500
Interested?
If you are interested in this product, contact us or locate your nearest Vortice dealer.
Documentation
You can see all the documentation relating to this product: price list, information booklet and wiring diagram.
