Description
• Die-casted, black painted aluminium sides.
• Casing made of grey painted stamped steel.
• Front rods made of AISI 304 stainless steel.
• Grey painted mounting bracket made of stamped steel, adjustable through 20° to conveniently direct infra-red rays.
• Ultra-low glare halogen lamp; max power consumption 1500 W.
• Pull-cord on/off switch; remote control through a wired switch allowed.
• Wired dimmer (optional) to tune radiation power according to current needs.
• Dedicated kit (optional code 22496) comprehensive of bracket and connection box, to install 2 units side by side or one above the others (only one connection to the mains needed).
• Casing made of grey painted stamped steel.
• Front rods made of AISI 304 stainless steel.
• Grey painted mounting bracket made of stamped steel, adjustable through 20° to conveniently direct infra-red rays.
• Ultra-low glare halogen lamp; max power consumption 1500 W.
• Pull-cord on/off switch; remote control through a wired switch allowed.
• Wired dimmer (optional) to tune radiation power according to current needs.
• Dedicated kit (optional code 22496) comprehensive of bracket and connection box, to install 2 units side by side or one above the others (only one connection to the mains needed).
Technical Data Sheet
-
Frequency (Hz)50-60
-
Insulation classI°
-
IPX4
-
Max absorbed current (A)6,5
-
Max absorbed power (W)1500
-
Voltage (V)230
-
Weight (Kg)2,2
-
Adaptive starting controlNO
-
Appliances with stand-by modeno
-
Auxiliary electricity consumption at Min heating output - elmin (kW)0
-
Auxiliary electricity consumption at nominal heating output - elmax (kW)0
-
Auxiliary electricity consumption in stand-by - elSB (kW)0
-
Continuous thermal power - Pmax, C (kW)1,8
-
Control with black globe thermometerNO
-
Control with operating time limitationNO
-
Control with remote optionSI
-
Min thermal power - PMin (kW)0,6
-
Nominal thermal power - Pnom (kW)1,8
-
Pilot flame storage appliancesno
-
Room temperature control with open window detectionNO
-
Room temperature control with presence detectionSI
-
Seasonal energy efficiency (%)35
-
Single phase heating output without room temperature controlNO
-
Thermal power with electronic control of the room temperatureSI
-
Thermal power with electronic control of the room temperature and daily timerNO
-
Thermal power with electronic control of the room temperature and weekly timerNO
-
Thermal power with room temperature control by mechanical thermostatNO
-
Thermal power with two or more manual phases without room temperature controlNO
-

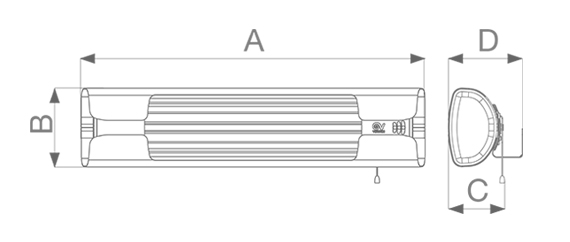

Size A (mm)570
-
Size B (mm)133
-
Size C (mm)91
-
Size D (mm)123
Interested?
If you are interested in this product, contact us or locate your nearest Vortice dealer.
Documentation
You can see all the documentation relating to this product: price list, information booklet and wiring diagram.
