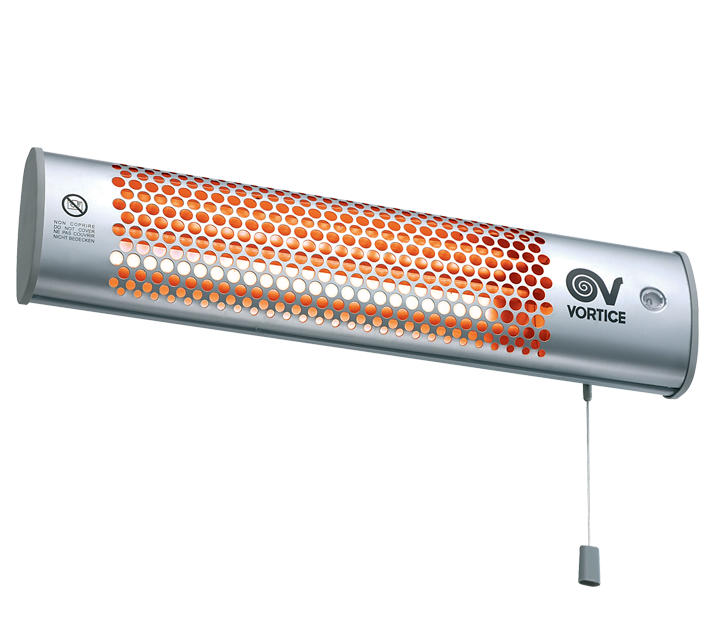

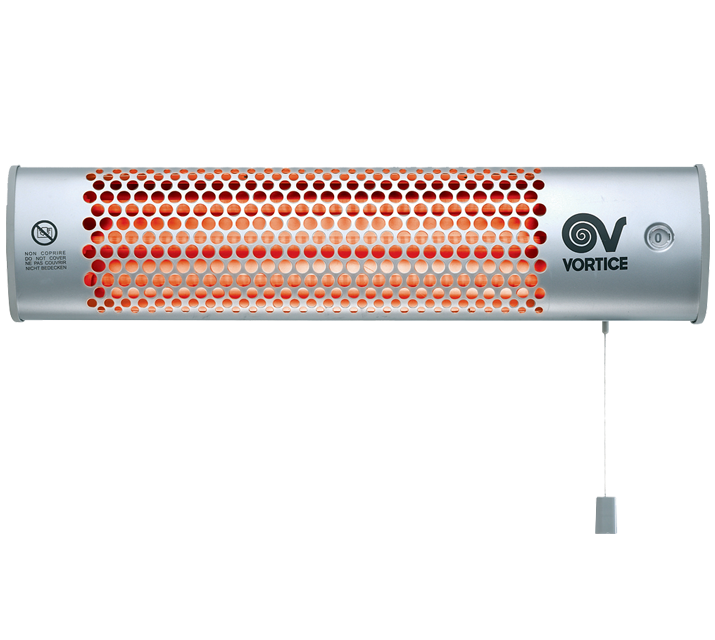

Description
• End sections made of thermoplastic nylon, colour grey
• Front casing: pressed steel with painted finish, colour silver; rear casing, junction box and wall fixing: pressed steel with painted finish, colour grey.
• 3 x infrared bar, each rated 600 W.
• Pull cord switches for on/off control and selection of the 3 heat output settings (600/1200/1800 W).
• Wall-mounted installation using bracket provided as standard and adjustable through 22° so that the infrared rays can be directed at the point where heat is required; the fixture is made secure with a safety screw.
• Front casing: pressed steel with painted finish, colour silver; rear casing, junction box and wall fixing: pressed steel with painted finish, colour grey.
• 3 x infrared bar, each rated 600 W.
• Pull cord switches for on/off control and selection of the 3 heat output settings (600/1200/1800 W).
• Wall-mounted installation using bracket provided as standard and adjustable through 22° so that the infrared rays can be directed at the point where heat is required; the fixture is made secure with a safety screw.
Technical Data Sheet
-
Frequency (Hz)50-60
-
Insulation classI°
-
IPX4
-
Max absorbed current (A)7,8 A
-
Max absorbed power (W)1800
-
Voltage (V)230
-
Weight (Kg)1,6
-

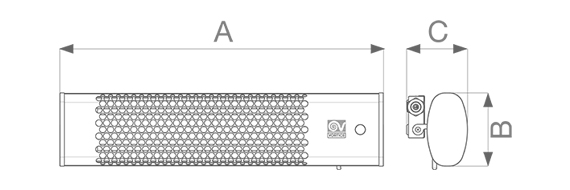

Size A (mm)540
-
Size B (mm)123
-
Size C (mm)100
Interested?
If you are interested in this product, contact us or locate your nearest Vortice dealer.
Documentation
You can see all the documentation relating to this product: price list, information booklet and wiring diagram.
