Description
Technical Data Sheet
-
Absorbed power - Cooling mode (W)1.540
-
Absorbed power - Heating mode (W)1.480
-
Additional refrigerant charge (g/m)20
-
Compressor typeInverter rotativo
-
Condensate draining pipe Ø (mm)15,6
-
Energy class in cooling modeA++
-
Energy class in heating modeA+
-
Frequency (Hz)50
-
Insulation classI°
-
Max height difference (m)10
-
Max lenght of cooling pipes (m) - I.U.30
-
Max lenght of cooling pipes with standard charge of refrigerant5
-
Max pipe lenght (m)25
-
Nominal current - Cooling mode (A)7,00
-
Nominal current - Heating mode (A)6,30
-
Number of phases (Ph)1
-
Refrigerant pipe Ø (inch)1/4"-1/2"
-
Refrigerant typeR32
-
Standard refrigerant charge (g)930
-
Voltage (V)220-240
-
Weight (Kg)40
-
Cooling capacity (BTU/h)17.981
-
Cooling capacity (W)5.270
-
COP (Coefficient of Performance)3,72
-
Flow rate in cooling mode O.U. (m³/h)1.800
-
Heating capacity (BTU/h)18.766
-
Heating capacity (W)5.500
-
Indoor operation temperature (cooling/heating) (°C)-15~52/-15~24
-
Outdoor operation temperature (cooling/heating) (°C)16~31
-
SCOP4,00
-
SEER6,30
-
Sound power Lw [dB(A)]63
-

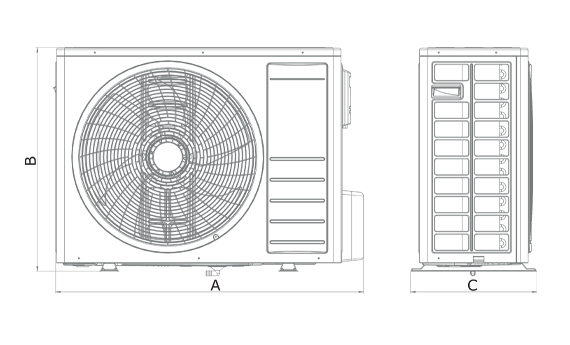

Size A (mm)963
-
Size B (mm)700
-
Size C (mm)396
Interested?
If you are interested in this product, contact us or locate your nearest Vortice dealer.
Documentation
You can see all the documentation relating to this product: price list, information booklet and wiring diagram.
