Description
Technical Data Sheet
-
Absorbed power - Cooling mode (W)1.010
-
Absorbed power - Heating mode (W)970
-
Additional refrigerant charge (g/m)20
-
Compressor typeInverter rotativo
-
Condensate draining pipe Ø (mm)15,6
-
Energy class in cooling modeA++
-
Energy class in heating modeA+
-
Frequency (Hz)50
-
Insulation classI°
-
Max height difference (m)10
-
Max lenght of cooling pipes (m) - I.U.20
-
Max lenght of cooling pipes with standard charge of refrigerant5
-
Max pipe lenght (m)20
-
Nominal current - Cooling mode (A)4,80
-
Nominal current - Heating mode (A)4,40
-
Number of phases (Ph)1
-
Refrigerant pipe Ø (inch)1/4"-3/8"
-
Refrigerant typeR32
-
Standard refrigerant charge (g)780
-
Voltage (V)220-240
-
Weight (Kg)30
-
Cooling capacity (BTU/h)11.942
-
Cooling capacity (W)3.500
-
COP (Coefficient of Performance)3,76
-
Flow rate in cooling mode O.U. (m³/h)1.800
-
Heating capacity (BTU/h)12.454
-
Heating capacity (W)3.650
-
Indoor operation temperature (cooling/heating) (°C)-15~52/-15~24
-
Outdoor operation temperature (cooling/heating) (°C)16~31
-
SCOP4,00
-
SEER6,50
-
Sound power Lw [dB(A)]62
-

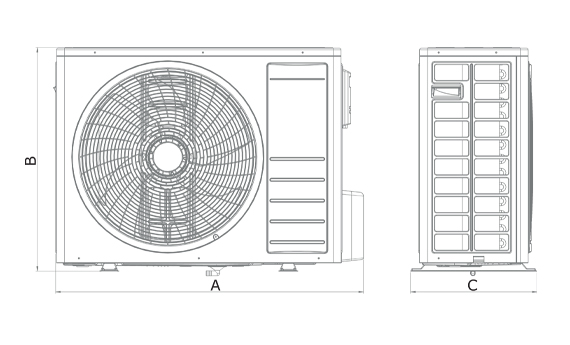

Size A (mm)829
-
Size B (mm)541
-
Size C (mm)326
