Code 65331

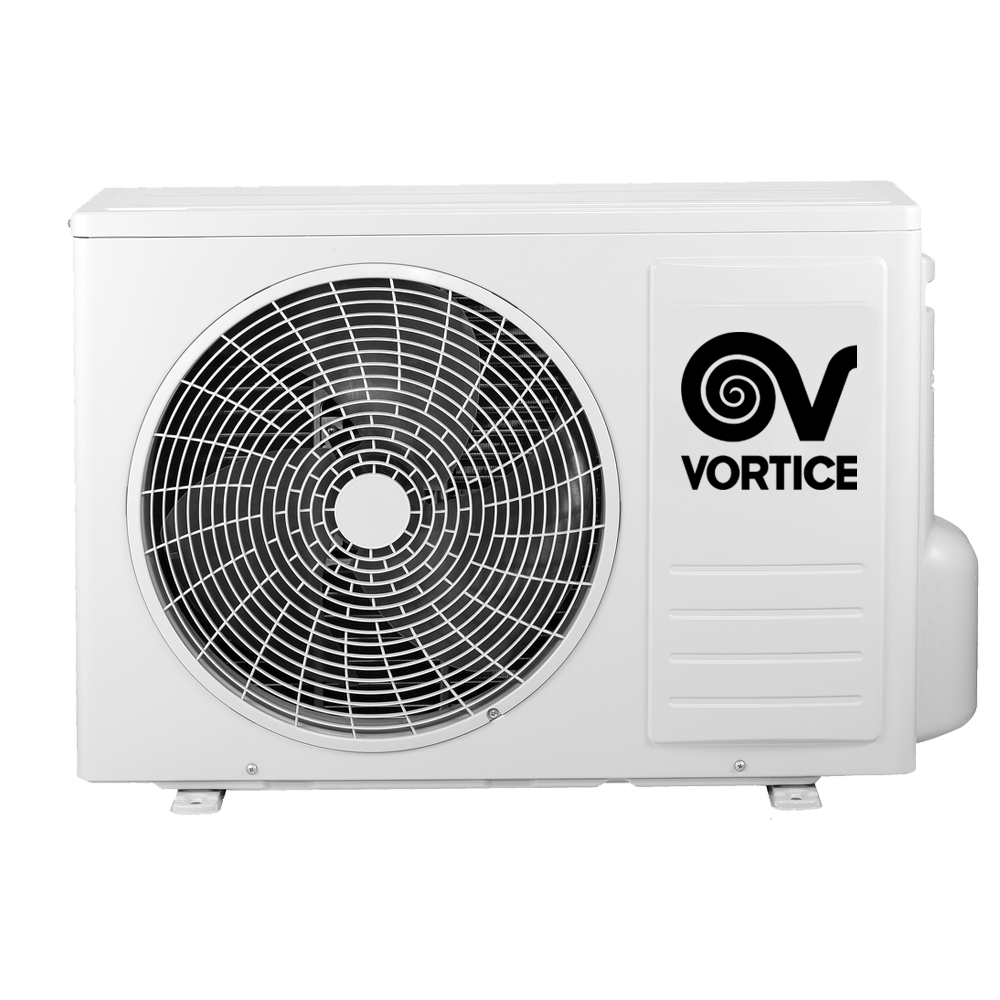

VORT ARTIK EVO 9 UE

Accessorio_1

Description

Read full descriptionClose description

Technical Data Sheet

  • Absorbed power - Cooling mode (W)
    750
  • Absorbed power - Heating mode (W)
    745
  • Additional refrigerant charge (g/m)
    20
  • Compressor type
    Inverter rotativo
  • Condensate draining pipe Ø (mm)
    15,6
  • Energy class in cooling mode
    A++
  • Energy class in heating mode
    A+
  • Frequency (Hz)
    50
  • Insulation class
    I°
  • Max height difference (m)
    10
  • Max lenght of cooling pipes (m) - I.U.
    20
  • Max lenght of cooling pipes with standard charge of refrigerant
    5
  • Max pipe lenght (m)
    20
  • Nominal current - Cooling mode (A)
    3,60
  • Nominal current - Heating mode (A)
    3,40
  • Number of phases (Ph)
    1
  • Refrigerant pipe Ø (inch)
    1/4"-3/8"
  • Refrigerant type
    R32
  • Standard refrigerant charge (g)
    520
  • Voltage (V)
    220-240
  • Weight (Kg)
    29
  • Cooling capacity (BTU/h)
    8.871
  • Cooling capacity (W)
    2.600
  • COP (Coefficient of Performance)
    3,76
  • Flow rate in cooling mode O.U. (m³/h)
    1.800
  • Heating capacity (BTU/h)
    9.554
  • Heating capacity (W)
    2.800
  • Indoor operation temperature (cooling/heating) (°C)
    -15~52/-15~24
  • Outdoor operation temperature (cooling/heating) (°C)
    16~31
  • SCOP
    4,00
  • SEER
    6,70
  • Sound power O.U. [dB(A)]
    62

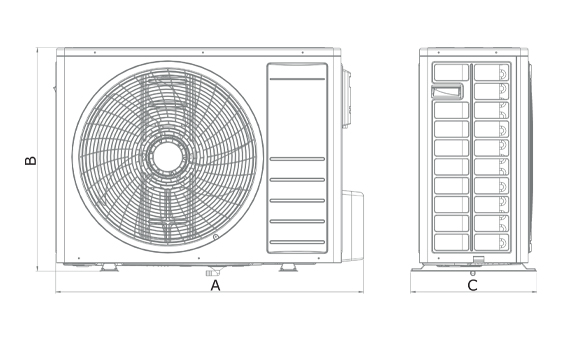

  • Size A (mm)
    829
  • Size B (mm)
    541
  • Size C (mm)
    326
Accessorio_2
Interested?
If you are interested in this product, contact us or locate your nearest Vortice dealer.
Documentation
You can see all the documentation relating to this product: price list, information booklet and wiring diagram.
