Description
• Front and rear panels, top and bottom grilles made of steel with scratch-resistant paint finish, colour grey.
• Flanks made of self-extinguishing plastic rated V0, colour grey.
• 3-speed shaded pole motor with thermal overload protection, shaft turning in self-aligning and self-lubricating bushings and coupled to a centrifugal rotor moulded from thermoplastic resin.
• Heating element protected by limiter with PTC sensor, manual reset.

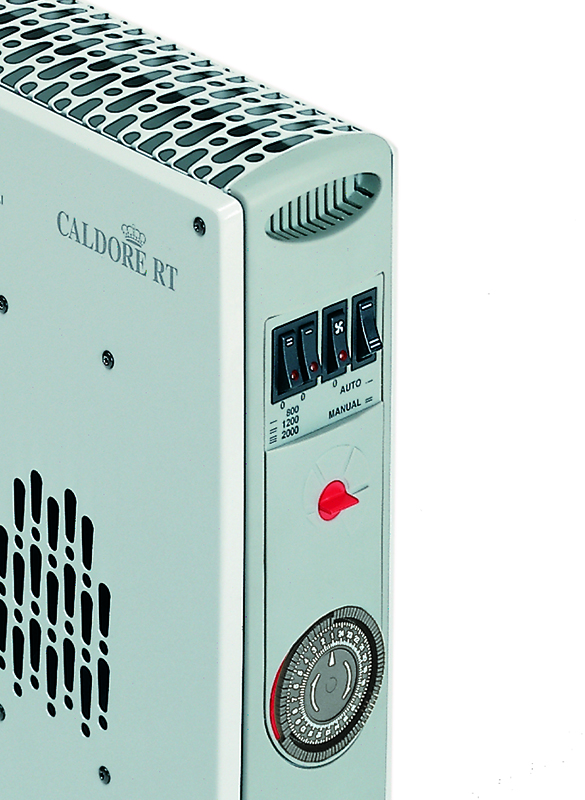

• Luminous switches for on/off control and selection of the 3 heat output settings (800/1200/2000 W).
• Manually adjustable room thermostat with antifreeze function guaranteeing automatic activation of the heater whenever ambient temperature drops below 5 °C.
• Adjustable 24-hour timer for programming on and off periods, minimum divisions of 15’.
• PVC power cord with moulded plug.
• Built-in recoil cord winder.
• 4 stabilizer feet with special non-slip rubber pads.
• IMQ safety certification.
• Flanks made of self-extinguishing plastic rated V0, colour grey.
• 3-speed shaded pole motor with thermal overload protection, shaft turning in self-aligning and self-lubricating bushings and coupled to a centrifugal rotor moulded from thermoplastic resin.
• Heating element protected by limiter with PTC sensor, manual reset.
• Luminous switches for on/off control and selection of the 3 heat output settings (800/1200/2000 W).
• Manually adjustable room thermostat with antifreeze function guaranteeing automatic activation of the heater whenever ambient temperature drops below 5 °C.
• Adjustable 24-hour timer for programming on and off periods, minimum divisions of 15’.
• PVC power cord with moulded plug.
• Built-in recoil cord winder.
• 4 stabilizer feet with special non-slip rubber pads.
• IMQ safety certification.
Certifications
-
IMQ
-
Download
CE
-
CB TEST CERTIFICATE
Technical Data Sheet
-
Frequency (Hz)50
-
Insulation classII°
-
Max absorbed current (A)8,7
-
Max absorbed power (W)2000
-
Max absorbed power at Max speed (W)2000
-
Voltage (V)230
-
Weight (Kg)5,3
-
Adaptive starting controlNO
-
Appliances with stand-by modeno
-
Auxiliary electricity consumption at Min heating output - elmin (kW)0,018
-
Auxiliary electricity consumption at nominal heating output - elmax (kW)0,018
-
Auxiliary electricity consumption in stand-by - elSB (kW)0,018
-
Continuous thermal power - Pmax, C (kW)2
-
Control with black globe thermometerNO
-
Control with operating time limitationNO
-
Control with remote optionNO
-
Min thermal power - PMin (kW)0,8
-
Nominal thermal power - Pnom (kW)2
-
Pilot flame storage appliancesno
-
Room temperature control with open window detectionNO
-
Room temperature control with presence detectionNO
-
Seasonal energy efficiency (%)36
-
Single phase heating output without room temperature controlNO
-
Thermal power with electronic control of the room temperatureNO
-
Thermal power with electronic control of the room temperature and daily timerNO
-
Thermal power with electronic control of the room temperature and weekly timerNO
-
Thermal power with room temperature control by mechanical thermostatSI
-
Thermal power with two or more manual phases without room temperature controlNO
-
Size A (mm)685
-
Size B (mm)415
-
Size C (mm)200
-
Size D (mm)100
Interested?
If you are interested in this product, contact us or locate your nearest Vortice dealer.
Documentation
You can see all the documentation relating to this product: price list, information booklet and wiring diagram.
