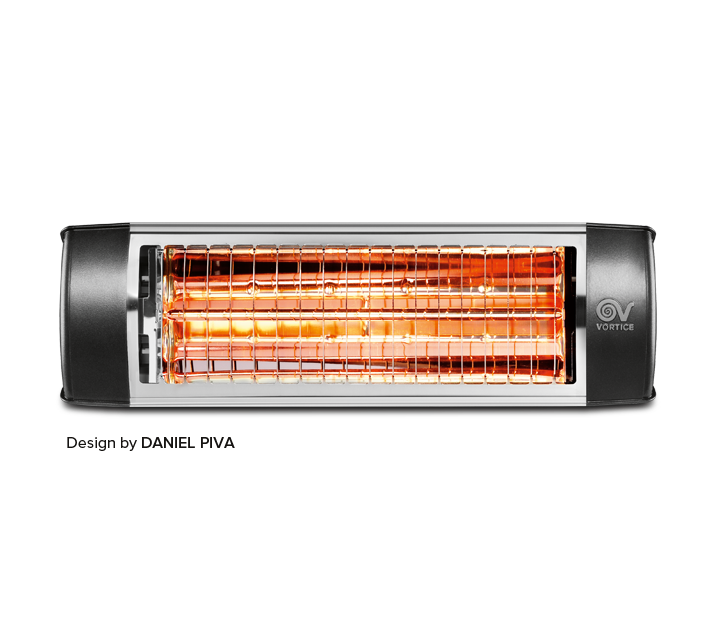

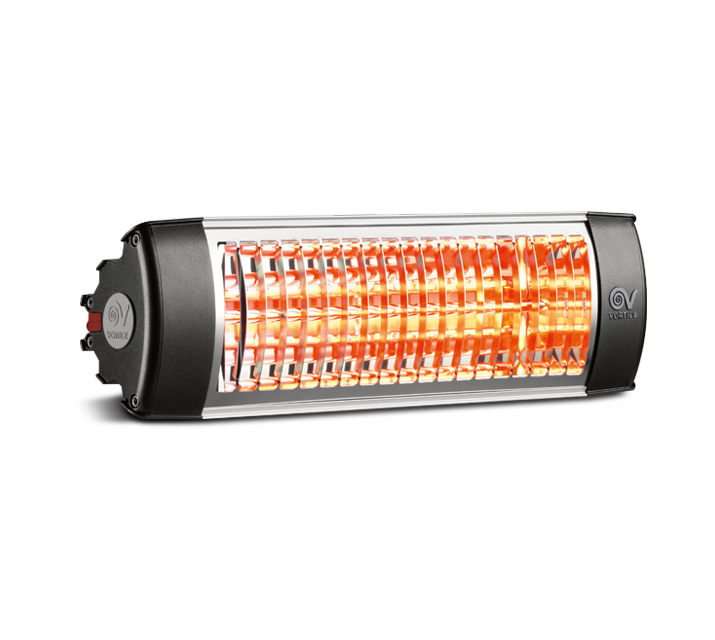

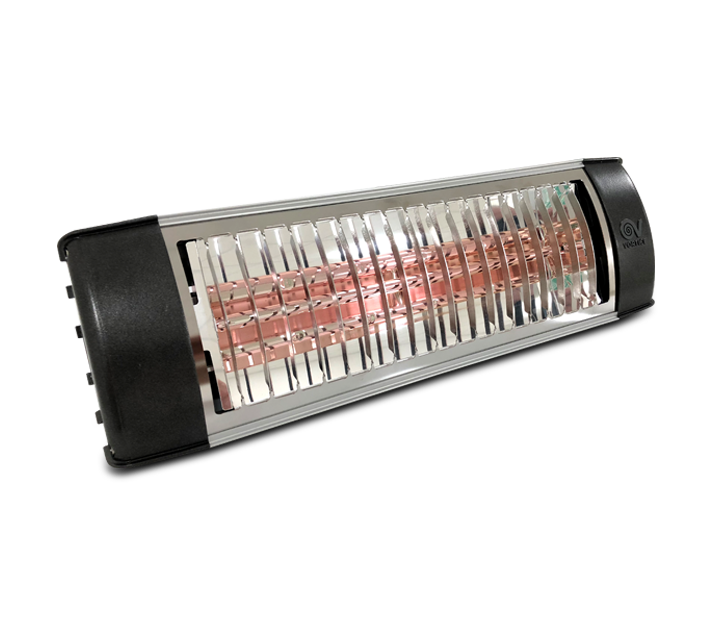

Description

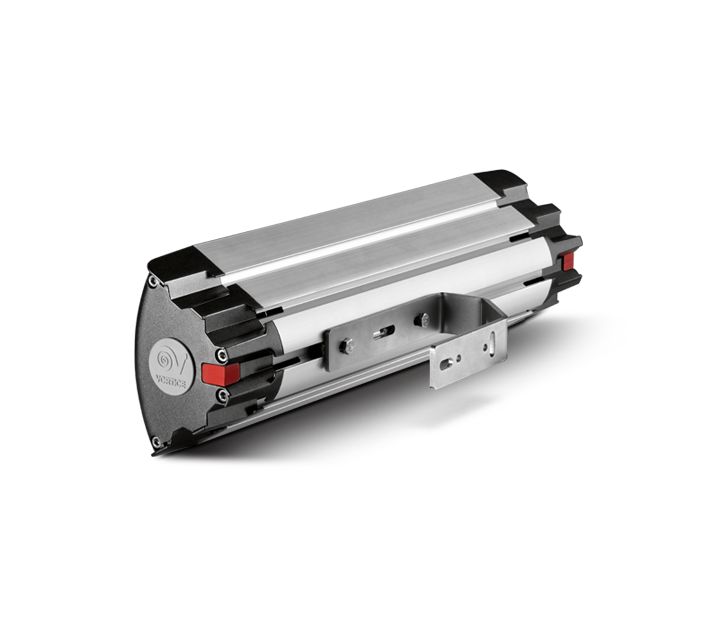

• Anodized extruded aluminum casing.

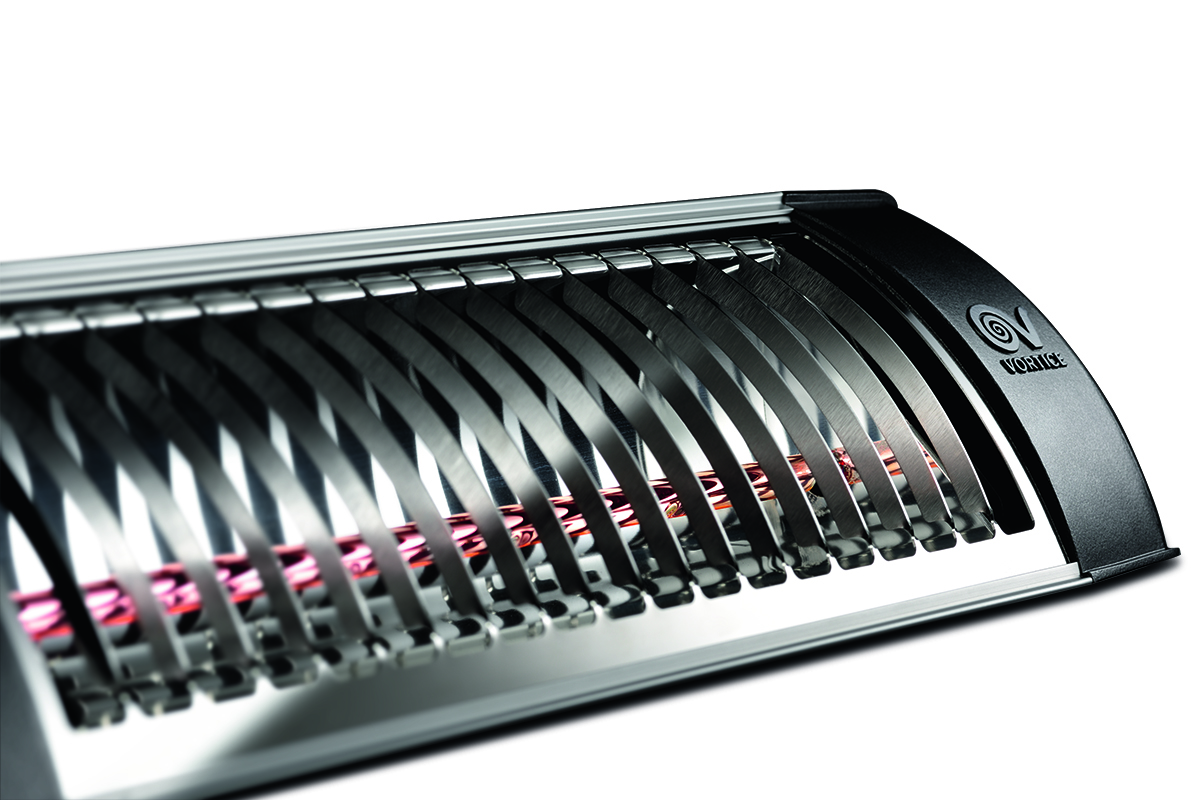

• Grid in electropolished stainless steel sheet.

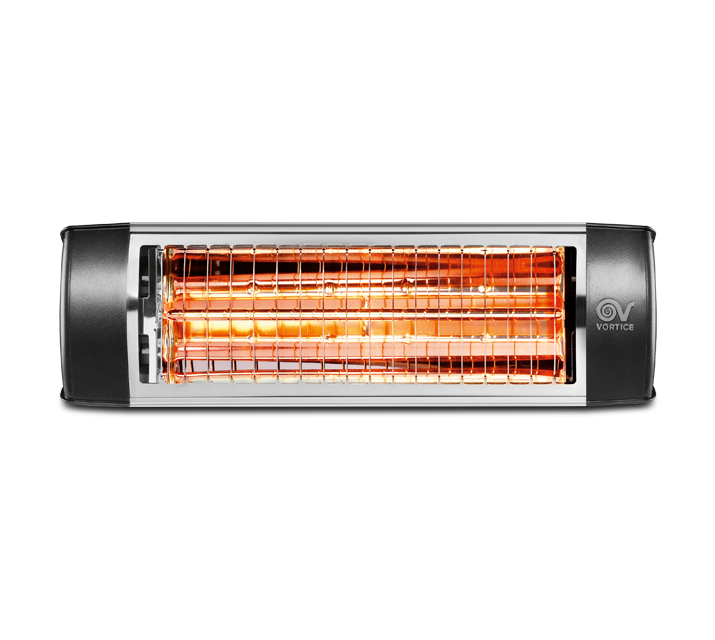

• Infrared lamp (IR), with adjustable power, according to the needs, up to the maximum value of 1.500 W, characterized by a high thermal output and high ignition speed (over 90% of the maximum peak of radiated power is reached in less than 1 second) and by a long service life (5.000 h).

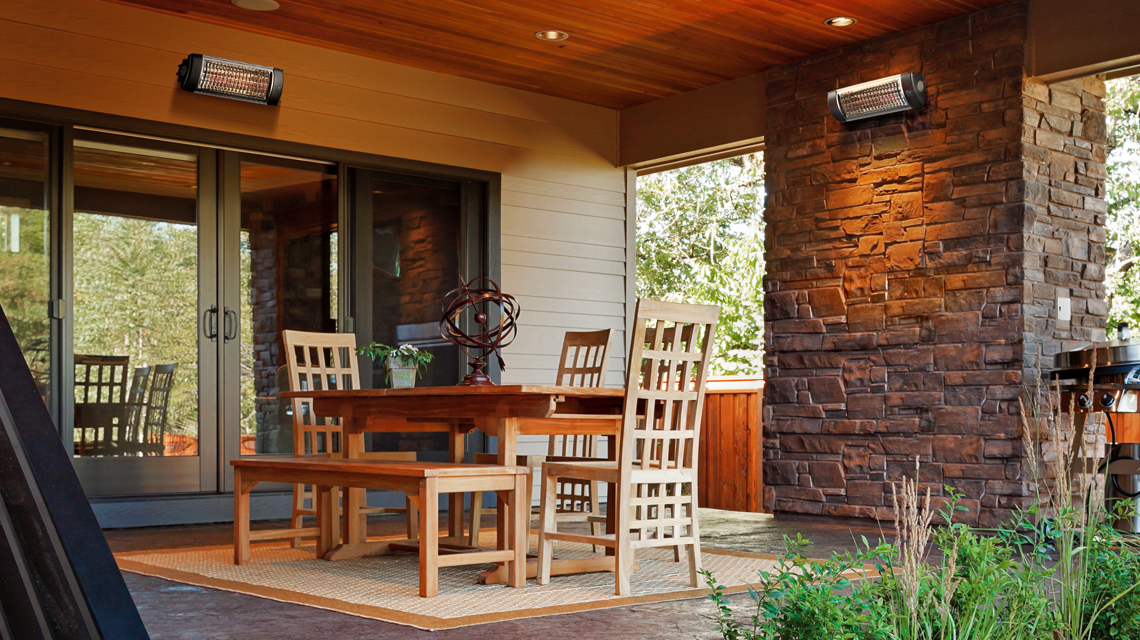

• Bracket in bent sheet metal for wall / ceiling mounting, designed to ensure the firm anchoring of the product to the target surface, also allowing for correct inclination.

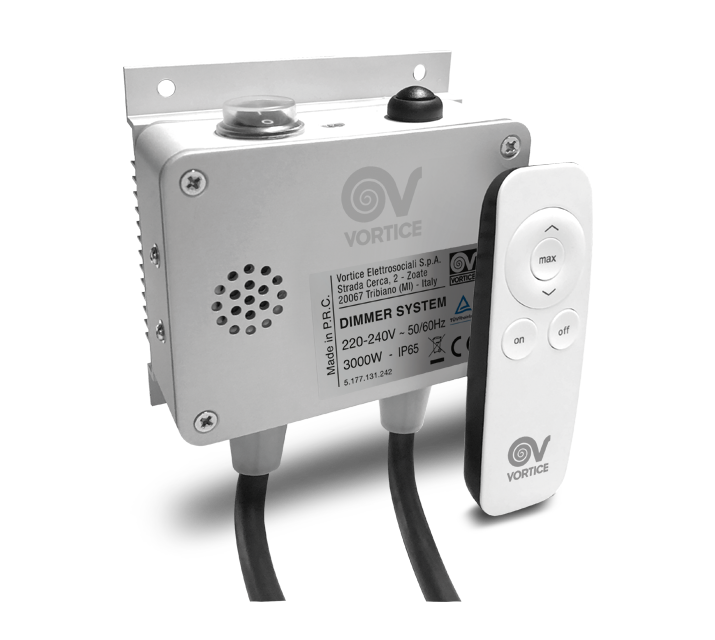

• Possibility of connection to an external dimmer equipped with an IR remote control (supplied as an option), for the fine adjustment of the radiated power according to the specific needs.
• Terminal block for electrical connection housed in the left side.
• Heating power adjustable by means of a dimmer according to the specific needs.
• Schuko plug supplied with the product, to be wired if necessary.
• Grid in electropolished stainless steel sheet.
• Infrared lamp (IR), with adjustable power, according to the needs, up to the maximum value of 1.500 W, characterized by a high thermal output and high ignition speed (over 90% of the maximum peak of radiated power is reached in less than 1 second) and by a long service life (5.000 h).
• Bracket in bent sheet metal for wall / ceiling mounting, designed to ensure the firm anchoring of the product to the target surface, also allowing for correct inclination.
• Possibility of connection to an external dimmer equipped with an IR remote control (supplied as an option), for the fine adjustment of the radiated power according to the specific needs.
• Terminal block for electrical connection housed in the left side.
• Heating power adjustable by means of a dimmer according to the specific needs.
• Schuko plug supplied with the product, to be wired if necessary.
Certifications
-
IMQ
-
Download
CE
-
CB TEST CERTIFICATE
Technical Data Sheet
-
Frequency (Hz)50-60
-
Insulation classI°
-
IP65
-
Max absorbed current (A)6,3
-
Nominal power (W)1500
-
Voltage (V)220-240
-
Weight (Kg)2,3
-
Adaptive starting controlNO
-
Appliances with stand-by modeno
-
Auxiliary electricity consumption at Min heating output - elmin (kW)NO
-
Auxiliary electricity consumption at nominal heating output - elmax (kW)NO
-
Auxiliary electricity consumption in stand-by - elSB (kW)NO
-
Continuous thermal power - Pmax, C (kW)1,5
-
Control with black globe thermometerNO
-
Control with operating time limitationNO
-
Control with remote optionSI
-
Min thermal power - PMin (kW)1,5
-
Nominal thermal power - Pnom (kW)1,5
-
Pilot flame storage appliancesno
-
Room temperature control with open window detectionNO
-
Room temperature control with presence detectionSI
-
Seasonal energy efficiency (%)35
-
Single phase heating output without room temperature controlNO
-
Thermal power with electronic control of the room temperatureSI
-
Thermal power with electronic control of the room temperature and daily timerNO
-
Thermal power with electronic control of the room temperature and weekly timerNO
-
Thermal power with room temperature control by mechanical thermostatNO
-
Thermal power with two or more manual phases without room temperature controlNO
* Technical datas above refer to the product powered at 50 Hz.
For values for 60 Hz power supply, please contact the VORTICE Presales Service at prevendita@vortice-italy.com.
-

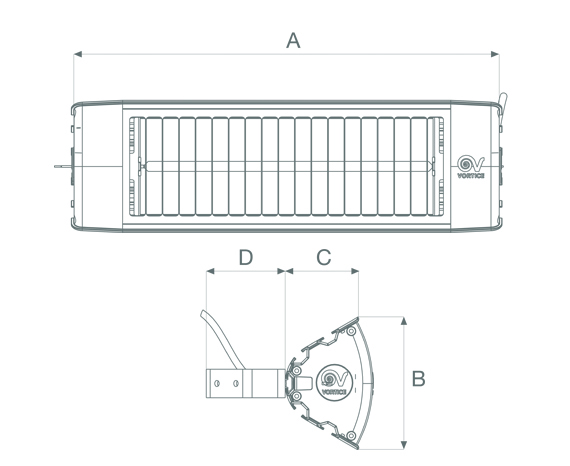

Size A (mm)453
-
Size B (mm)138
-
Size C (mm)93
-
Size D (mm)83
