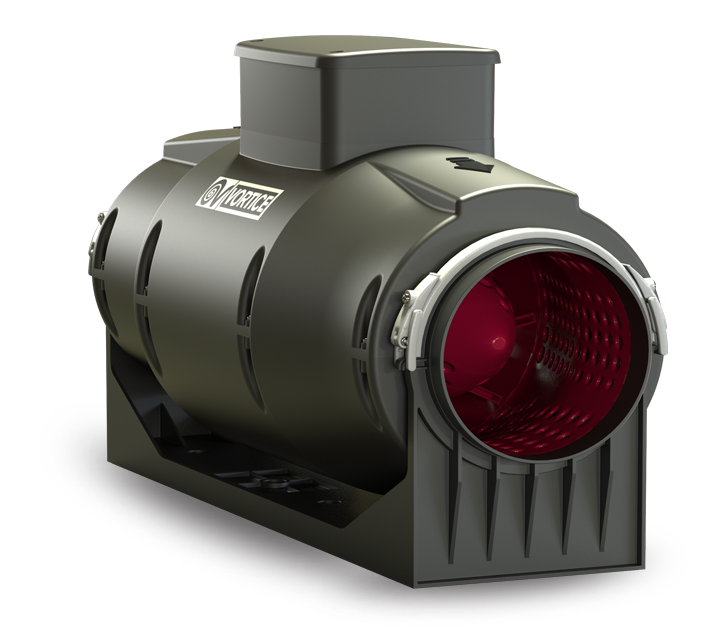

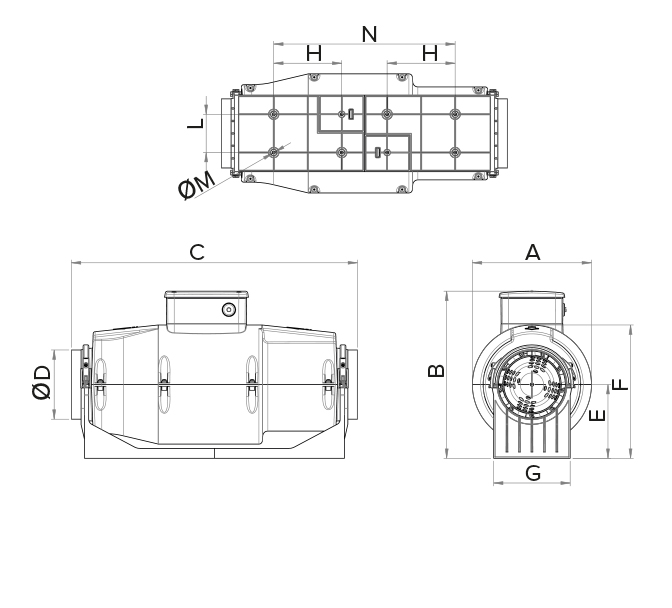

LINEO 160 T QUIET

Description

• Enclosures made of fire resistant plastic resin, E2 class, according with ISO EN 11925-2: 2010, in areas close to motor and electrical components.
• Casing integrating a sound-absorbing coating, optimized to minimize sound emissions radiated into the environment and transmitted through exhaust and supply ducts.
• Nominal diameter 160 mm.
• Induction motor, thermally protected, with shaft mounted on ball bearing supports, coupled with a centrifugal impeller.
• Equipped with an electronic timer for automatic operation at maximum speed, which can be set in the 3-20' range at the installation (default setting 3').
• High water resistance: IPX5 (if installed in a duct).
• Speed adjustable through Vortice speed devices.

Read full descriptionClose description

Certifications

CE
Download
UKCA
CB TEST CERTIFICATE

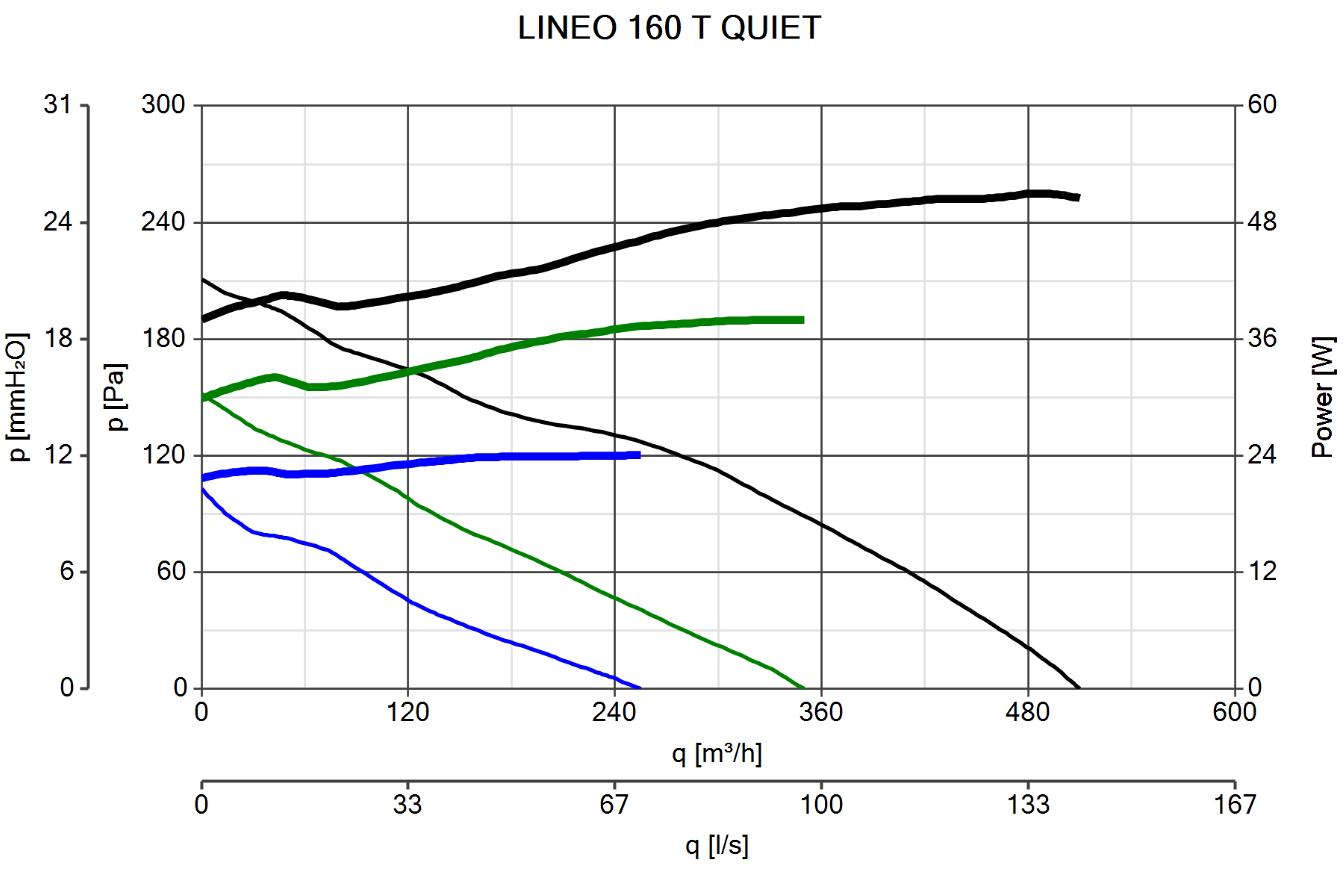

Technical Data Sheet

Frequency (Hz)

50-60
Insulation class

II°
IP

45
Max absorbed current at maMinx speed at 60 Hz (A)

0,14
Max absorbed current at Max speed (A)

0,22
Max absorbed current at Max speed at 60 Hz (A)

0,24
Max absorbed current at Mid speed (A)

0,17
Max absorbed current at Mid speed at 60 Hz (A)

0,18
Max absorbed current at Min speed (A)

0,14
Max absorbed power at Max speed (W)

50
Max absorbed power at Max speed at 60 Hz (W)

58
Max absorbed power at Mid speed (W)

37
Max absorbed power at Mid speed at 60 Hz (W)

38
Max absorbed power at Min speed at 60 Hz (W)

23
Max ambient temperature for continuous operation (°C)

55
Max continuous operation room temperature at 60 Hz (°C)

50
Nominal diameter (mm)

150
Power absorbed at 1st speed (W)

24
Voltage (V)

220-240
Weight (Kg)

5,4
Airflow at 1st speed (l/s)

70,8
Airflow at 1st speed (m³/h)

255
Breakout sound power LWA at Max speed [dB (A)]

50,7
Breakout sound power LWA at Mid speed [dB (A)]

43
Breakout sound power LWA at Min speed [dB (A)]

34,6
Breakout sound pressure at 3m at Max speed Lp [dB (A)]

30,2
Breakout sound pressure at 3m at Mid speed Lp [dB (A)]

22,5
Breakout sound pressure at 3m at Min speed Lp [dB (A)]

14,1
Max airflow at Max speed (l/s)

141,7
Max airflow at Max speed (m³/h)

510
Max airflow at Max speed at 60 Hz (l/s)

134,7
Max airflow at Max speed at 60 Hz (m³/h)

485
Max airflow at Mid speed (m³/h)

350
Max airflow at Mid speed at 60 Hz (l/s)

90,3

Max airflow at Mid speed at 60 Hz (m³/h)

325
Max airflow at Min speed (l/s)

97,2
Max airflow at Min speed at 60 Hz (l/s)

66,7
Max airflow at Min speed at 60 Hz (m³/h)

240
Max pressure at 60 Hz (mmH2O)

24,5
Max pressure at Max speed (mmH20)

21,5
Max pressure at Max speed (Pa)

210,9
Max pressure at Max speed at 60Hz (Pa)

240,3
Max pressure at Mid speed (mmH2O)

15,5
Max pressure at Mid speed (Pa)

152
Max pressure at Mid speed at 60Hz (mmH2O)

15,3
Max pressure at Mid speed at 60Hz (Pa)

150
Max pressure at Min speed at 60Hz (mmH2O)

8,6
Max pressure at Min speed at 60Hz (Pa)

84,3
Max RPM

2030
Max speed at 60 Hz (Rpm)

1935
Mid speed at 60 Hz (Rpm)

1285
Min RPM

1040
Min speed at 60 Hz (Rpm)

980
Potenza sonora at supply side at Min speed LWA [dB (A)]

42,1
Pressure at 1st speed (mmH20)

10,5
Pressure at 1st speed (Pa)

103
RPM at Mid speed

1430
Sound power at extract side at Max speed LWA [dB (A)]

60,4
Sound power at extract side at Mid speed LWA [dB (A)]

50
Sound power at extract side at Min speed LWA [dB (A)]

41,6
Sound power at supply side at Max speed LWA [dB (A)]

59,5
Sound power at supply side at Mid speed LWA [dB (A)]

49,4
Sound pressure at extract side at 3m at Max speed Lp [dB (A)]

42,9
Sound pressure at extract side at 3m at Mid speed Lp [dB (A)]

32,5
Sound pressure at extract side at 3m at Min speed Lp [dB (A)]

24,1
Sound pressure at suply side at 3m at Max speed Lp [dB (A)]

42
Sound pressure at suply side at 3m at Mid speed Lp [dB (A)]

31,9
Sound pressure at suply side at 3m at Min speed Lp [dB (A)]

24,6

* Technical datas above refer to the product powered at 50 Hz.
For values for 60 Hz power supply, please contact the VORTICE Presales Service at prevendita@vortice-italy.com.
