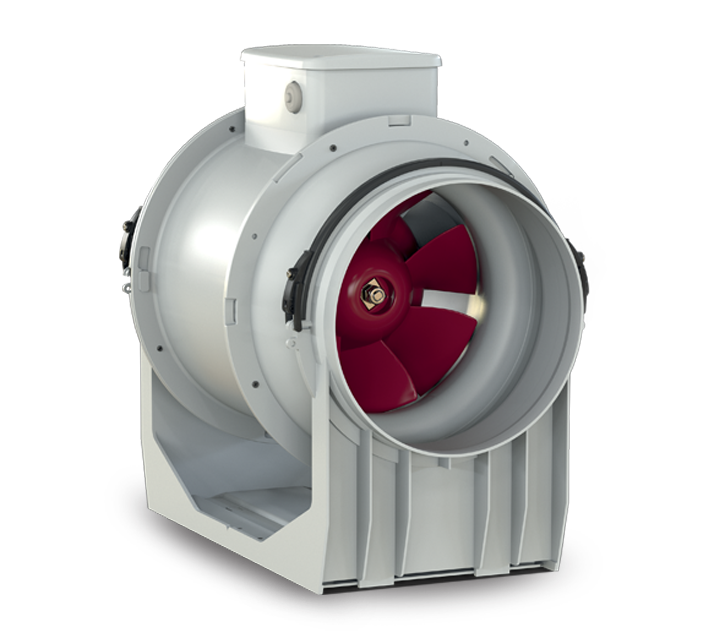

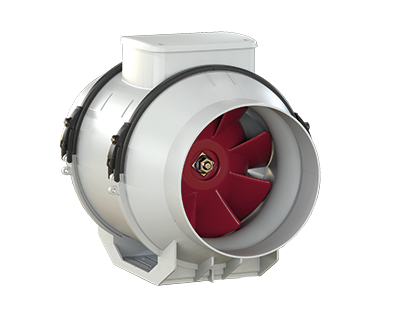

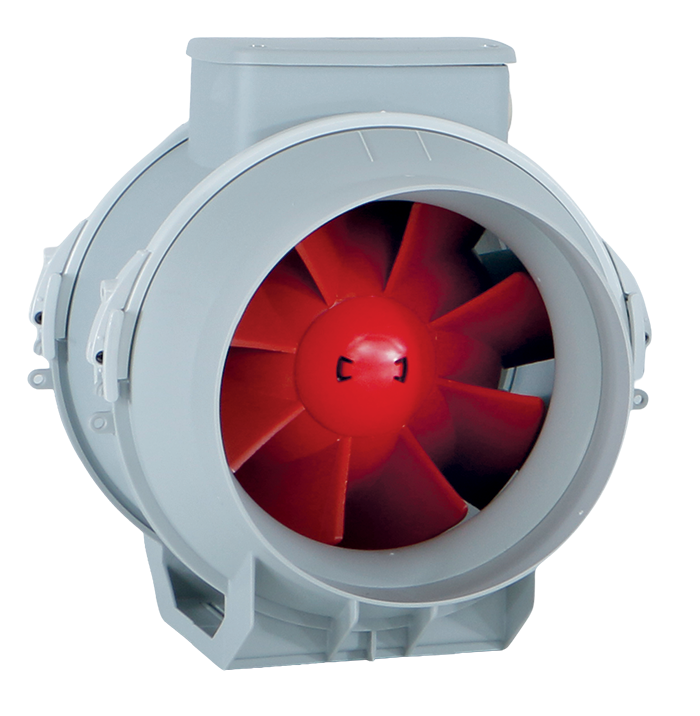

Description
• Enclosures made of fire resistant plastic resin, E2 class, according with ISO EN 11925-2: 2010, in areas close to motor and electrical components.
• Nominal diameter 160 mm.
• Induction motor, thermally protected, with shaft mounted on ball bearing supports, coupled with a centrifugal impeller.
• Equipped with an electronic timer for automatic operation at maximum speed, which can be set in the 3-20' range at the installation (default setting 3').
• High water resistance: IPX5 (if installed in a duct).
• Speed adjustable through Vortice speed devices.
• Nominal diameter 160 mm.
• Induction motor, thermally protected, with shaft mounted on ball bearing supports, coupled with a centrifugal impeller.
• Equipped with an electronic timer for automatic operation at maximum speed, which can be set in the 3-20' range at the installation (default setting 3').
• High water resistance: IPX5 (if installed in a duct).
• Speed adjustable through Vortice speed devices.
Certifications
-
Download
CE
-
G-Mark
-
UKCA
-
CB TEST CERTIFICATE
Technical Data Sheet
-
Frequency (Hz)50
-
Insulation classII°
-
IP44
-
Max absorbed current at Max speed (A)0,26
-
Max absorbed current at Min speed (A)0,18
-
Max absorbed power at Max speed (W)58
-
Max ambient temperature for continuous operation (°C)60
-
Power absorbed at 1st speed (W)40
-
Voltage (V)220-240
-
Weight (Kg)2,8
-
Airflow at 1st speed (l/s)106,9
-
Airflow at 1st speed (m³/h)385
-
Breakout sound power LWA at Max speed [dB (A)]55,6
-
Breakout sound power LWA at Min speed [dB (A)]46,3
-
Breakout sound pressure at 3m at Max speed Lp [dB (A)]35,1
-
Breakout sound pressure at 3m at Min speed Lp [dB (A)]25,7
-
Max airflow at Max speed (l/s)152,8
-
Max airflow at Max speed (m³/h)550
-
Max pressure at Max speed (mmH20)27
-
Max pressure at Max speed (Pa)264,9
-
Max RPM2100
-
Min RPM1580
-
Potenza sonora at supply side at Min speed LWA [dB (A)]56,6
-
Pressure at 1st speed (mmH20)21
-
Pressure at 1st speed (Pa)206
-
Sound power at extract side at Max speed LWA [dB (A)]65,9
-
Sound power at extract side at Min speed LWA [dB (A)]56,2
-
Sound power at supply side at Max speed LWA [dB (A)]64,9
-
Sound pressure at extract side at 3m at Max speed Lp [dB (A)]48,4
-
Sound pressure at extract side at 3m at Min speed Lp [dB (A)]38,7
-
Sound pressure at suply side at 3m at Max speed Lp [dB (A)]47,4
-
Sound pressure at suply side at 3m at Min speed Lp [dB (A)]39,1
-

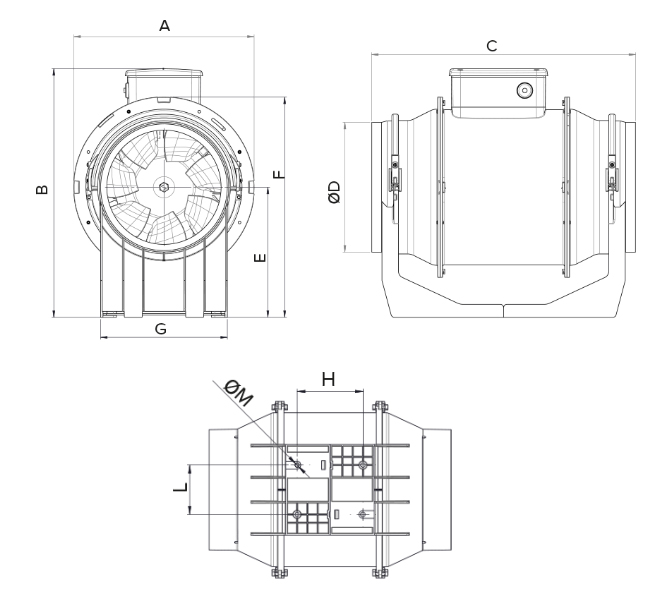

Size A (mm)214,5
-
Size B (mm)234
-
Size C (mm)272,5
-
Size D (mm)156
-
Size E (mm)112,5
-
Size F (mm)212
-
Size G (mm)110
-
Size H (mm)80
-
Size L (mm)60
-
Size M (mm)5,5
Interested?
If you are interested in this product, contact us or locate your nearest Vortice dealer.
Documentation
You can see all the documentation relating to this product: price list, information booklet and wiring diagram.
Accessories
Discover accessories related to the product
IREM D
Electronic speed controller for installation in Standard DIN box. Maximum load: 1.0 A.

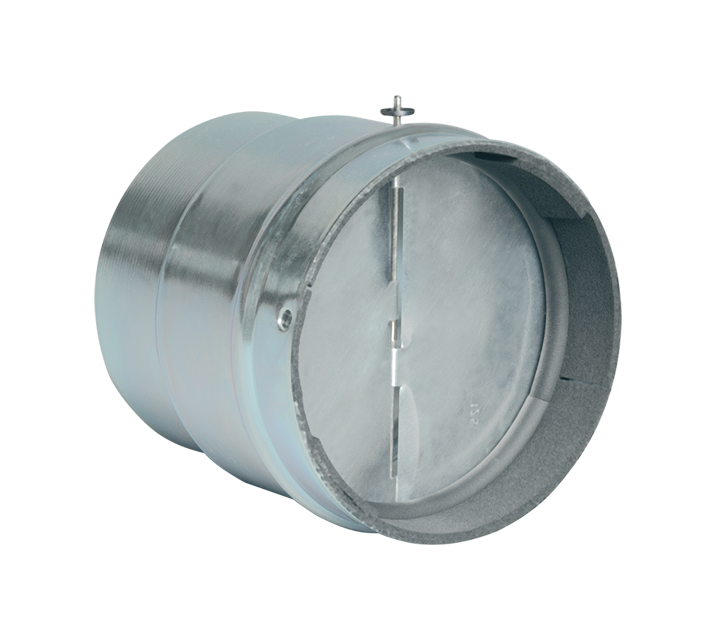

IN-LINE-S 160
Galvanized steel sheet backdraught shutter with aluminium fins and return springs to prevent air back-draughts or penetration of rain when the unit is turned off.
